Chapter 6 Control Modes of Operation|ASDA-A&A+ Series
6-48 Revision April 2009

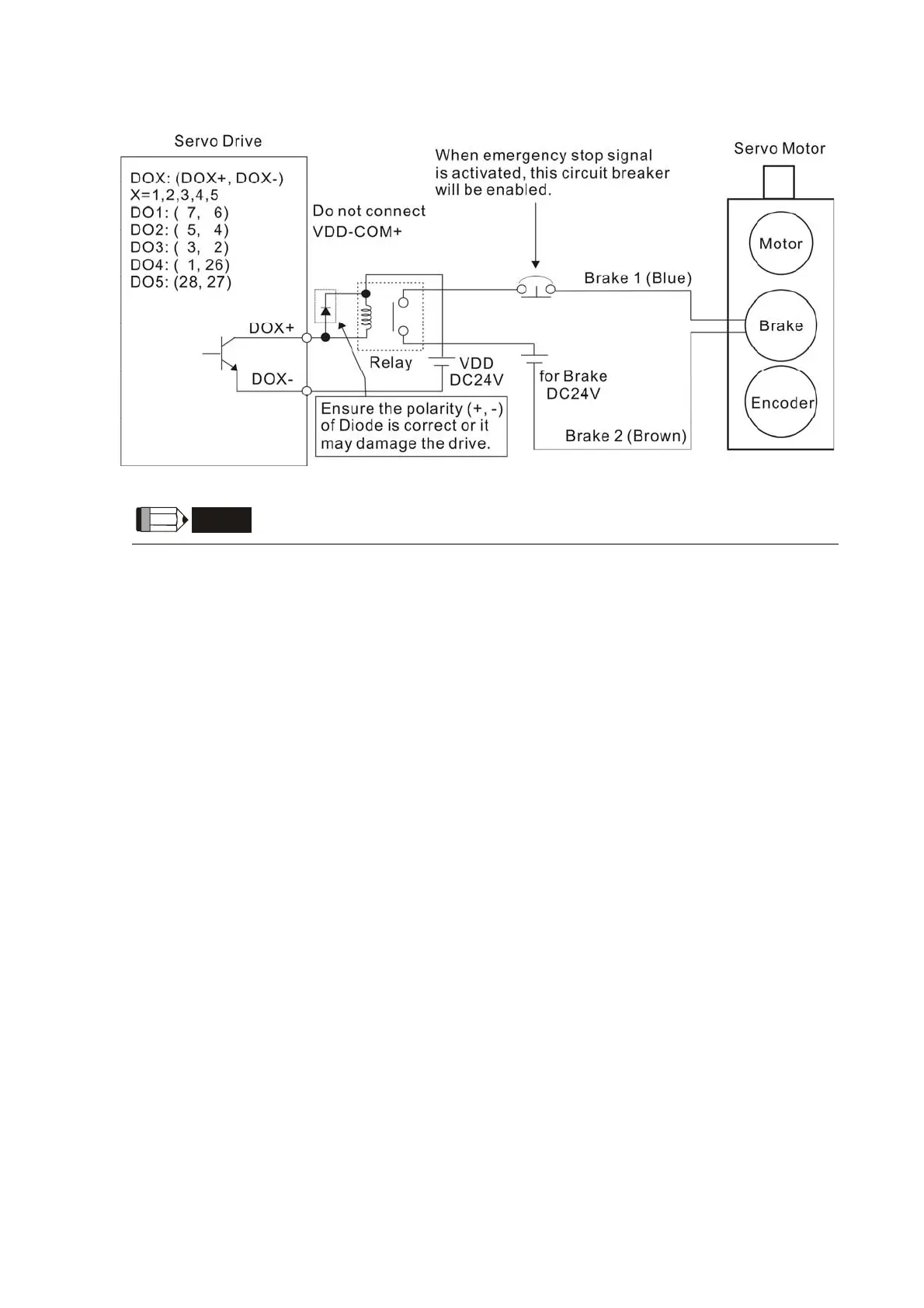

Electromagnetic Brake Wiring Diagram
NOTE
1) Please refer to Chapter 3 Connections and Wiring for more wiring information.
2) The BRKR signal is used to control the brake operation. The VDD DC24V power supply of the
servo drive can be used to power the relay coil (Relay). When BRKR signal is ON, the motor
brake will be activated.
3) Please note that the coil of brake has no polarity.
4) The power supply for brake is DC24V. Never use it for VDD, the +24V source voltage.
