Chapter 11 Specifications|ASDA-A&A+ Series
11-22 Revision April 2009

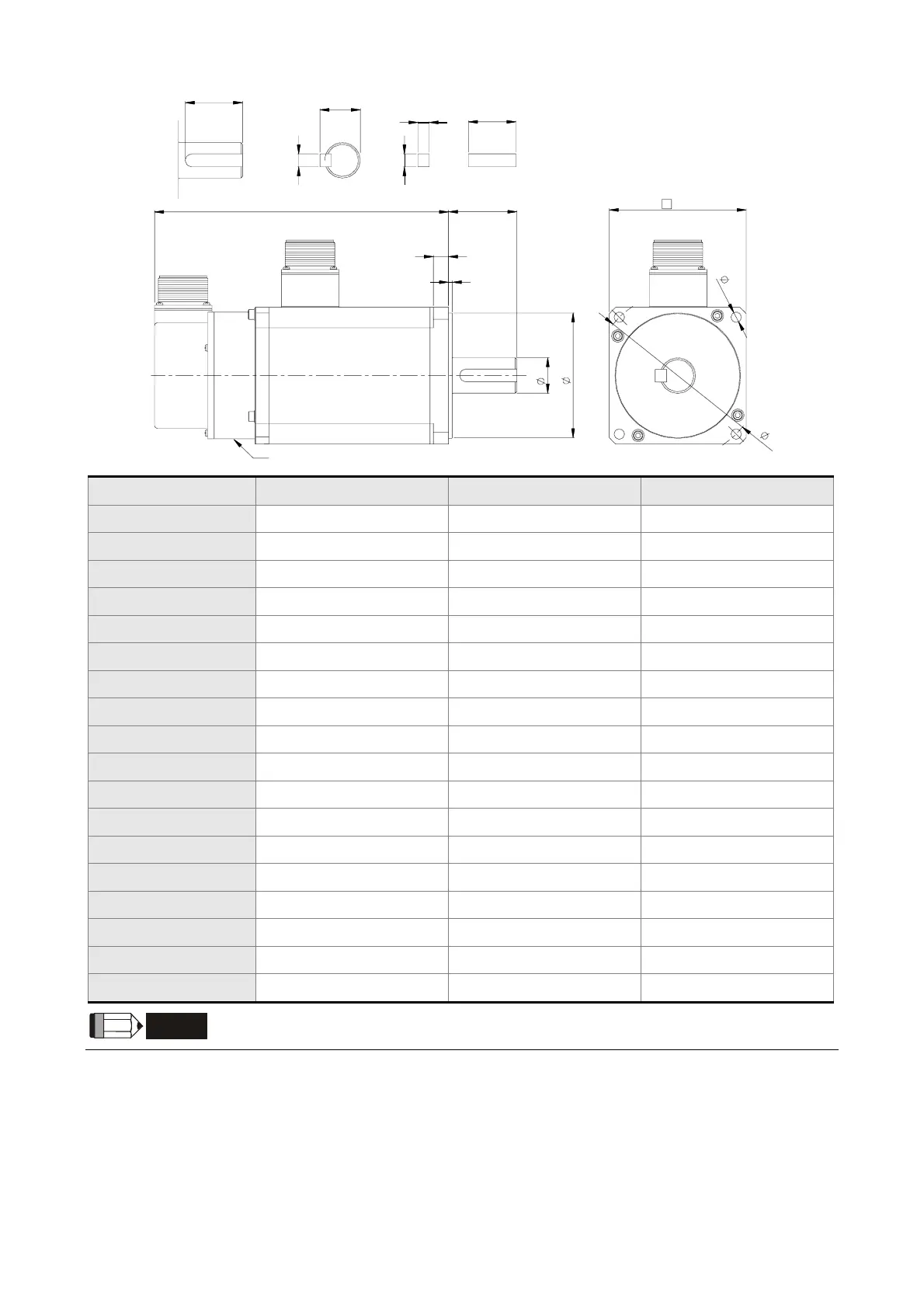

BRAKE
J
F
L
B
A
G
H
I
C
E
D
P
N
M
K
K
BRAKE
F
L
I
H
G
A
B
C
E
D
P
M
N
J
Model ASMT10L250 ASMT20L250 ASMT30L250
A 100 100 130
B 9 9 9
C 115 +0.2 –0.2 115 +0.2 –0.2 145 +0.2 –0.2
D 22h6 +0.0 –0.013 22h6 +0.0 –0.013 24h6 +0.0 –0.013
E 95h7 +0.0 –0.035 95h7 +0.0 -0.035 110h7 +0.0 –0.035
F (without brake) 158 194 173
F (with brake) 190 226 211
G 45 55 55
H 17 17 15
I 7 7 4
J 34 44 44
K 25 +0.0 –0.2 25 +0.0 –0.2 27 +0.0 –0.2
L 8h9 +0.0-0.036 8h9 +0.0 –0.036 8h9 -0.0-0.036
M 8 8 8
N 7 7 7
P 30 40 40
Weight (without brake) 4.7 (10.36) 6.7 (12.57) 8.0 (17.64)
Weight (with brake) 6.3 (13.89) 8.3 (16.09) 10.7 (23.59)
NOTE
1) Dimensions are in millimeters. Weights are in kilograms (kg) and (pounds (lbs)).
2) Dimensions and weights of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for model
explanation.)
4) Actual measured values are in metric units. Dimensions and weights in (imperial units) are for reference
only.
