Delta Electronics ASDA-A Series User Manual

Chapter 12 Application Examples|ASDA-A&A+ Series
12-2 Revision April 2009
 Other relevant parameters: P1-34, P1-35, P1-36 (Acceleration/Deceleration time setting); P1-48, P1-49
(Speed setting of high/low speed Homing)
Operation
 Re-start the power to be ON again.
 After Servo ready is completed, activate the drive to be Servo ON. Then, the system will automatically
complete home operation.
 When home operation is completed (Home ready), then can perform the position control function.

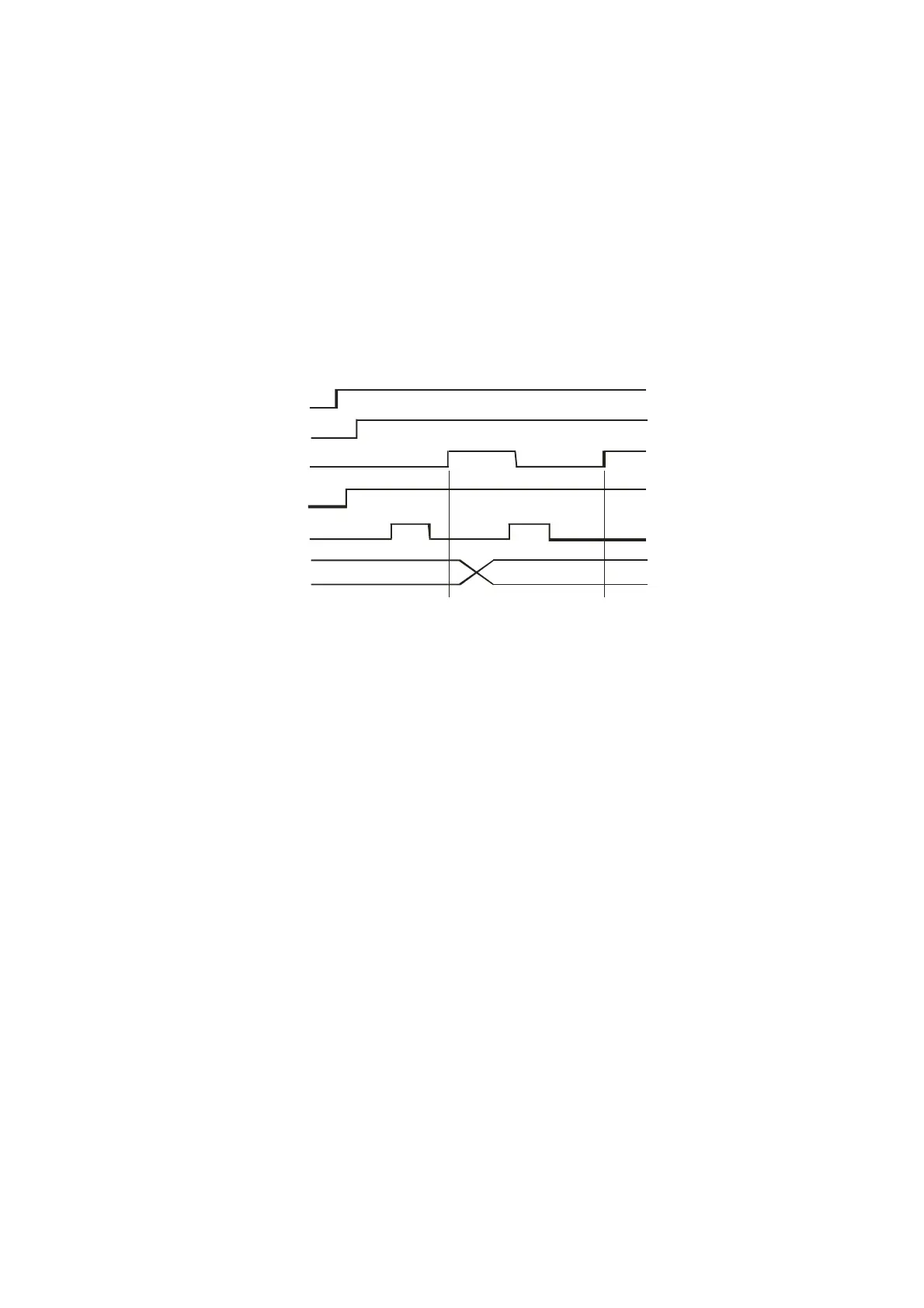

DO1
SR DY
HOME
C TRG (r i sing edg e)
SON
POS=0
P1 P2
DO2
DO4
DI1
DI2
DI3
POS=1
