Chapter 4 Display and Operation|ASDA-A&A+ Series
4-2 Revision April 2009

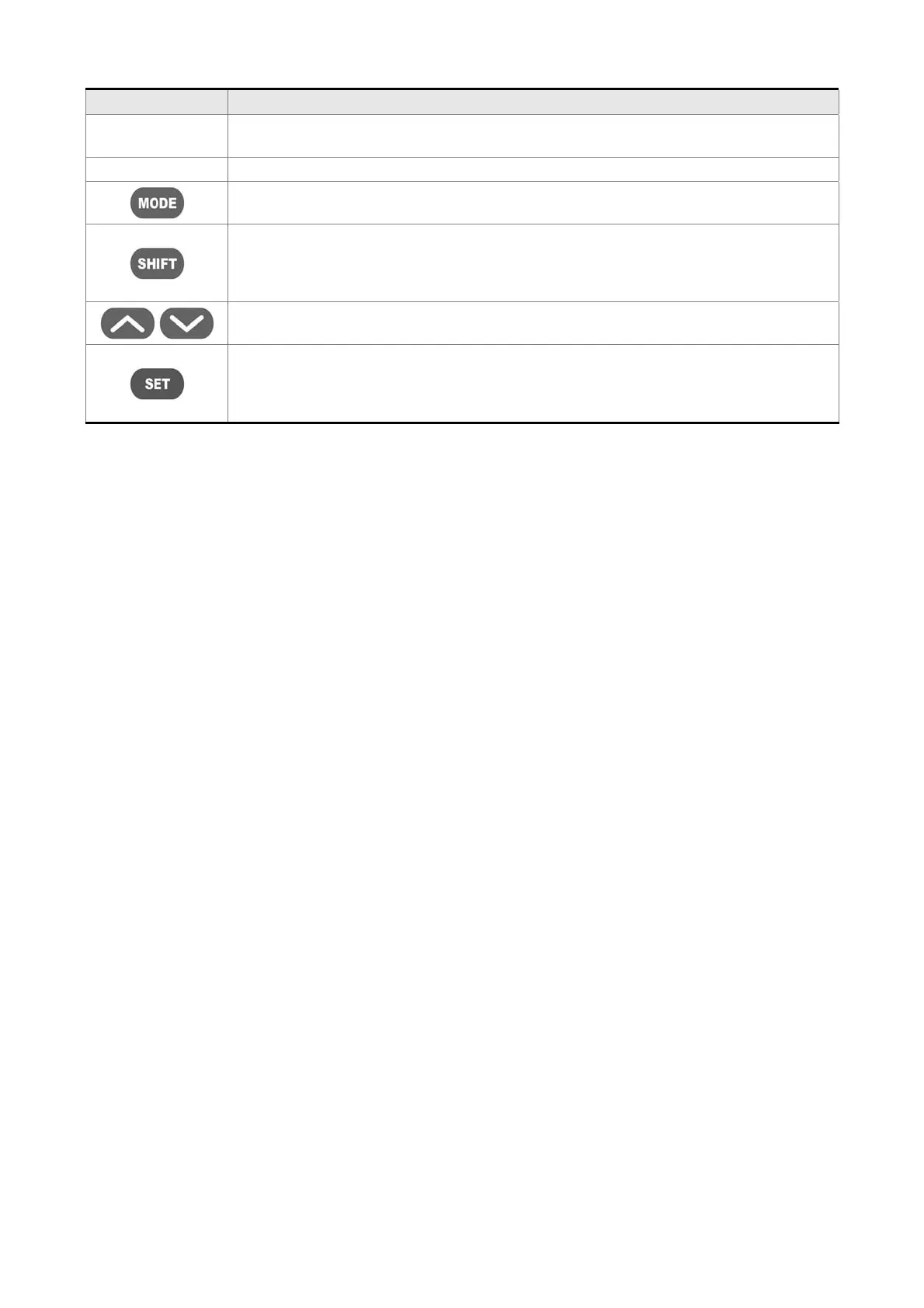

Name Function
LCD Display
The LCD Display (5-digit, 7-step display panel) shows the monitor codes, parameter
settings and operation values of the AC servo drive.
Charge LED The Charge LED lights to indicate the power is applied to the circuit.
MODE Key. Pressing MODE key can enter or exit different parameter groups, and
switch between Monitor mode and Parameter mode.
SHIFT Key. Pressing SHIFT key can scrolls through parameter groups. After a
parameter is selected and its value displayed, pressing SHIFT key can move the
cursor to the left and then change parameter settings (blinking digits) by using arrow
keys.
UP and DOWN arrow Key. Pressing the UP and DOWN arrow key can scroll through
and change monitor codes, parameter groups and various parameter settings.
SET Key. Pressing the SET key can display and save the parameter groups, the
various parameter settings. During diagnosis operation, pressing SET key can execute
the function in the last step. (The parameter settings changes are not effective until the
SET key is pressed.)
