Chapter 4 Display and Operation|ASDA-A&A+ Series
4-6 Revision April 2009
P0-02
Setting
Display Message Description Unit
15
Motor feedback pulse number (Relative
value) / Position latch pulse number
[pulse]
16
Motor feedback rotation number (Relative
value) / Position latch rotation number
[rev]
ASDA-A+ Series
P0-02
Setting
Display Message Description Unit
17
-
Reserved -
18
High resolution pulse number [pulse]
19
Absolute pulse number (use Z pulse as
home)
[pulse]

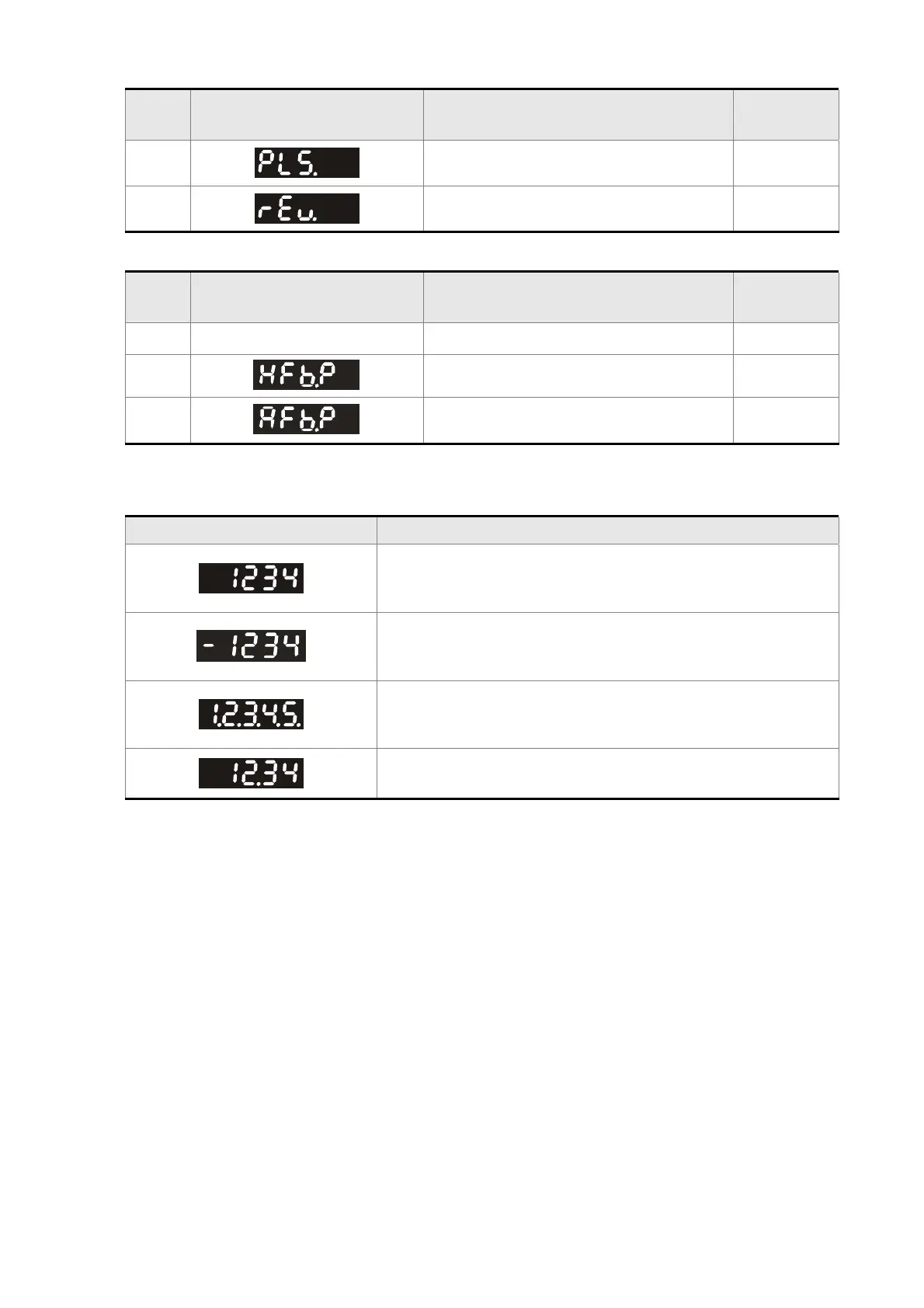

The following table lists the display examples of monitor value:
Display Message Description
Positive value display. No positive sign is displayed to indicate
it is a positive value.
Display value: +1234.
Negative value display (The decimal place is greater than four).
The lit decimal points are used to indicate it is a negative value.
Display value: -12345.
Negative value display (The decimal place is less than five).
The negative sign is displayed to indicate it is a negative value.
Display value: -1234.
Decimal value display.
Display value: 12.34.
