Chapter 6 Control Modes of Operation
6.2.7 Timing Chart of Position (PR) Control Mode
In PR mode, position command source is DI signal from CN1, i.e. selected by POS0~POS5
and CTRG. Please refer to 6-2-2 to see the relationship between DI signals and parameters.

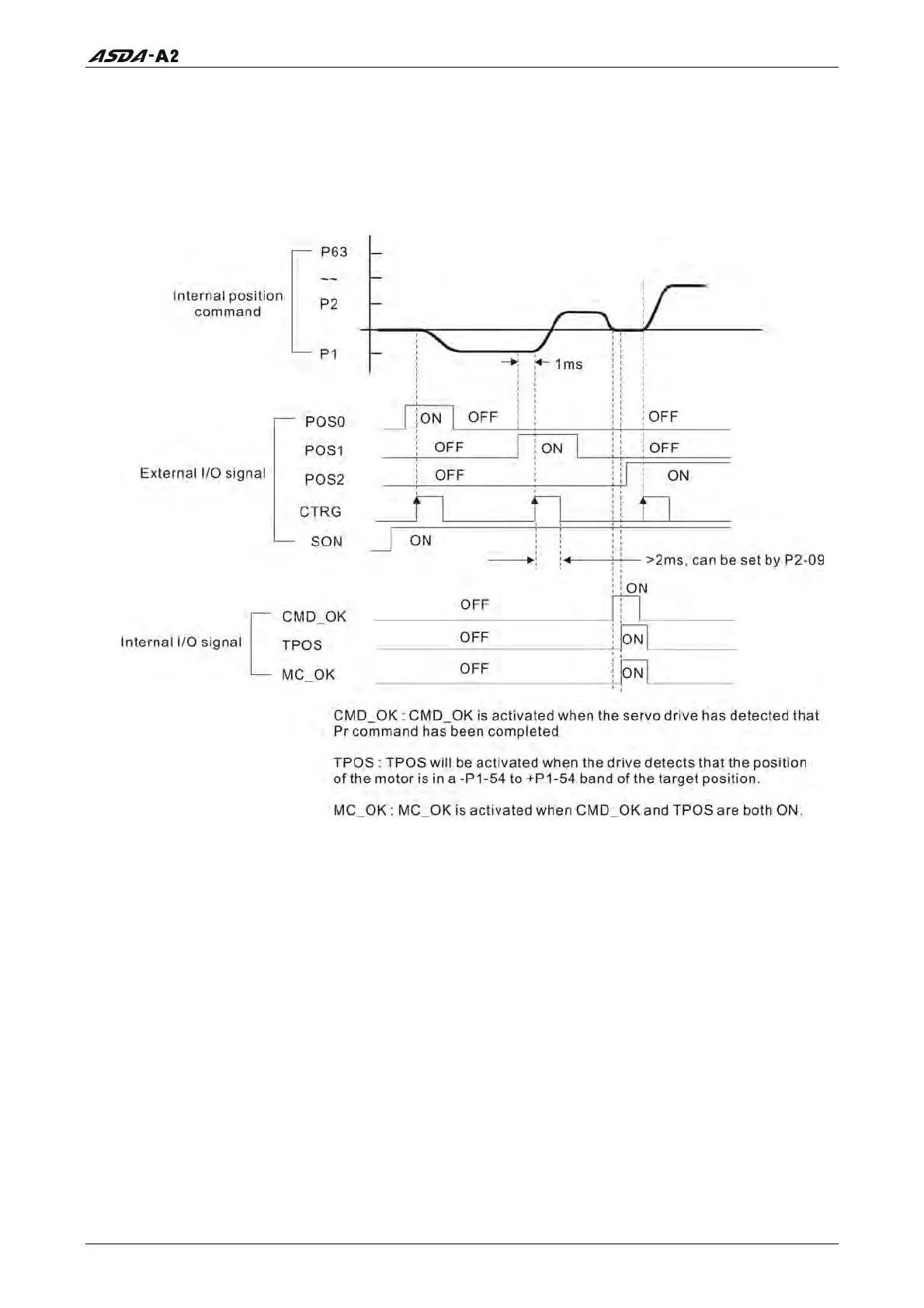

The following figure is shown the timing chart of PR mode:
Revision January 2011 6-15
