Delta Electronics DVP-ES2 Series - I;O Point Wiring; DC Input Wiring Modes; Relay Output Wiring

- 5 -
Ϥ

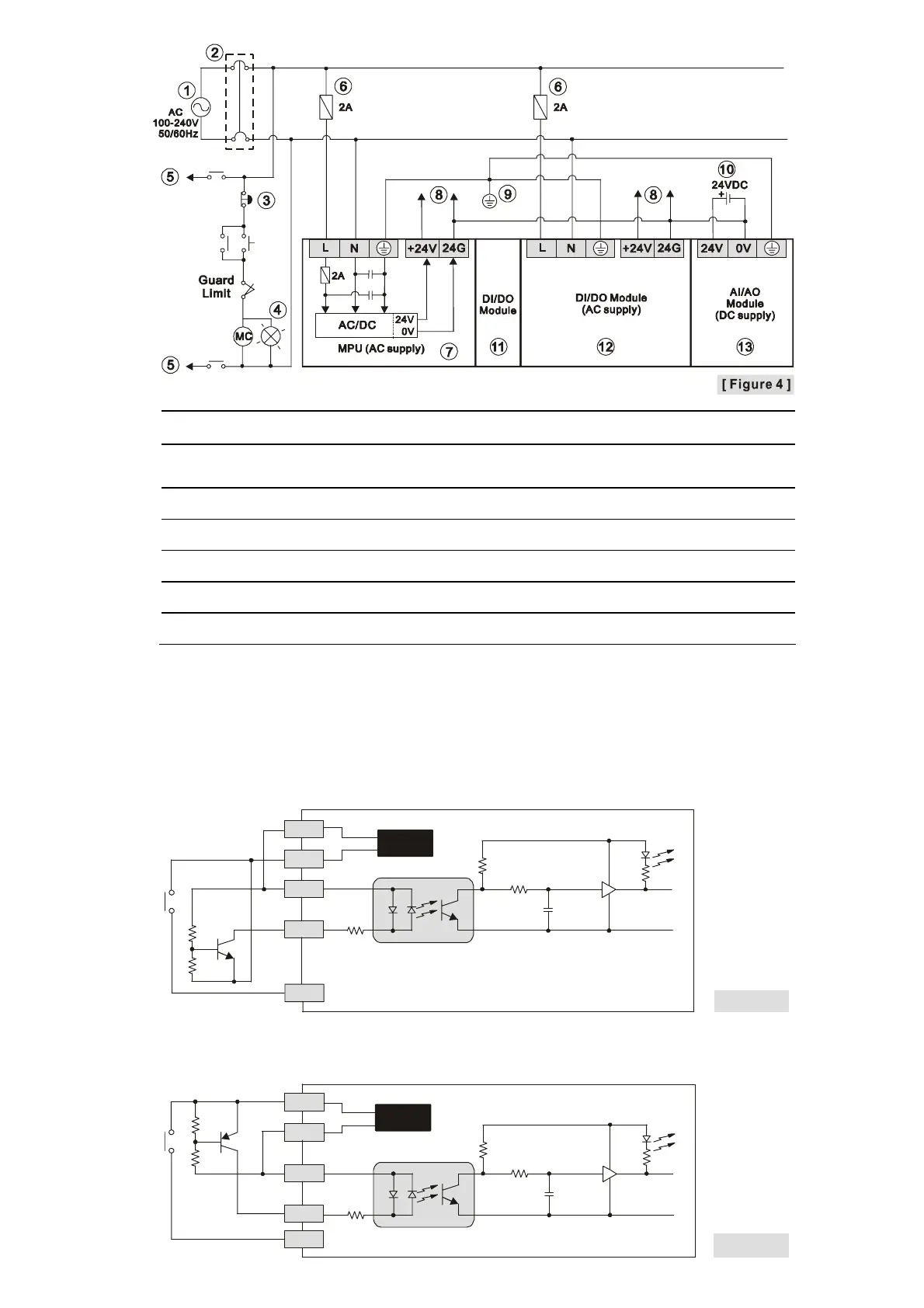

1
AC power supply:100 ~ 240VAC, 50/60Hz
Ϥ
2
Breaker
Ϥ
3
Emergency stop: This button cuts off the system power supply when accidental
emergency takes place.
Ϥ
4
Power indicator
Ϥ
5
AC power supply load
Ϥ
6
Power supply circuit protection fuse (2A)
Ϥ
7
DVP-PLC (main processing unit)
Ϥ
8
DC power supply output: 24VDC, 500mA
Ϥ
9
Grounding resistance: < 100ȍ
Ϥ
10
DC power supply: 24VDC
Ϥ
11
Digital I/O module (DC supply)
Ϥ
12
Digital I/O module (AC supply)
Ϥ
13
Analog I/O module (DC supply)
 I/O Point Wiring
There are 2 types of DC inputs, SINK and SOURCE. (See the example below. For
detailed point configuration, please refer to the specification of each model.)
y DC Signal IN – SINK mode
Input point loop equivalent circuit
+24V
24G
S/S
X0
24VDC
X1
[ Figure 5 ]
y DC Signal IN – SOURCE mode
Input point loop equivalent circuit
+24V
24G
S/S
X0
24VDC
X1
[ Figure 6 ]
