Infrasuite Power Management
Chapter 4 : Wiring

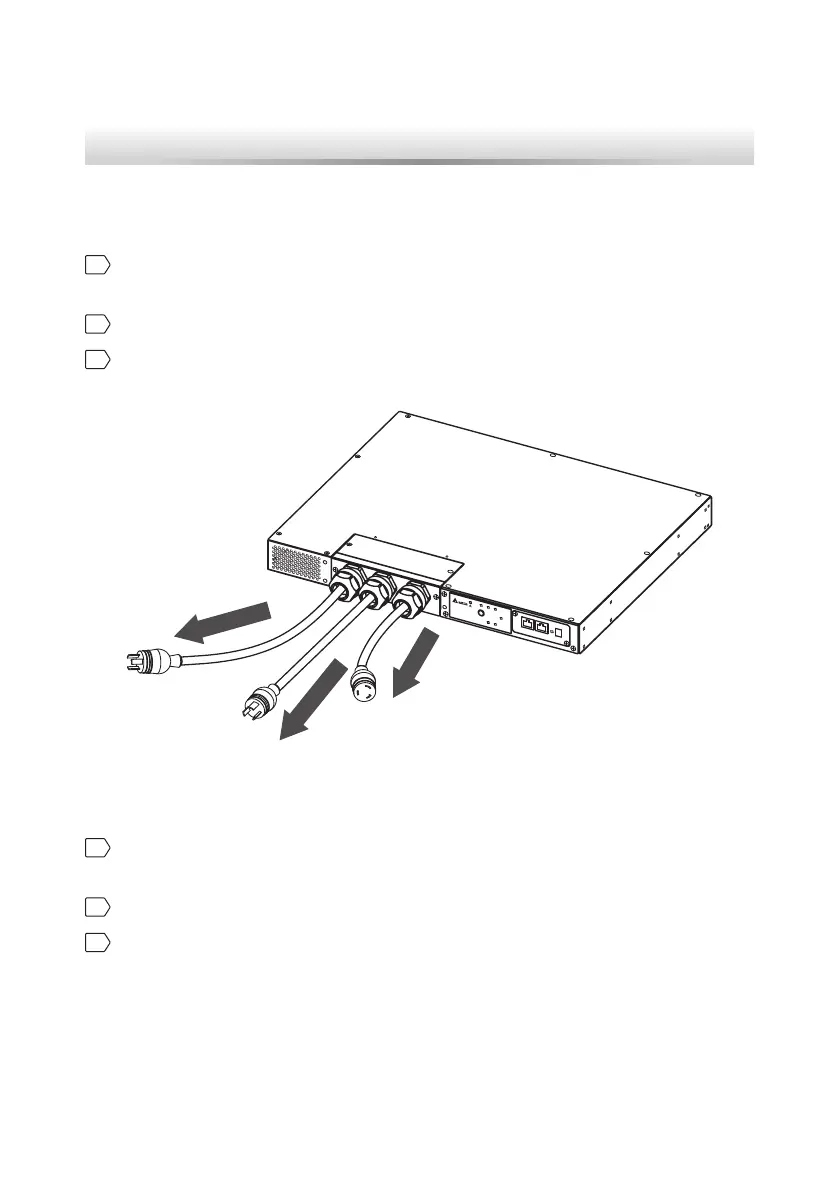

4.1 Wiring_Model: STS30002SR00035
1
Connect the input power cables (provided) to two power sources (source 1 (S1)
& source 2 (S2)). Source 1 (S1) is the preferred source.
2
Connect the output power cable (provided) to your load.
3
Connect the Ethernet cable (not provided) to the front panel’s ‘NETWORK’
port.
To Source 1
To Source 2
To Load
TEST
O/P
S1 S1-ON
S2
S2-ON
RESET
NETWORK
LOCAL
4.2 Wiring_Model: STS30002SR10035
1
Connect the input power cables (provided) to two power sources (source 1 (S1)
& source 2 (S2)). Source 1 (S1) is the preferred source.
2
Connect the output power cable (provided) to your load.
3
Connect the Ethernet cable (not provided) to the front panel’s ‘NETWORK’
port.
