Delta Electronics STS30002SR10135

Chapter 6 Operation
17
Chapter 6 : Operation

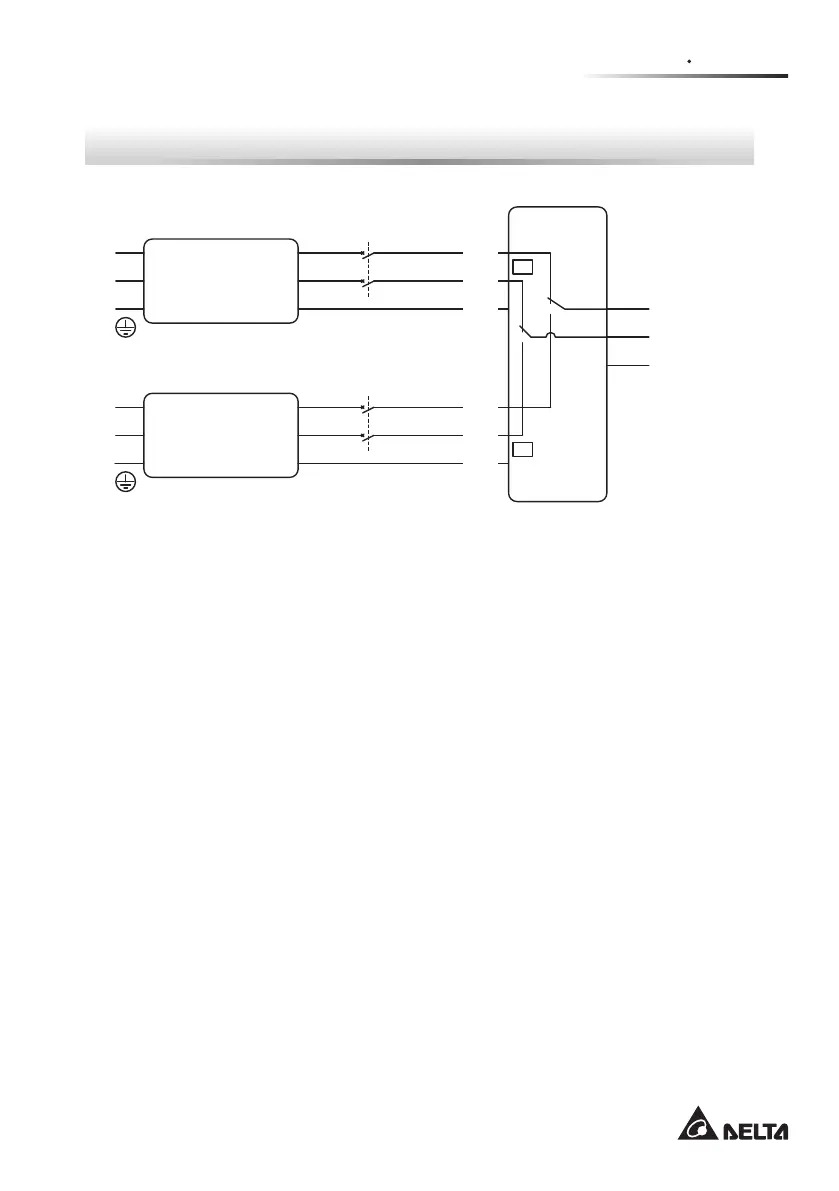

UPS
(Source 1)
UPS
(Source 2)
(L)
(N)
(G)
2 poles circuit breaker
To the
sensitive
equipment
(L)
(N)
(G)
2 poles circuit breaker
STS
(L)
(N)
(G)
S1
S2
(L1)
(N1)
(G)
(L2)
(N2)
(G)
After power connection, the STS will automatically perform power-on self-test. After
the test, the STS will start supplying power to its connected equipment. You can
also press the Test Button to force the STS to execute self-test.
