Chapter 4 Wiring
11
To Source 1
To Source 2
To Load
TEST
O/P
S1
S1-ON
S2 S2-ON
NETWORK
RESET
LOCAL

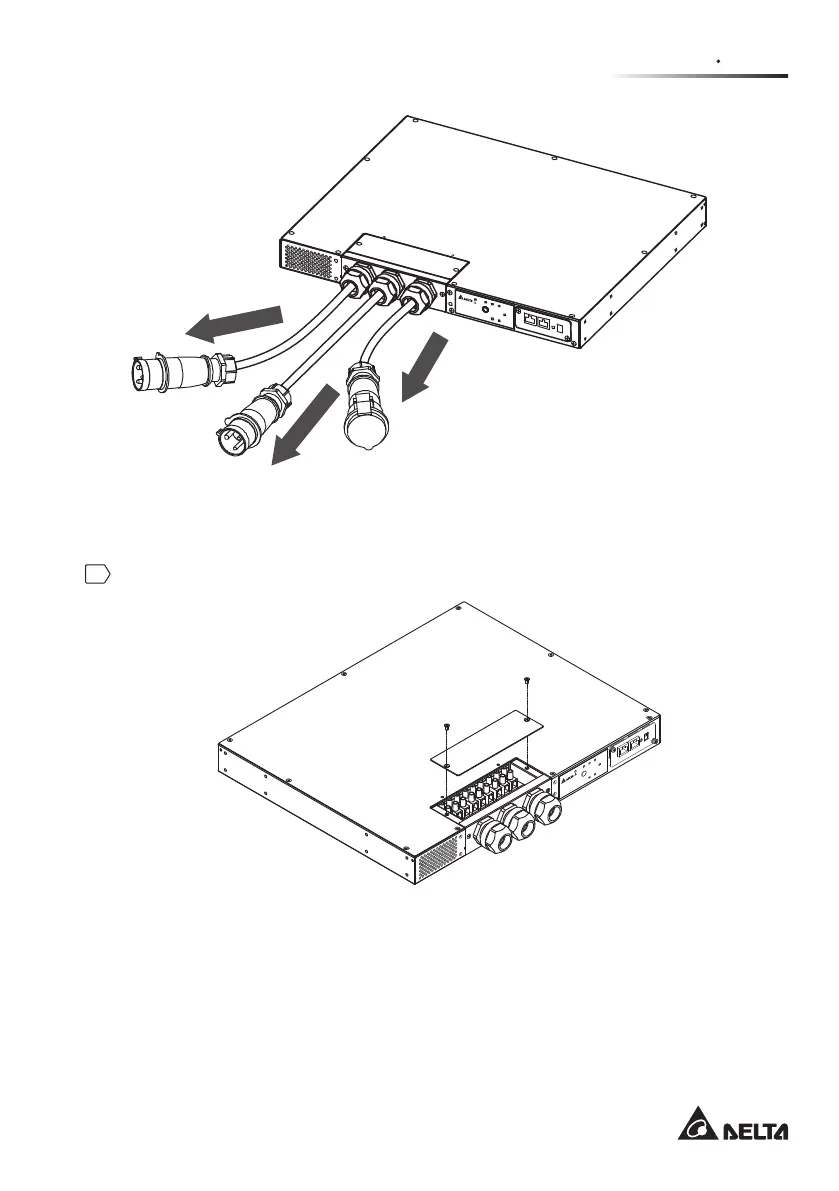

4.3 Wiring_Model: STS30002SR10135
1
Remove the two screws shown in the gure below.
TEST
O/P
S1 S1-ON
S2
S2-ON
NETWORK
RESET
LOCAL
