After removing the two screws, you will see the wiring terminals (L, N, G) as
follows.
TEST
O/P
S1 S1-ON
S2
S2-ON
NETWORK
RESET
LOCAL
G
N
L
G
N
L
G
N
L
3

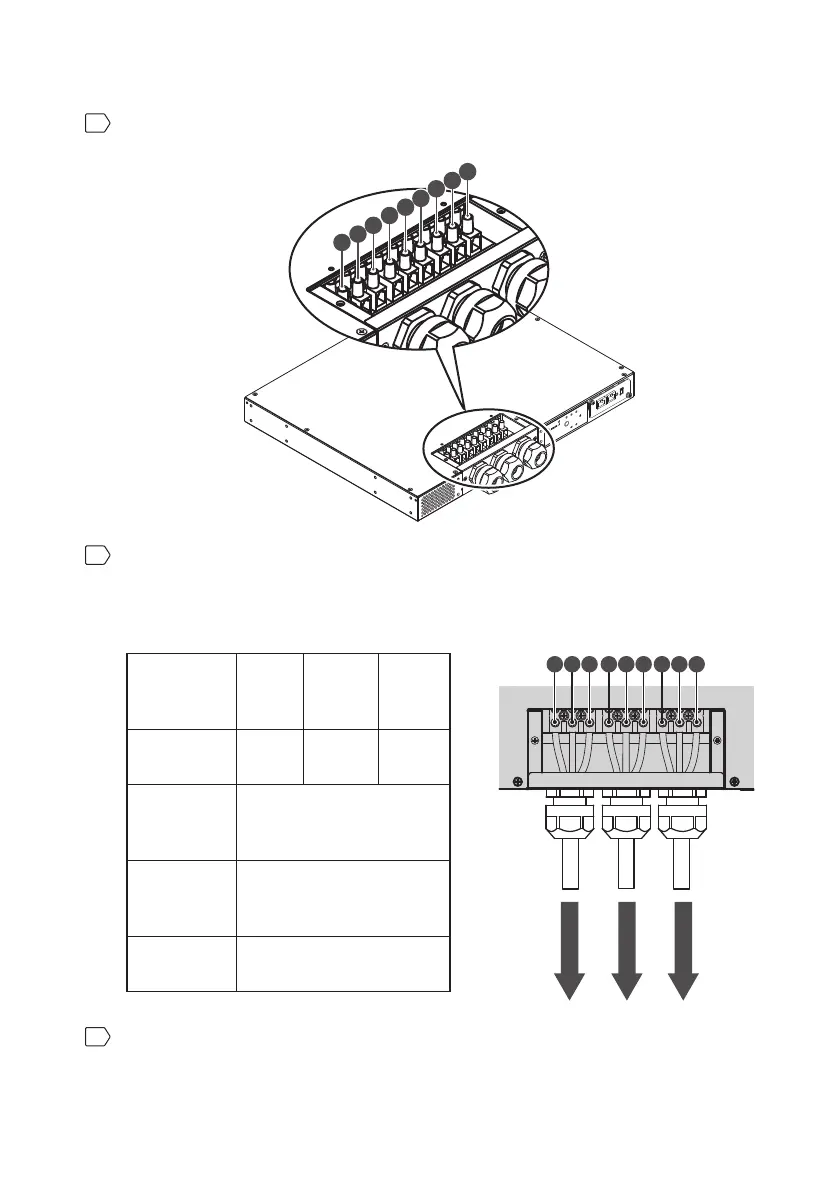

Follow the following table to use the specified wires to connect the wiring
terminals and the source 1 (S1), source 2 (S2) and your load. For wiring,
please refer the gure below. Please note that source 1 (S1) is the preferred
source.
Wiring
Terminal
Location
L N G
Wire
Function
Phase Neutral Ground
Terminal
Wire Size
Rating
32A
Minimum
Input Wire
Size
10 AWG/ 3G4
Tightening
Torque
14Kgf-cm
To Source 1
To Source 2
To Load
L
N G
L
N G
L
N G
4
Connect the Ethernet cable (not provided) to the front panel’s ‘NETWORK’
port.
