4
UNPACKING

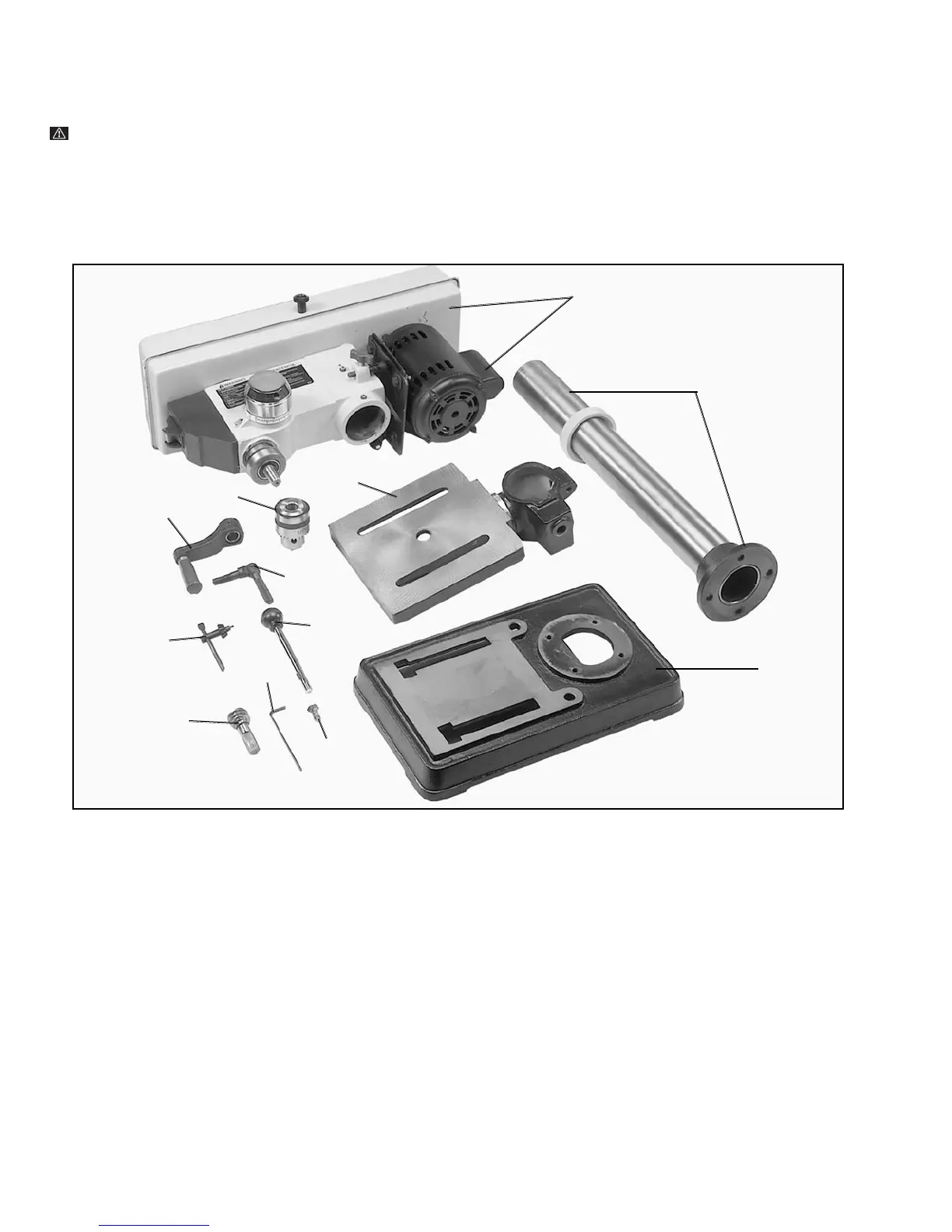

Your drill press is shipped complete in one container. Carefully unpack the drill press and all loose items from the
container. Figure 2 illustrates the drill press and all loose items supplied with the machine.
WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE DRILL PRESS TO THE POWER SOURCE
UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU HAVE READ AND UNDERSTOOD THE ENTIRE
INSTRUCTION MANUAL.
1 - Drill Press Head and Motor
2 - Column, Base Flange and Table Raising
Mechanism
3 - Table Clamp
4 - Table
5 - Base
6 - Pinon Shaft Handles (3)
7 - Chuck
8 - Chuck Key
9 - Wrenches (2)
10 - Worm Gear for Table Raising and Lowering
Mechanism
11 - 25mm (1") long Hex Head Cap Screws (4)
12 - Table Raising and Lowering Handle
Fig. 2
1
2
3
4
5
6
7
8
9
10
11
12
