4
UNPACKING AND CLEANING
Carefully unpack the tool and all loose items from the carton. Remove the protective coating from all unpainted parts.
This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline, or lacquer thin-
ner for this purpose).
WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE TOOL TO THE POWER SOURCE UNTIL THE
MACHINE IS COMPLETELY ASSEMBLED AND YOU HAVE READ AND UNDERSTAND THE ENTIRE INSTRUC-
TION MANUAL.

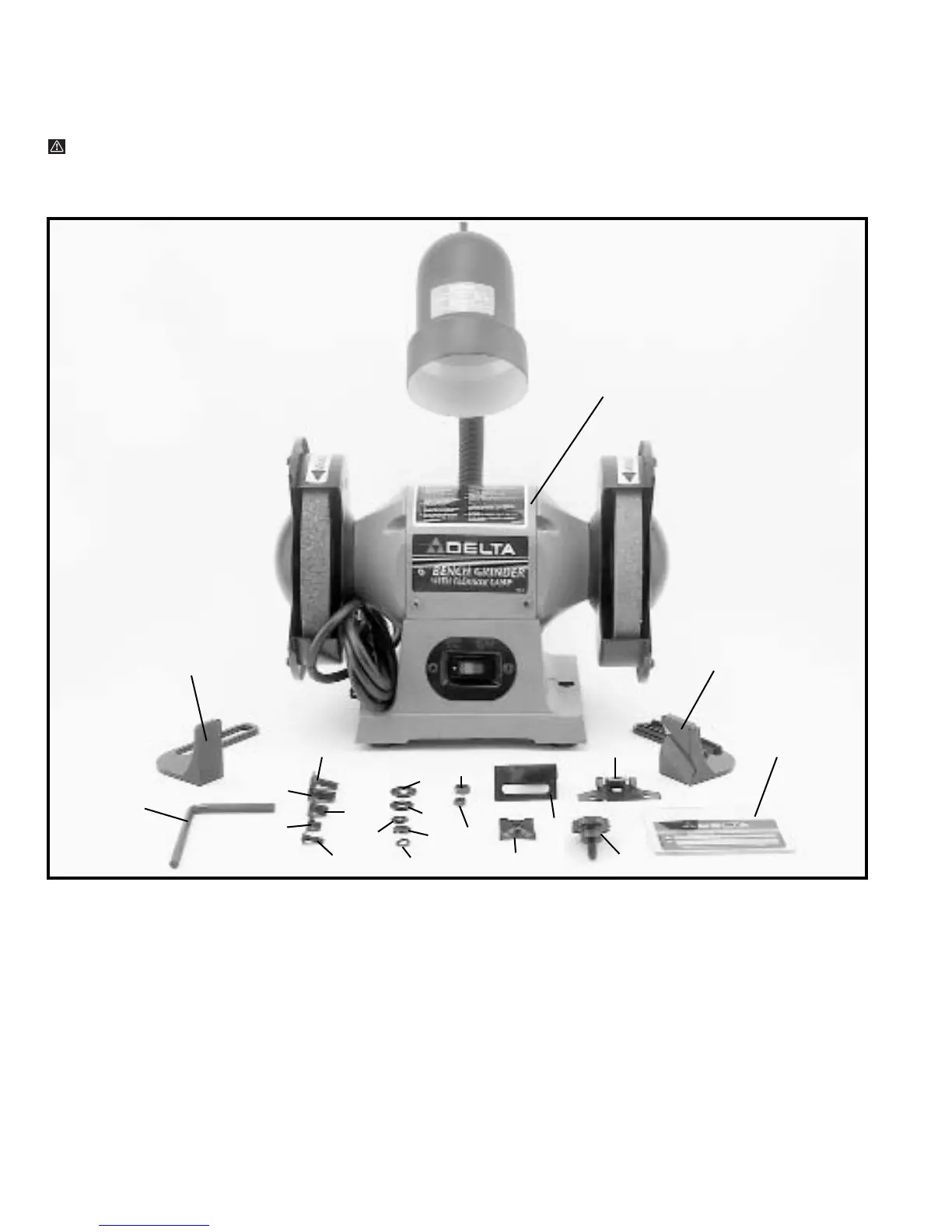

Fig.1
1. Grinder
2. Right side tool rest with V-groove
3. Left side tool rest
4. Eye shield (2)
5. Eye shield rod(2)
6. Eye shield frame (2)
7. Eye shield rod bracket (2)
8. Eye shield knob (2)
9. Spark guard (2)
10. 5/16-18x5/8" hex head screw (2)
11. 3/4” Flat washer (4)
12. 5/16-18x1/2" (2)
13. 1/4-20x1/4" Hex head screw (2)
14. 11/16" Flat washer (2)
15. #10-24x1/2" Round head screw (4)
16. 15/32" Flat washer (4)
17. 1/4-20 Hex nut (2)
18. 1/4-20x3/4" Carriage head screw (2)
19. 3/8" Lock washer (2)
20. #10-24 Hex nut (4)
21. 5/16" Lock washer (2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
