Use proper extension cords. Make sure your extension cord is in good condition and is a 3-wire extension cord which
has a 3-prong grounding type plug and matching receptacle which will accept the machine’s plug. When using an
extension cord, be sure to use one heavy enough to carry the current of the machine. An undersized cord will cause
a drop in line voltage, resulting in loss of power and overheating. Fig. D, shows the correct gauge to use depending
on the cord length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
EXTENSION CORDS
OPERATING INSTRUCTIONS
FOREWORD
Delta Model 43-355 is a wood shaper. The Delta Model 43-355 has an extra large 18"x30", rectangular cast iron table
which provides ample work support. The Delta Model 43-355 is equipped with a patented fence which conforms to the
cutter shape for improved chip removal, dust collection and greater operator protection.
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
5
Fig. D
Fig. D
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 115
up to
25 18 AWG
0-6 115 25-50 16 AWG
0-6 115 50-100 16 AWG
0-6 115 100-150 14 AWG
6-10 115
up to
25 18 AWG
6-10 115 25-50 16 AWG
6-10 115 50-100 14 AWG
6-10 115 100-150 12 AWG
10-12 115
up to
25 16 AWG
10-12 115 25-50 16 AWG
10-12 115 50-100 14 AWG
10-12 115 100-150 12 AWG
12-16 115
up to
25 14 AWG
12-16 115 25-50 12 AWG
12-16 115
GREATER THAN 50 FEET NOT RECOMMENDED
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 230
up to
50 18 AWG
0-6 230 50-100 16 AWG
0-6 230 100-200 16 AWG
0-6 230 200-300 14 AWG
6-10 230
up to
50 18 AWG
6-10 230 50-100 16 AWG
6-10 230 100-200 14 AWG
6-10 230 200-300 12 AWG
10-12 230
up to
50 16 AWG
10-12 230 50-100 16 AWG
10-12 230 100-200 14 AWG
10-12 230 200-300 12 AWG
12-16 230
up to
50 14 AWG
12-16 230 50-100 12 AWG
12-16 230
GREATER THAN 100 FEET NOT RECOMMENDED

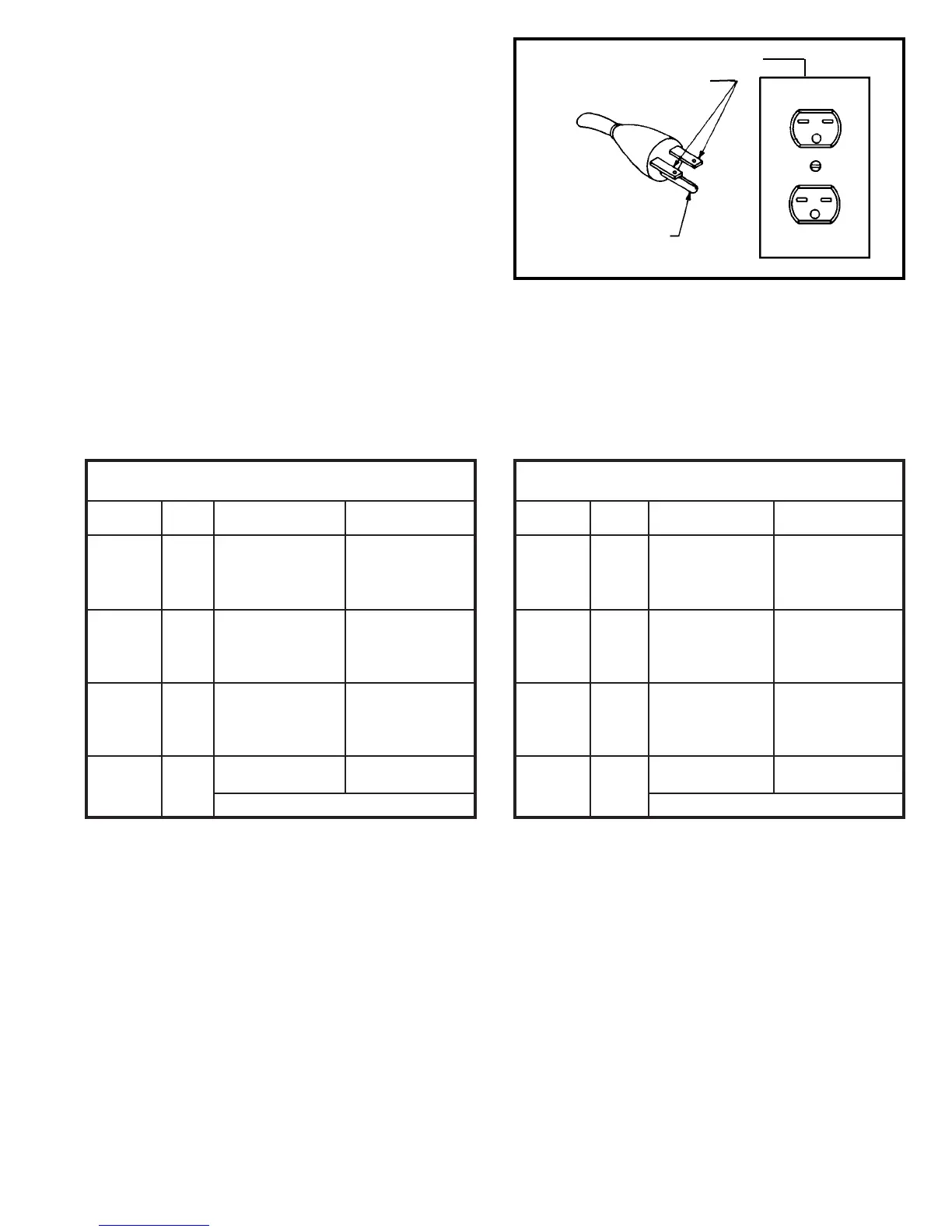

3. Grounded, cord-connected machines intended for
use on a supply circuit having a nominal rating between
150 - 250 volts, inclusive:
If the machine is intended for use on a circuit that has an
outlet that looks like the one illustrated in Fig. C, the
machine will have a grounding plug that looks like the
plug illustrated in Fig. C. Make sure the machine is
connected to an outlet having the same configuration as
the plug. No adapter is available or should be used with
this machine. If the machine must be re-connected for
use on a different type of electric circuit, the re-
connection should be made by qualified service
personnel; and after re-connection, the machine should
comply with all local codes and ordinances.
Fig. C
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
