b
c

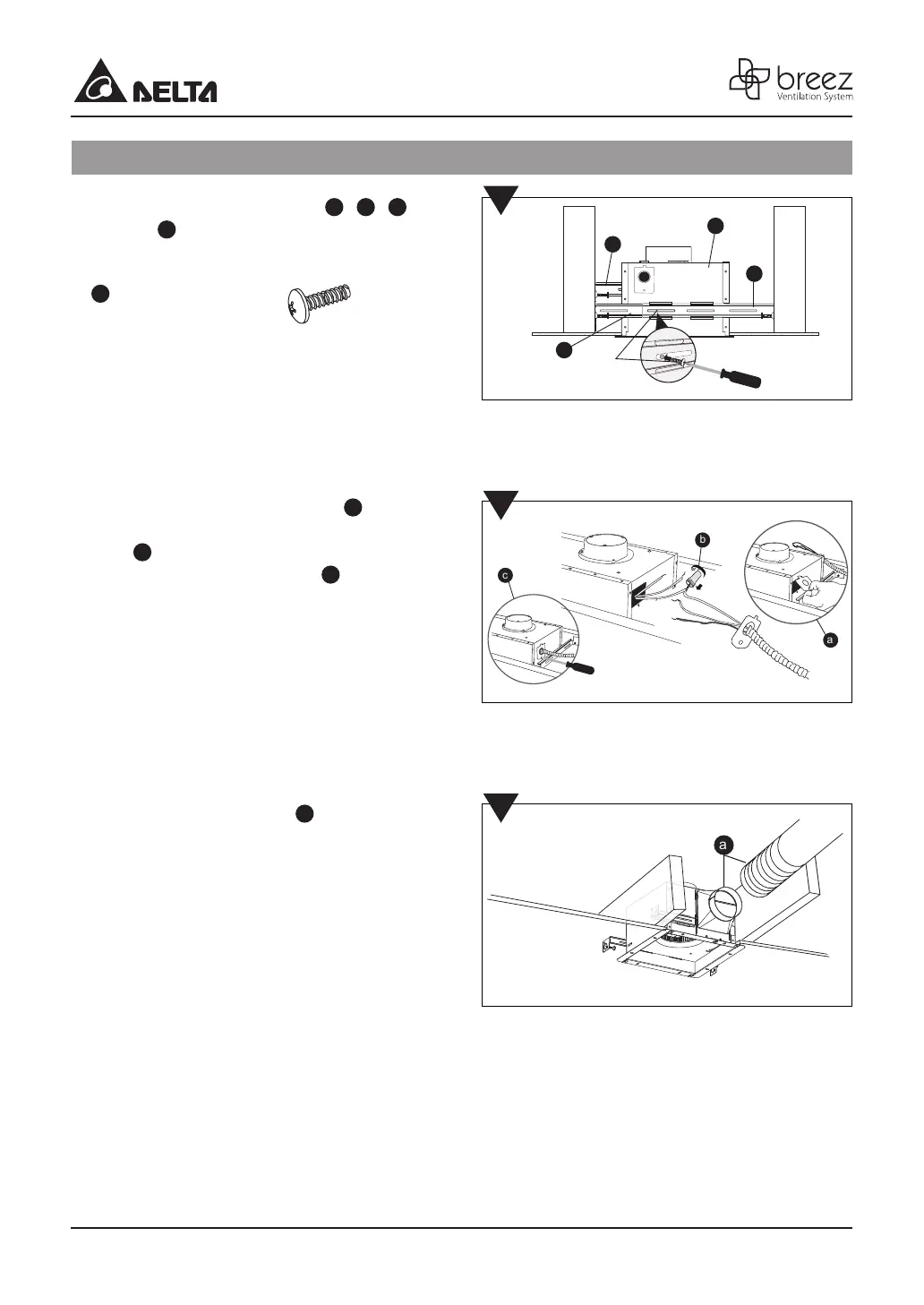

ASSEMBLY INSTRUCTIONS
4. Secure the suspension brackets
3
,
4
,
5
to the
fan body
1
using a short machine screw.
Hardware
B
Short machine screw
5. Remove the fan junction box cover
a
. Using wire
nuts (not supplied), connect house wires to fan
wires
b
as shown in the wiring diagram on page 4.
Reattach fan junction box cover
c
.
6. Connect a 4 in. circular duct
a
(not supplied)
and vent to the outside. Secure it with duct tape
(not supplied) or clamp (not supplied) to make the
connection secure and air tight.
7. Turn on power source. Check fan for any abnormal
sound or vibration.
4
5
1
3
4
5
Short
machine screw
a
6
