Delta C2000 Series - Frame G2

Chapter 1 IntroductionC2000 Series
1-19

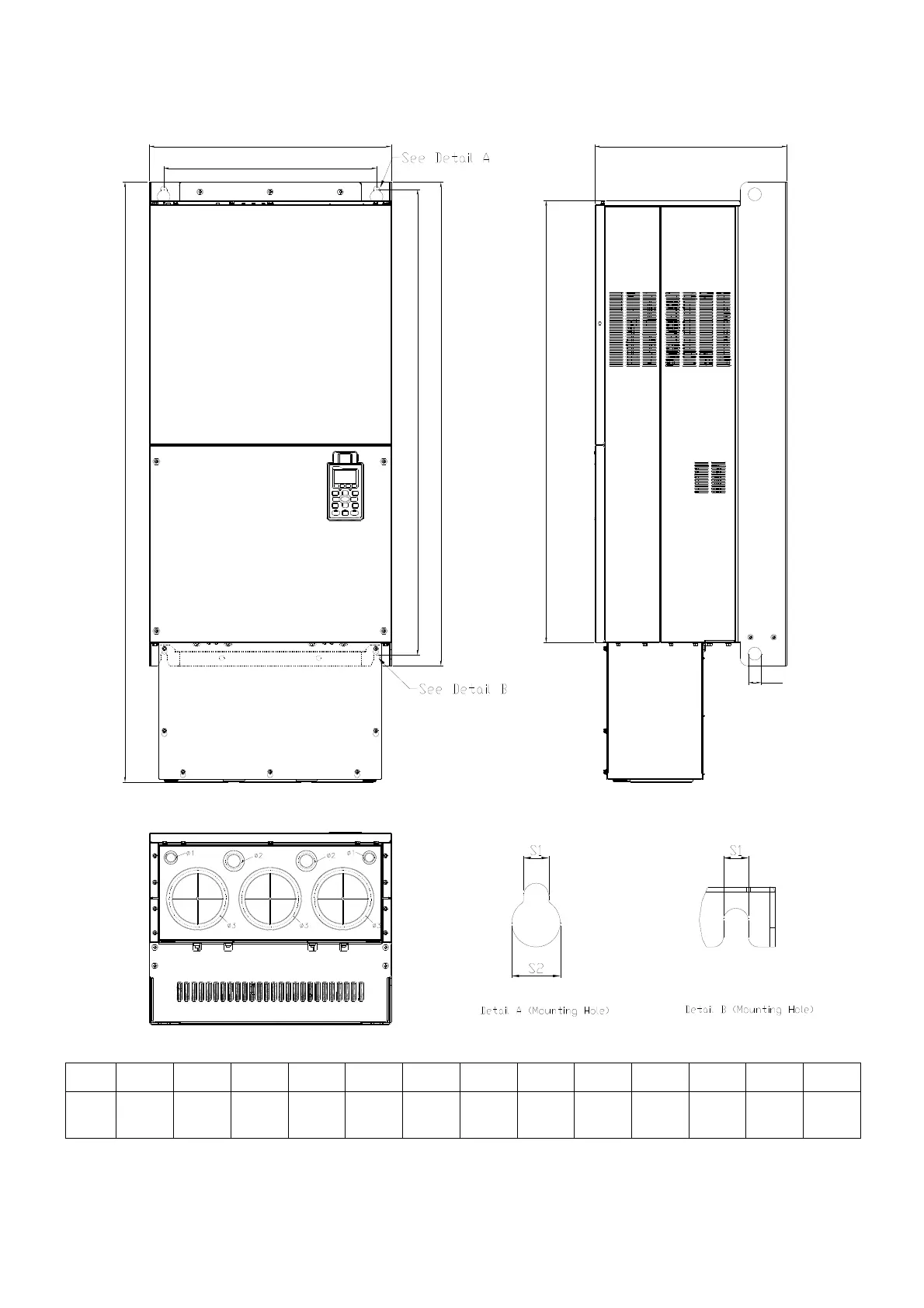

Frame G
G2: VFD1850C43E; VFD2200C43E
W1
W
H2
H1
H
H3
D
S3
Unit: mm [inch]
Frame
W H D W1 H1 H2 H3 S1 S2 S3 Ф1 Ф2 Ф3
G2
500.0
[19.69]
1240.2
[48.83]
397.0
[15.63]
440.0
[217.32]
1000.0
[39.37]
963.0
[37.91]
913.6
[35.97]
13.0
[0.51]
26.5
[1.04]
27.0
[1.06]
22.0
[0.87]
34.0
[1.34]
117.5
[4.63]
