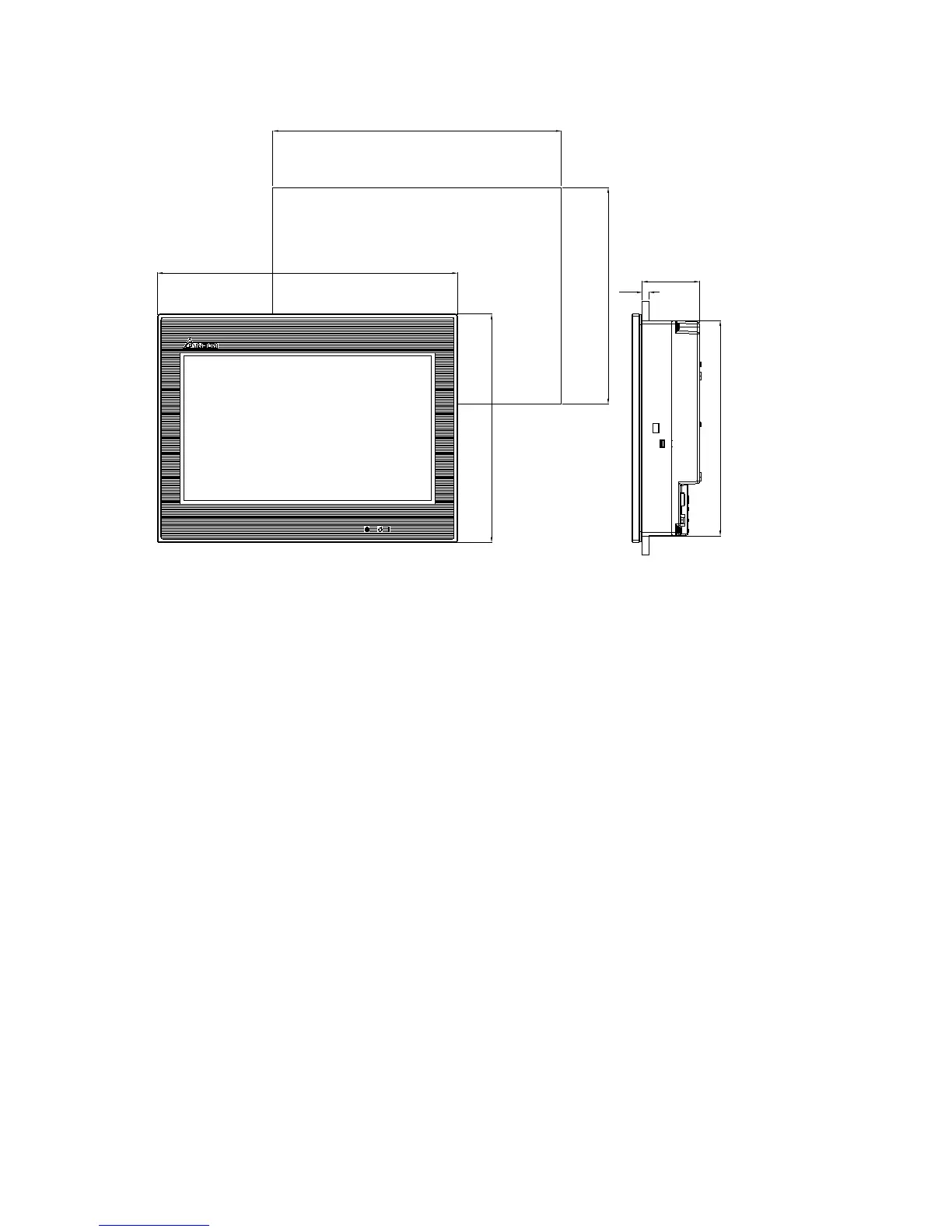

Delta DOP-B - DOP-B10 S(E)615 Cut-out

English-17
DOP-B10S(E)615
272(10.71")
200(7.88")
188.3(7.41")
51.9(2.04")
T
Note:
T=1.6mm(0.063")~6mm(0.24")
261.3
+1.0
0
(10.29"
+0.04"
0
)
189.3
+1.0
0
(7.45"
+0.04"
0
)
Units: mm (inches)
