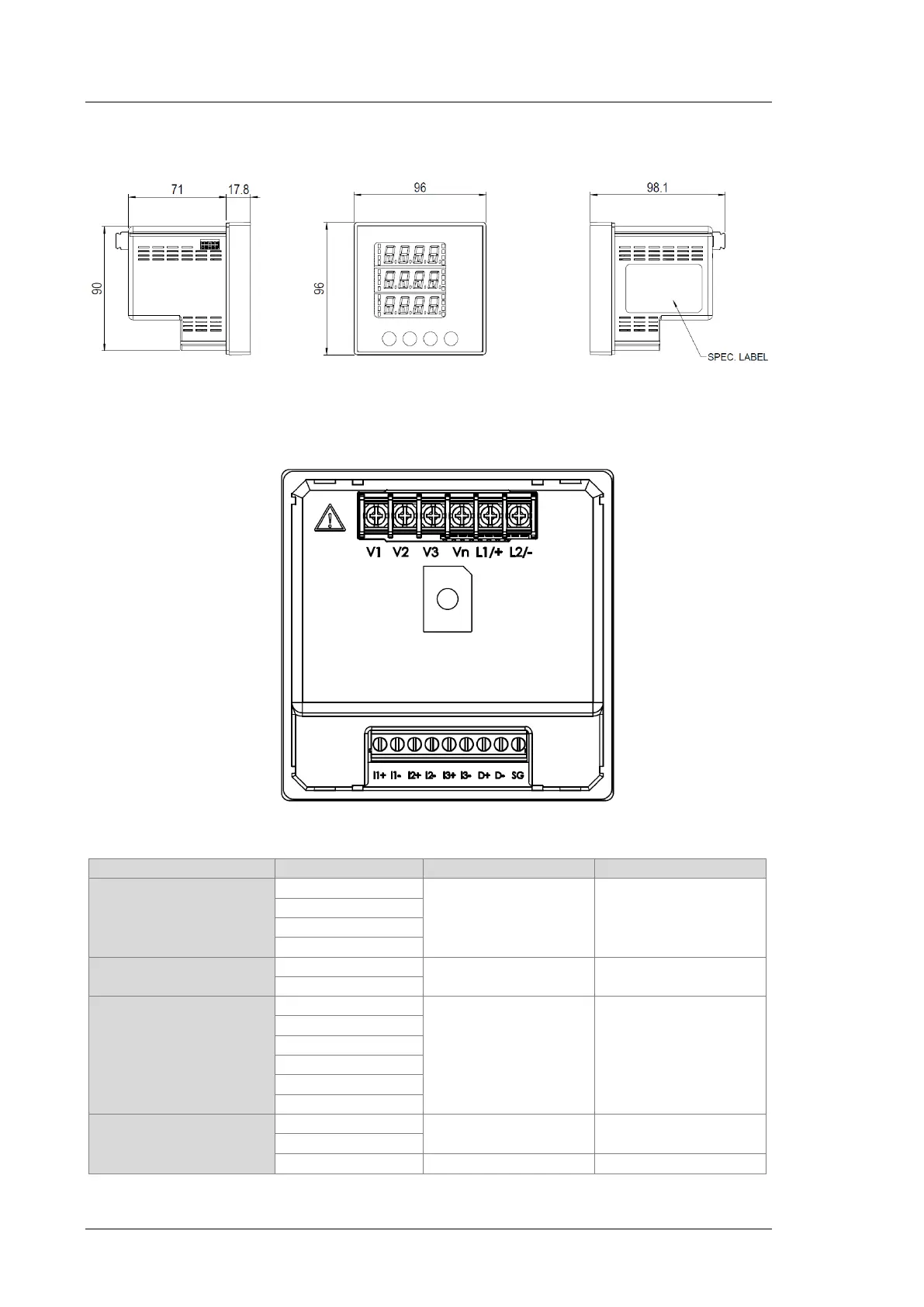

2.4 Dimensions
Unit: mm (Inch)
 DPM-C510 Back
Unit: mm (Inch)
Feature
Terminals
Voltage
Current
Measurement voltage
V1
20V L-N ~ 400V L-N
35V L-L ~ 690V L-L
-
V2
V3
VN
Operation voltage
L
80 ~ 265 VAC 400 mA MAX
N
Measurement current
I1+
- 1A ~ 5A
I1-
I2+
I2-
I3+
I3-
RS-485
D+
-7 ~ +12 VDC -
D-
SG
