Chapter 3 Installation
3-3

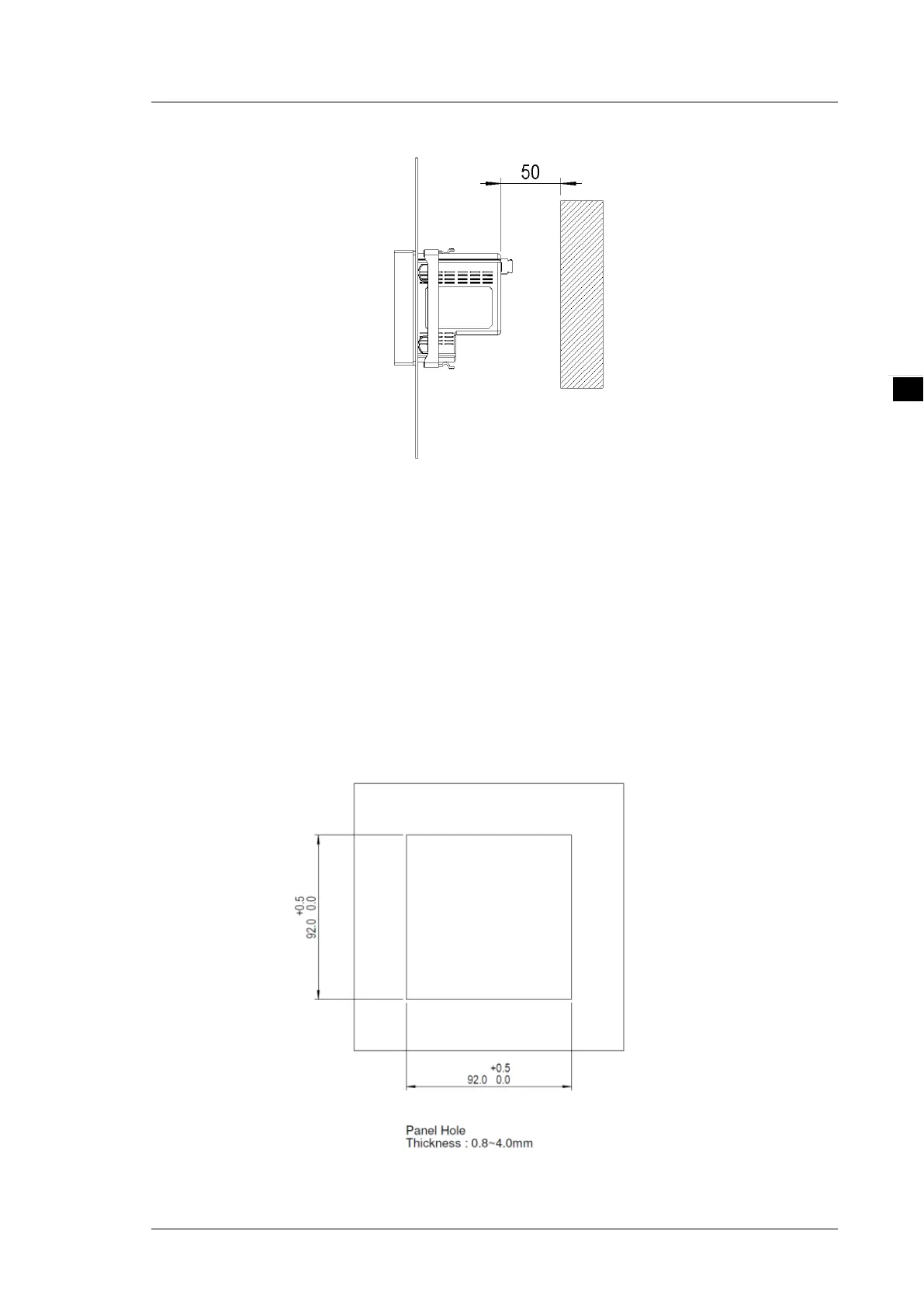

Cabinet installation
1. For easier handling during mounting and dismounting, the mounting brackets and accessories are
provided with the multi-function meter for the fixed installation
2. The dimension of the mounting hole is 92 mm * 92 mm in size. (Refer to the following description of
mounting hole dimension).
3. Slide the mounting bracket into the slot. The maximum panel thickness should be 4.0 mm.
*Note: Install on a flat mounting plane.
Mounting Hole Dimensions
Unit: mm
