Chapter 5 Parameters and Functions
5-7

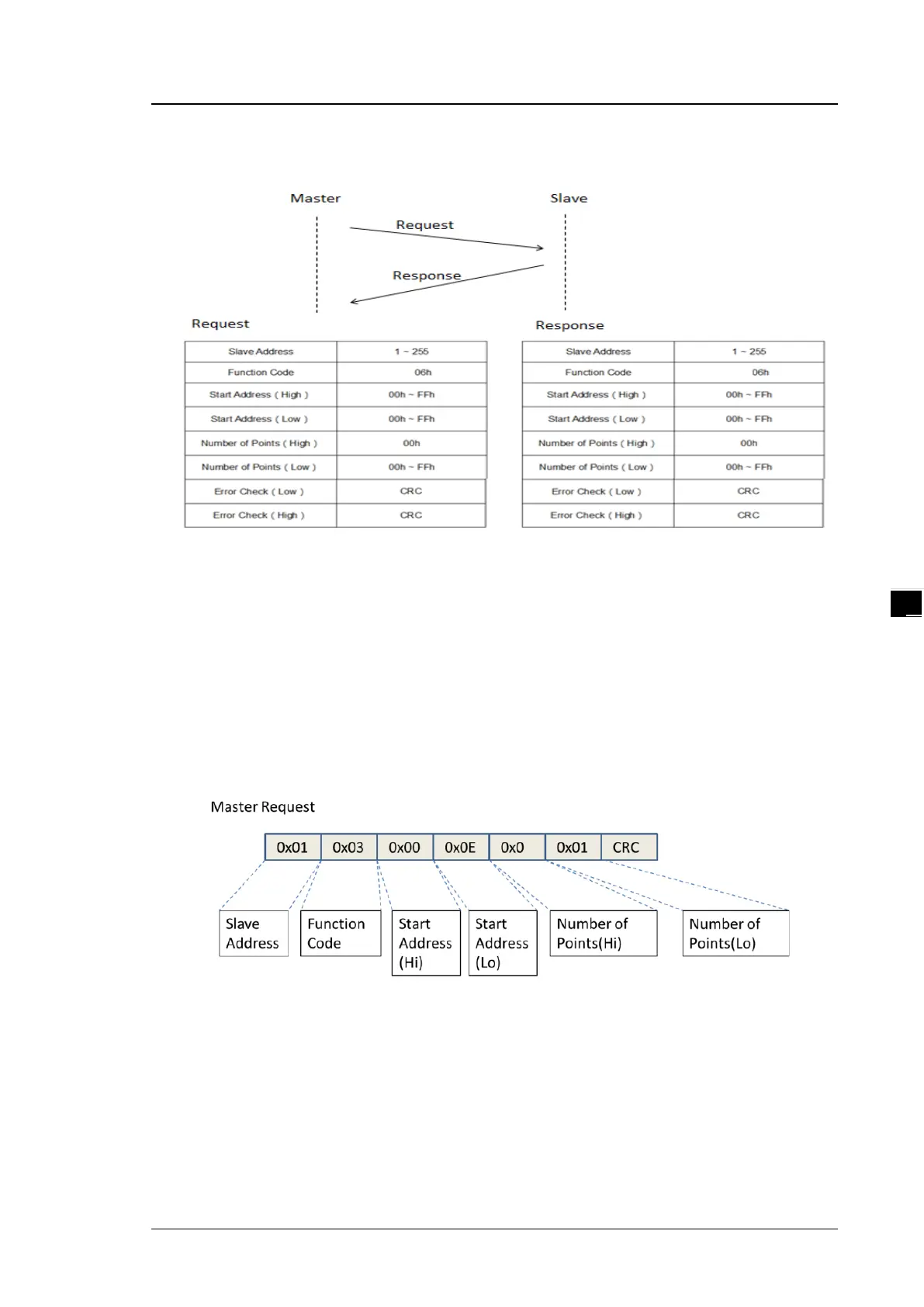

Write:
Example:
For Modbus Master, such as PLC or data collector, it uses Modbus protocol to get the value of CT setting
(Register address 0x000E) on the power meter (Modbus Slave) (Slave address 0x1). The register value is
1000.
The packet format for Request sent out by Modbus Master (PLC or data collector) is as follows:
The packet format for Response responded by Modbus Slave (power meter) is as follows:
