6

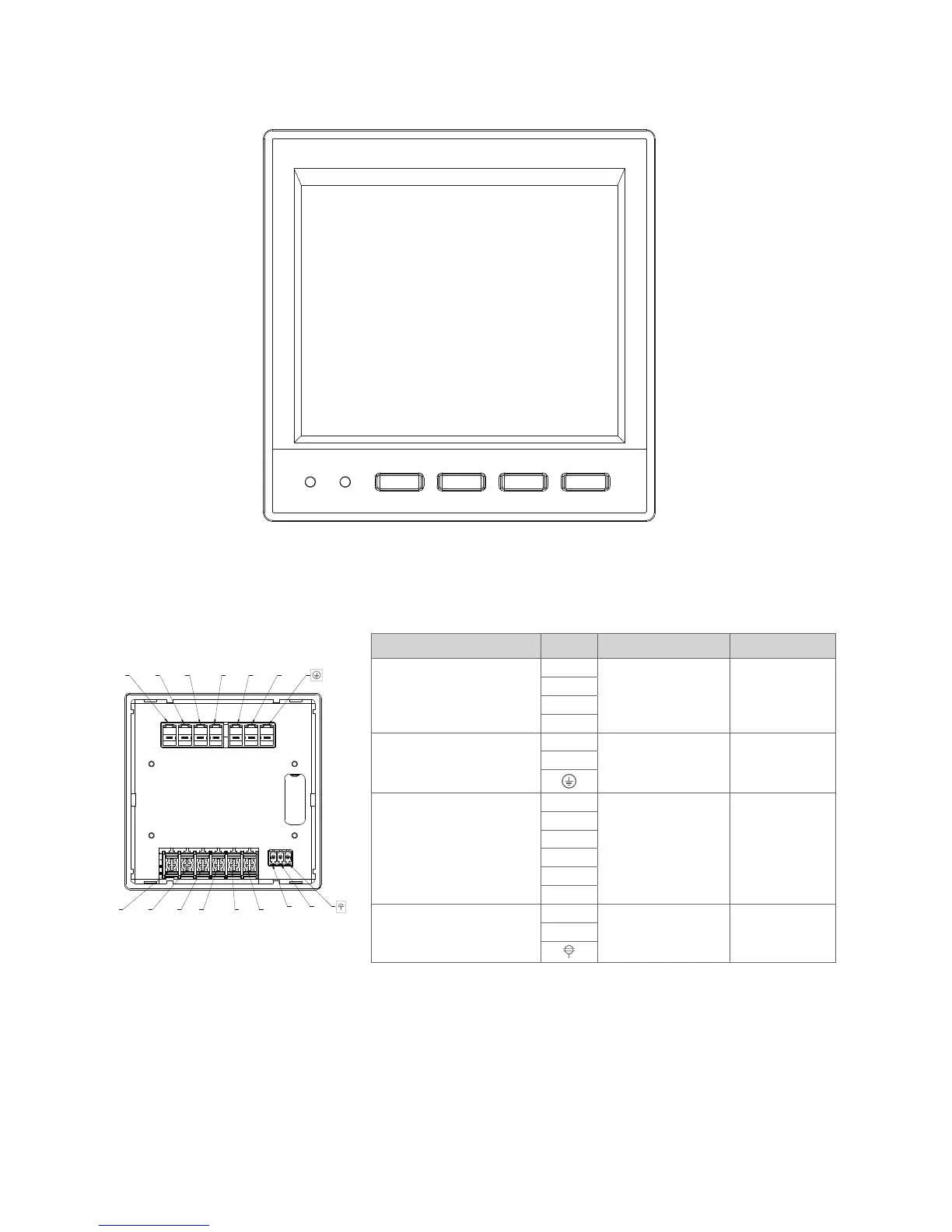

◆ Front
◆ Back
FUNCTION PIN VOLTAGE CURRENT
MEASURED VOTAGE
V1
20V L-N ~ 400V L-N
35V L-L ~ 690V L-L
-
V2
V3
Vn
CONTROL POWER
L1/+
80 ~ 265 VAC
100 ~ 300 VDC
400mA MAX.
L2/-
MEASURED CURRENT
I1+
- 1A ~ 5A
I1-
I2+
I2-
I3+
I3-
RS-485
D+
-7 ~ +12 VDC -
D-
PULSE
MENU UP DOWN ENTER
FAULT
198*160 DOTS LCD DISPLAY
I3-
V1 V2 V3 Vn L1/+ L2/-
D+ D-
I1+ I1- I2+ I2- I3+
INPUT / OUTPUT CONNECTOR PIN ASSIGNMENT
