4.1 Installation Method
Note：
■
The installation method should be based on instructions. Otherwise, breakdown would result.
■
For better effectiveness of cooling cycles, sufcient space must be kept between adjacent
objects and walls during the installation. Otherwise, imperfect cooling would result.
■
Maximal thickness for the panel installed should not exceed 5 mm.

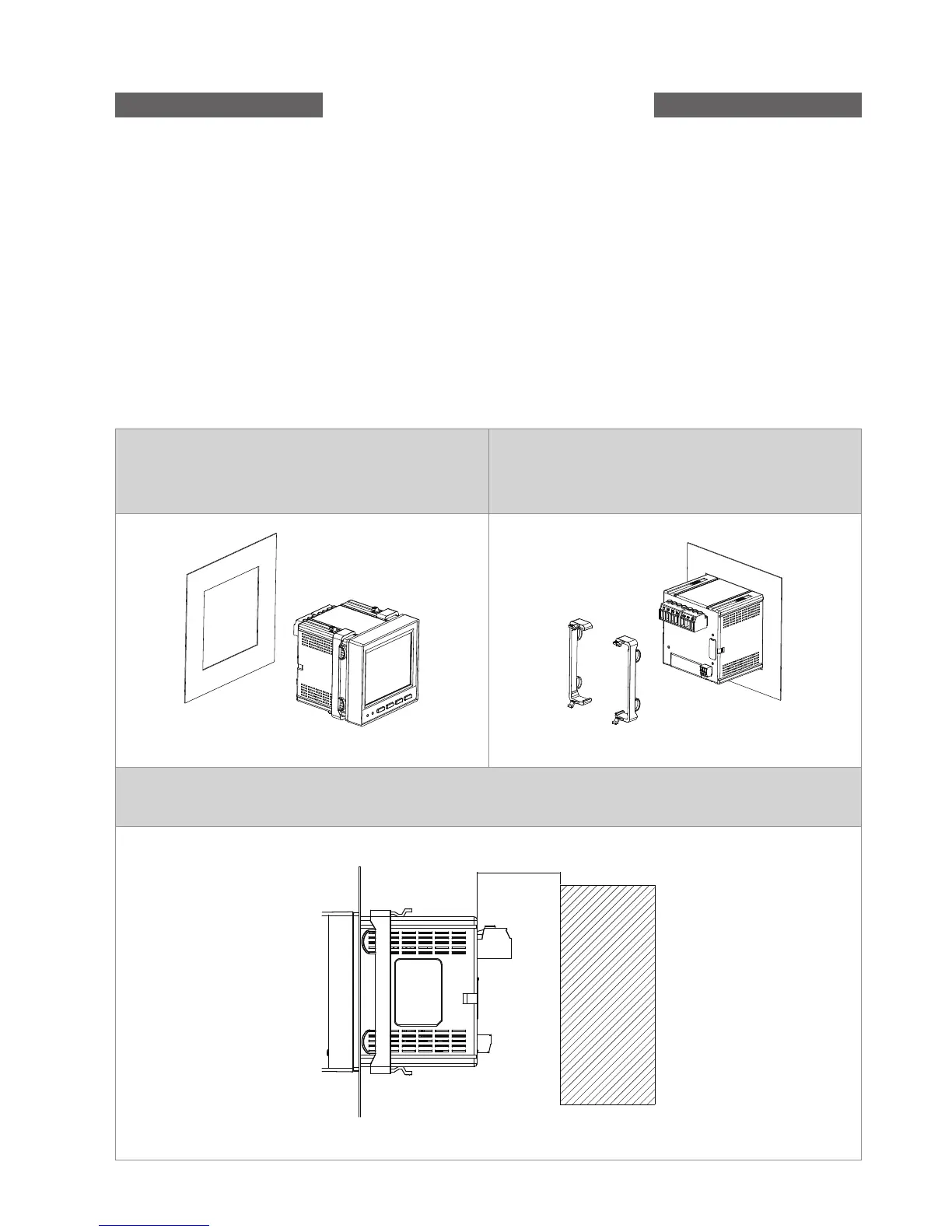

Illustration of Installation：
Step 1:
Open the square hole on the metal plate and then
install the power meter.
Step 2:
Install the fixing mount into the sliding slot and
then push the meter in to touch the metal plate.
Step 3:
During the installation, reserve a 50 mm-wide space behind the power meter for dissipating heat
50
單位：mm
