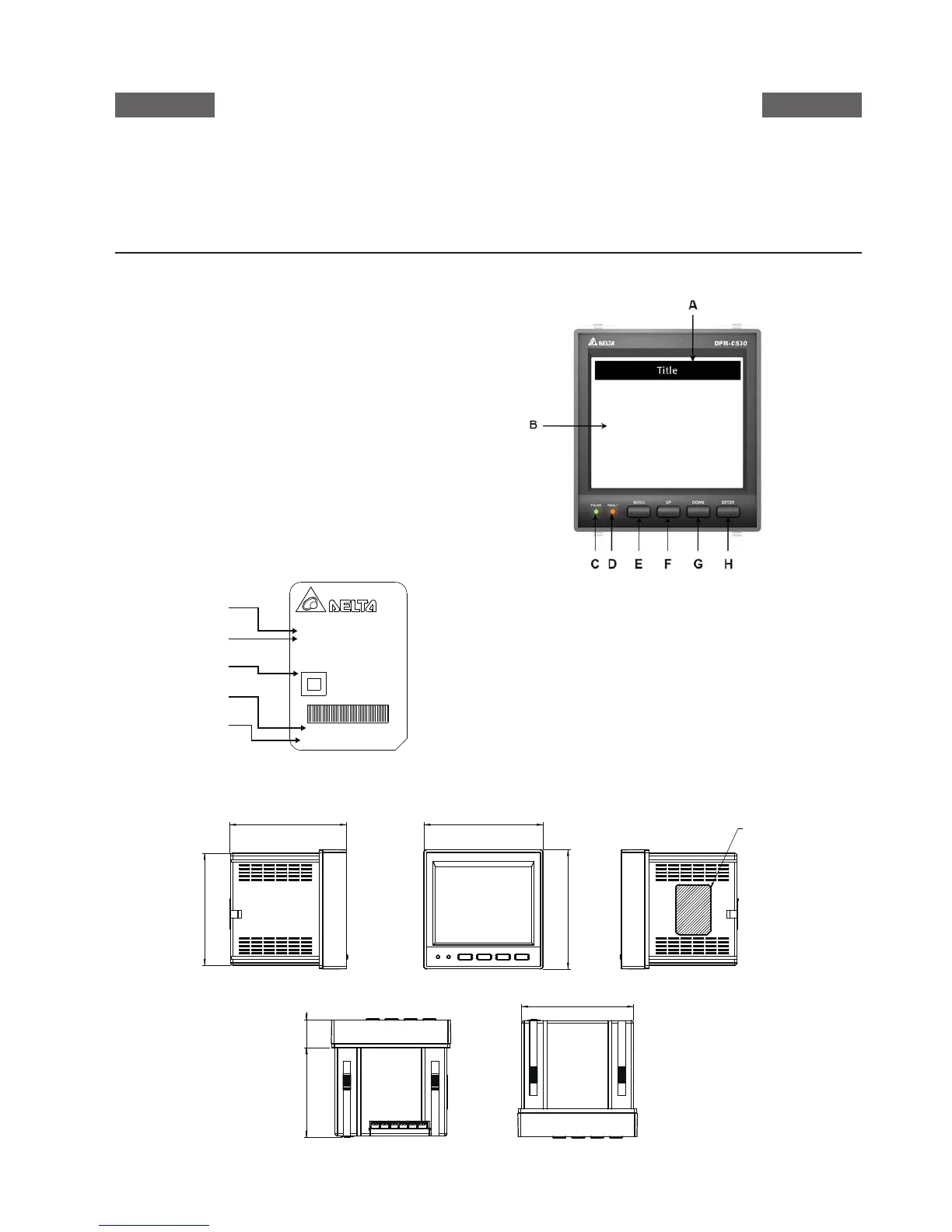

3.1 Operating Interface
DPM-C530A uses a LCD display that exhibits four pieces of measurement information on each
page. Diagram below is an illustration of the interface.
3.2 Product Name Tag
3.3 Exterior and Dimensions
Descriptions of Parts
A. Title
B. Area of display
C. Pulse light
D. Fault light
E. Menu key
F. Up key
G. Down key
H. Enter key
Descriptions:
MODEL : XXXXXXXXX
REV. : XX.XX
Input : 80~265VAC, 50/60Hz
100~300VDC
MAX 4.6W
XXXXXXXXXXXXXXXX
MADE IN XXXXXX
Model
Version
Certification
Serial Number
Country
SPEC LABEL
94.1
90
72.0 22.1
96
90
96
