Delta DTE10T Series User Manual

9
 Input Filter
Function
To avoid unstable PV display due to interferences, DTE10T offers the filter function. Instead of averaging the values, the filter function here
calculate the weighted average value of the “current PV” and “previous PV”.
The filter equation: PV (displayed value) = [previous PV x (filter times – 1) + current PV] / filter times
The bigger the filter times, the bigger the weight of the previous PV, and the smoother the temperature display, which is a good way to
suppress interferences.
How to Operate
Set up relevant parameters using the table below.
Parameter Address Default value Range
Filter times 10F7H 8 0~50
Filter range 10F9H 1.0 0.1~10.0

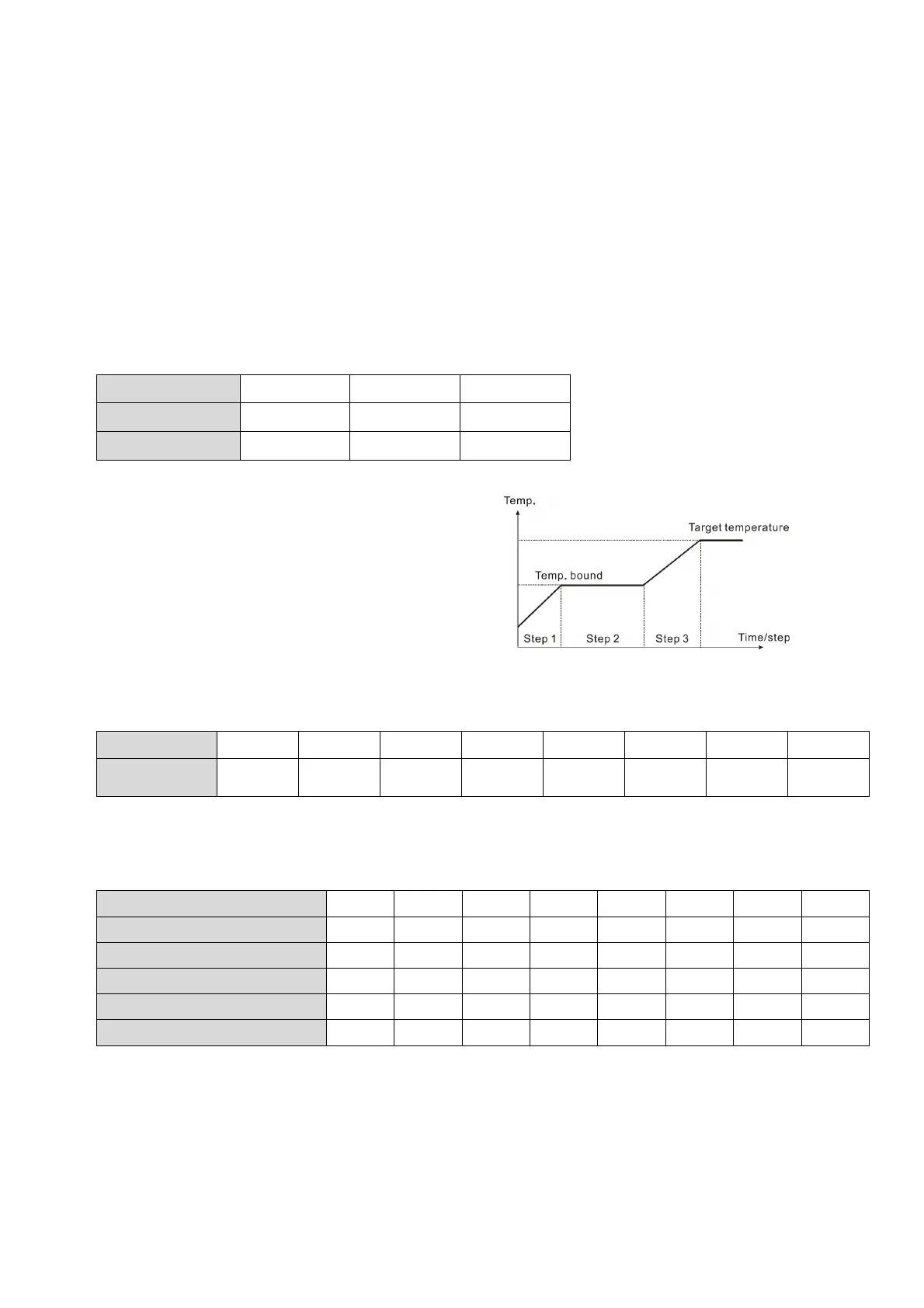

 Hot Runner Control
Function
The hot runner control includes 3 steps:
1. Heating up by constant output volume
2. Timed PID control (Soak)
3. Slope heating to the target temperature (SV)
How to Operate
1. Enable the hot runner control function: Write 1234H into the address 47F1H and then 0060H into address 4824H.
Bits in 4824H Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
Flag --
Hot runner
control
Slop
control
-- Latch CT EVENT --
Notes:
 The flag to enable hot runner control is at bit6 of 4824H (and bit5 as to be enabled at the same time). Write 0060H to set both bits on.
 If there is already a set value in 4824H and you would like to modify it, reset it to 0 before you set up a new value.
2. Set up relevant parameters using the table below.
CH CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Temp. bound（unit: 0.1°） 1960H 1961H 1962H 1963H 1964H 1965H 1966H 1967H
Constant output volume（unit: 0.1%） 1968H 1969H 196AH 196BH 196CH 196DH 196EH 196FH
Timed time（unit: min.） 19B0H 19B1H 19B2H 19B3H 19B4H 19B5H 19B6H 19B7H
Target temperature（uint: 0.1°） 1008H 1009H 100AH 100BH 100CH 100DH 100EH 100FH
Slop（unit: 0.1°） 1970H 1971H 1972H 1973H 1974H 1975H 1976H 1977H
Example
Assume the temperature bound is 100.0, constant output volume is 35.0, timed time is 15, target temperature is 200.0 and slope is 20.0, thus
1. The heater outputs by the 35% constant volume and waits for the temperature to rise to 100 degrees,
2. When the temperature hits 100 degrees, switch to the PID soak mode and retain the temperature constantly for 15 minutes.
3. When the time is up, switch to the slope control mode, executing the condition of a 20 degree temperature rise every minute.
4. When the heating achieves 200 degrees, the hot runner control is completed.
