DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-8
Mnemonic Operands Function Program steps
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
OR X, Y, M, S, T, C
Connect NO contact
in parallel
1~3
Explanations:
1. The OR instruction is used to connect NO contact in parallel.
2. Refer to instruction LD for more information on the supported firmware versions for each
modules.
Program example:

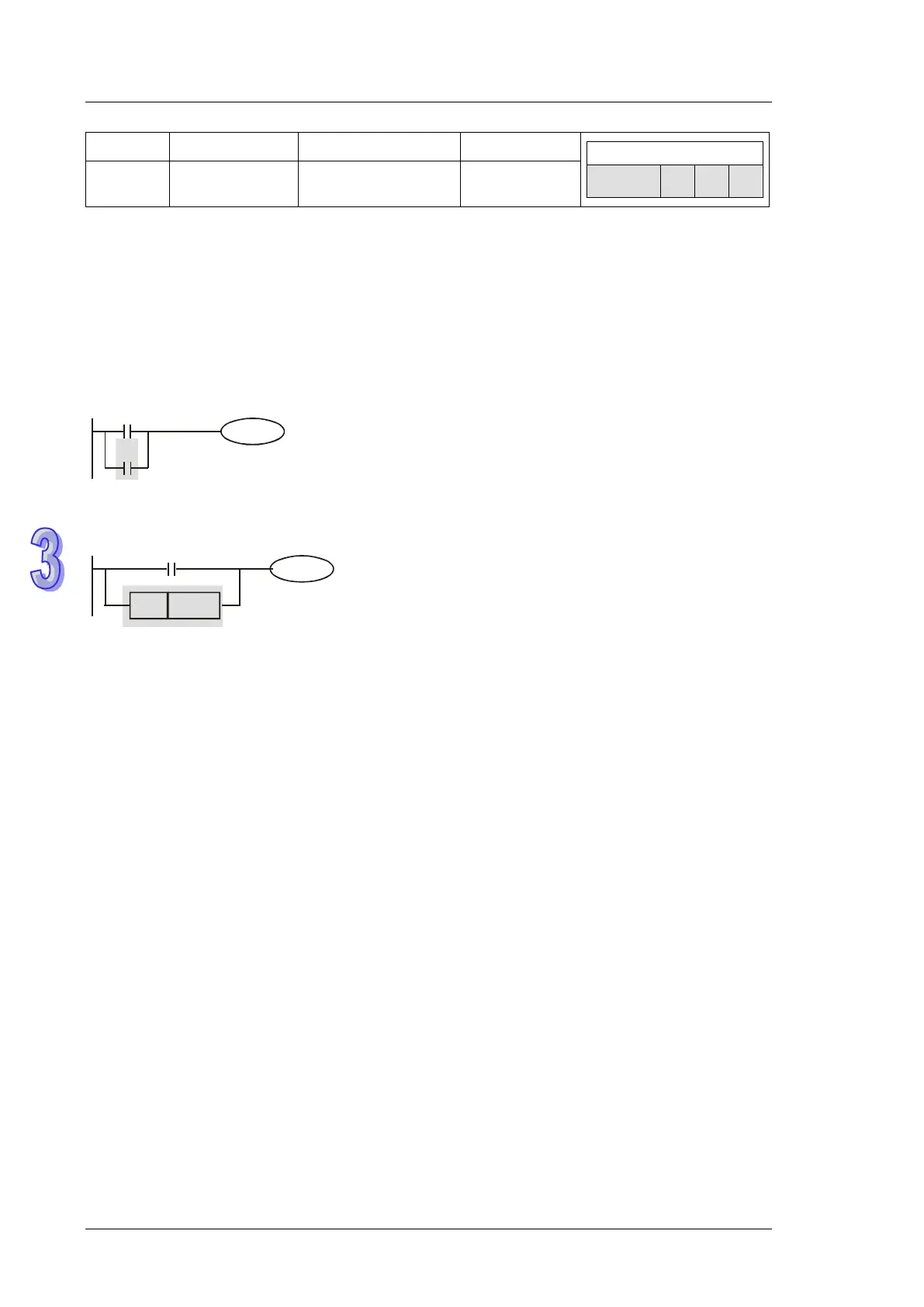

Ladder diagram:
X0
X1
Y1
Instruction: Operation:
LD X0 Load NO contact X0
OR X1 Connect NO contact X1 in parallel
OUT Y1 Drive Y1 coil
Ladder diagram:
X0
Y1
X0F1
LD
Instruction: Operation:
LD X0 Load NO contact X0
OR X0F1 Connect NO contact X5 in parallel
(Suppose F1=K5)
OUT Y1 Drive Y1 coil
