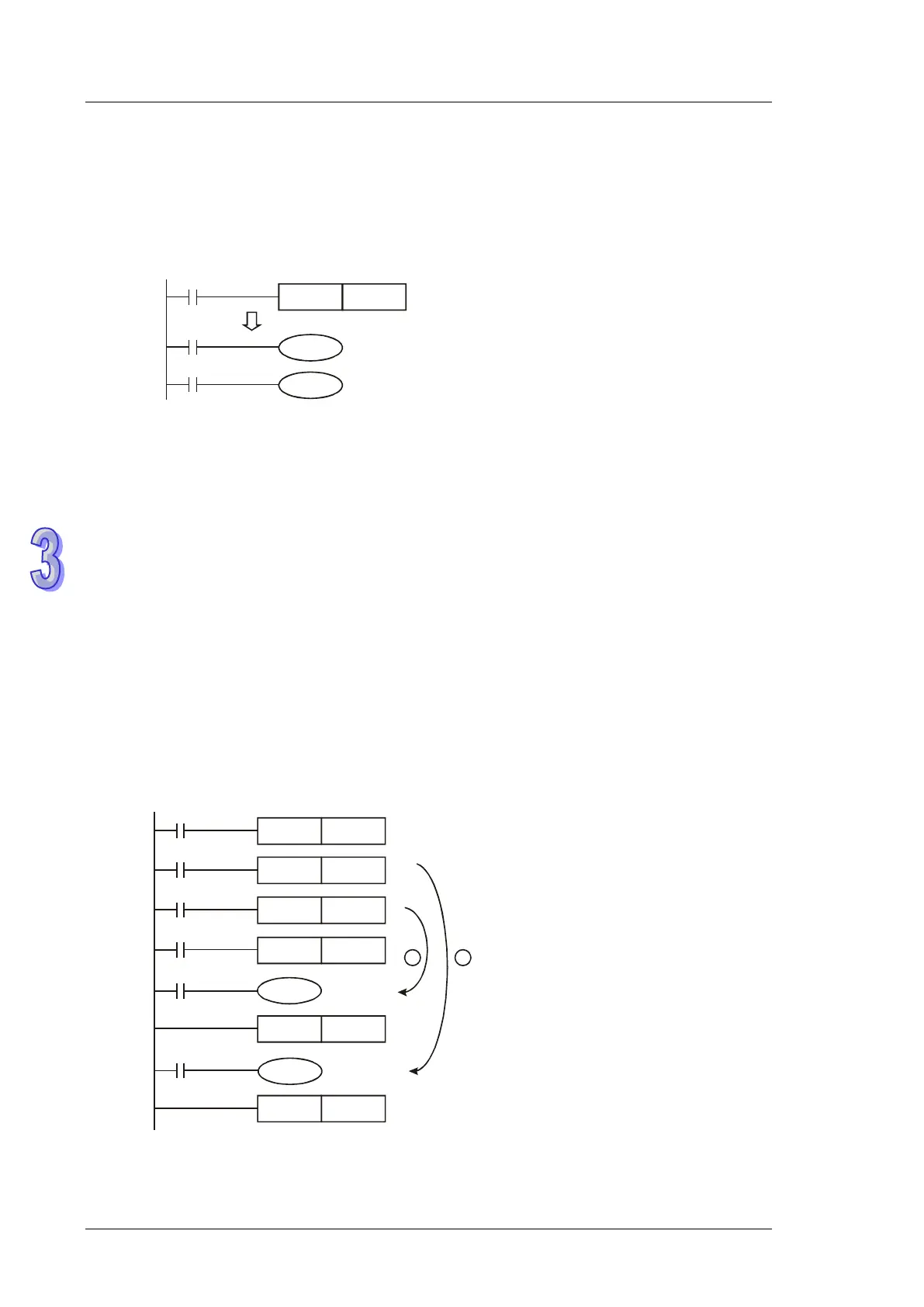

Program example 1:
When X0 = ON, the program will skip from address 0 to N (Pointer P1) automatically and keep on
executing. Instructions between address 0 and N will be skipped..
When X0 = OFF, program flow will proceed with the row immediately after the CJ instruction.
X0
X1
X2
CJ P1
Y1
Y2
0
N P1
P***
(CJ instruction)
Program example 2:
1. The instruction CJ between the instruction MC and the instruction MCR can be used in the five
conditions below.
a). The execution of the program jumps from the part of the program outside one MC/MCR
loop to the part of the program outside another MC/MCR loop.
b). The execution of the program jumps from the part of the program outside the MC/MCR
loop to the part of the program inside the MC/MCR loop.
c). The execution of the program jumps from the part of the program inside the MC/MCR loop
to the part of the program inside the MC/MCR loop.
d). The execution of the program jumps from the part of the program inside the MC/MCR loop
to the part of the program outside the MC/MCR loop.
e). The execution of the program jumps from the part of the program inside one the MC/MCR
loop to the part of the program inside another the MC/MCR loop.
X0
MC N0
X2
X3
X1
M1000
M1000
P1
P0
CJ
CJ
MC N1
N1
N0
P1
P0
Y1
Y0
MCR
MCR
