DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3
-188
API Mnemonic Operands Function
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
65 STMR
Special Timer
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
STMR: 7 steps
S
*
m
*
*
D
*
*
*
PULSE
16-bit
32-bit
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ES2/EX2/
EC5
SS2
SA2
SE
SX2
Operands:
S: No. of timer (T0~T183) m: Set value in timer (m = 1~32,767, unit: 100ms)
D: Start No. of output devices (occupies 4 consecutive devices)
Explanations:
1. STMR instruction is specifically used for delay-OFF, ON/OFF triggered timer and flashing
circuit.
2. The timer number (S) specified by STMR instruction can be used only once

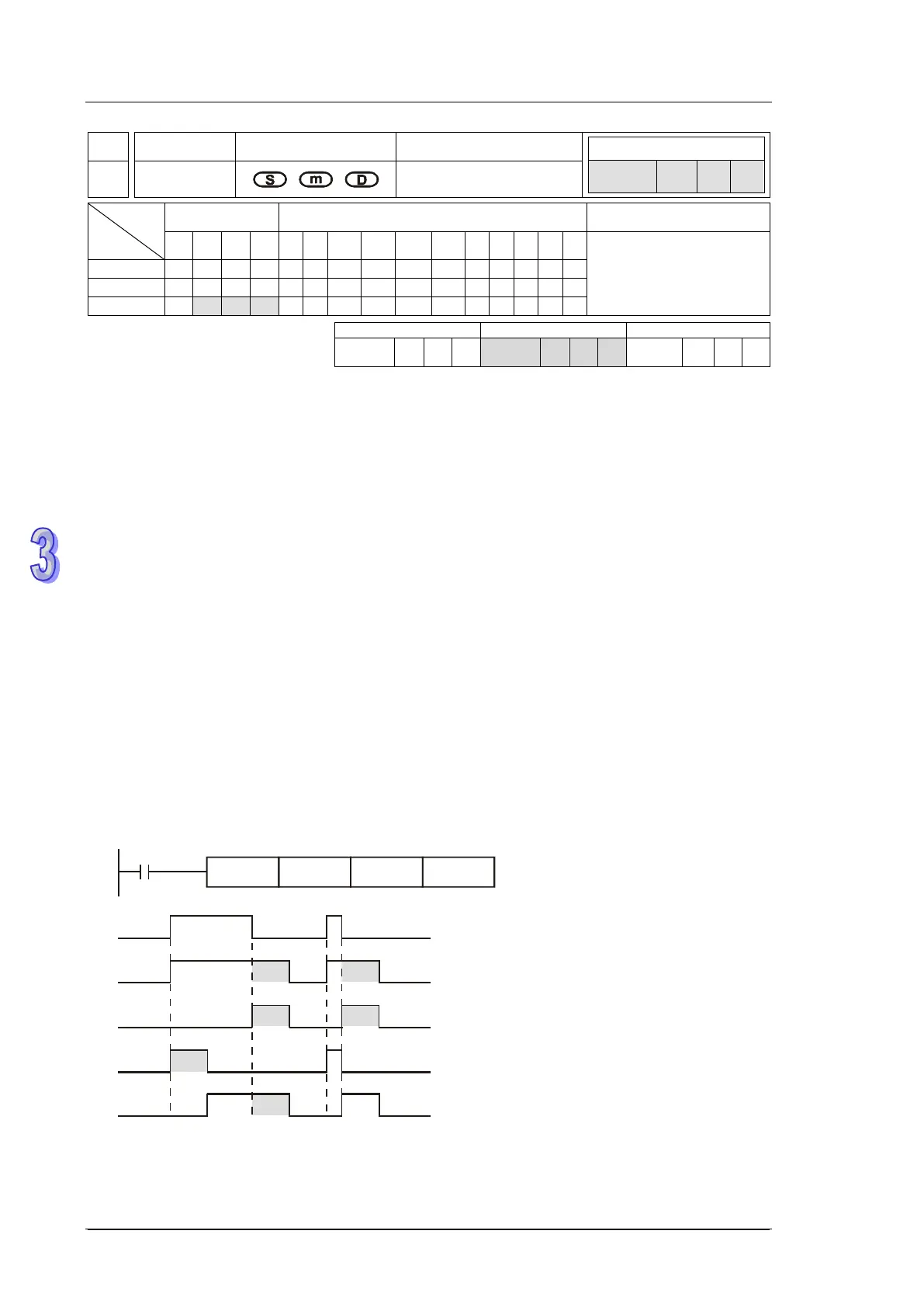

Program Example:
1. When X20 = ON, STMR sets T0 as the 5 sec special timer.
2. Y0 is the delay-OFF contact. When X20 is triggered, Y0 = ON; When X20 is OFF, Y0 = OFF
after a 5 sec delay.
3. When X20 goes from ON to OFF, Y1 = ON for 5 seconds.
4. When X20 goes from OFF to ON, Y2 = ON for 5 seconds.
5. When X20 goes from OFF to ON, Y3 = ON after a 5 second delay. When X20 turns from ON to
OFF, Y3 = OFF after a 5 second delay.
X20
STMR T0 K50 Y0
X20
Y0
Y1
Y2
Y3
5 sec
5 sec
5 sec
5 sec
5 sec
5 sec
