Delta DVP-ES2

3. Instruction Set
3-509

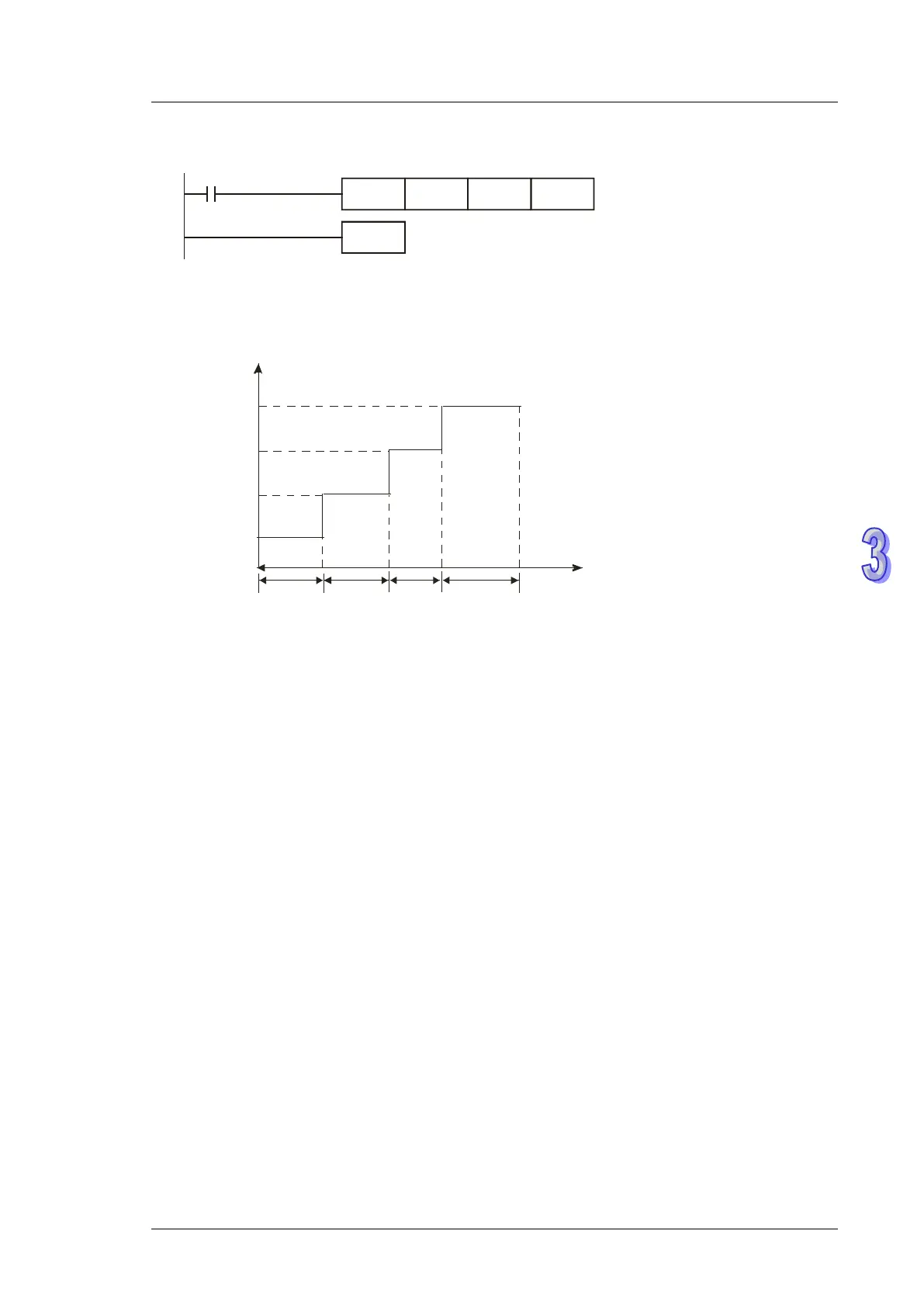

3. Current executing segment can be monitored by D301.
X0
D0
DPTPO
D300
Y0
EN
D
4. Timing diagram:
Frequency
(Hz)
t
t
t
t
1
2
....
40
(D1,D0)
(D3,D2)
(D159,D158)
(D5,D4)
(D157,D156)
....
....
(D7,D6)
Time (S)
Points to note:
1. Associated Flags:
M1029: CH0 (Y0) pulse output execution completed.
M1102: CH1 (Y2) pulse output execution completed
M1078: CH0 (Y0) pulse output pause (immediate)
M1104: CH1 (Y2) pulse output pause (immediate)
M1262: Enable cyclic output for table output function of DPTPO instruction. ON =
enable.
M1538: Indicating pause status of Y0
M1540: Indicating pause status of Y2
2. Special registers:
D1030: Low word of the present value of Y0 pulse output
D1031: High word of the present value of Y0 pulse output
D1336: Low word of the present value of Y2 pulse output
D1337: High word of the present value of Y2 pulse output
