DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-548

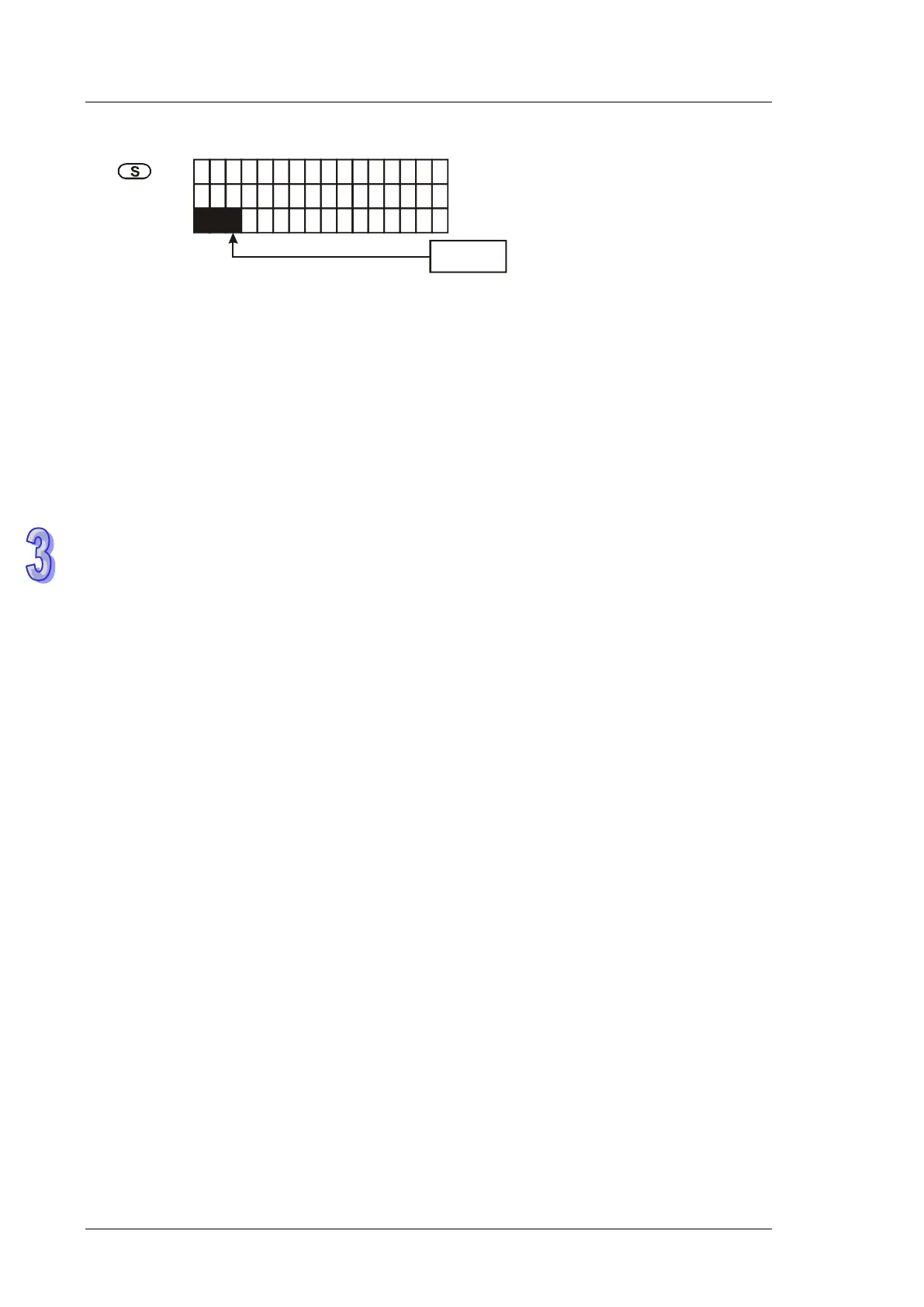

b0
D20
45
10 10 10 10 10 1 10 1
10 10 10 10 10 10 10 10
1 10 10 10 10 10 10
b47
0
0 1
0 1
Pointer
D0
D1
D2
Points to note:
Associated flags and registers:
M1089: Indicating the end of Matrix. When the comparison reaches the last bit, M1089 = ON
M1092:
Indicating pointer error. When the pointer Pr exceeds the comparison range, M1092 =
ON.
M1093: Matrix pointer increasing flag. Adding 1 to the current value of the Pr
M1094: Matrix pointer clear flag. Clear the current value of the Pr to 0
M1095: Carry flag for matrix rotation/shift/output
