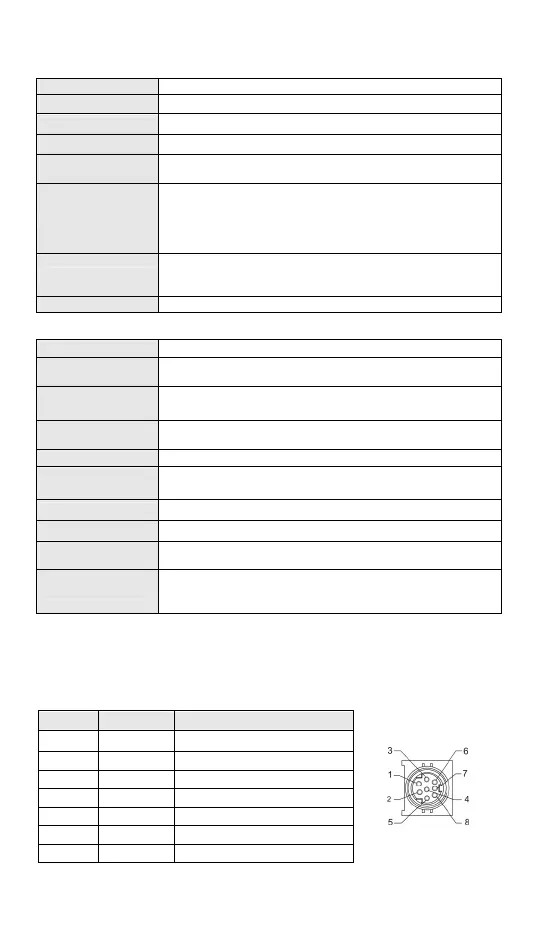

 Electrical Specifications
 Power Supply
Power supply voltage 24 VDC (-15 to +20%)
Power supply fuse 3 A/30 VDC, Polyswitch
Insulation voltage 500 VDC (Secondary-PE)
Power consumption 8 W Max.
Shock/vibration
immunity
Standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC
68-2-27 (TEST Ea)
Noise immunity
ESD (IEC 61131-2, IEC 61000-4-2): 8 kV Air Discharge
EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2 kV, Digital I/O: 1
kV, Analog & Communication I/O: 1 kV
Damped-Oscillatory Wave: Power Line: 1 kV, Digital I/O: 1 kV
RS (IEC 61131-2, IEC 61000-4-3): 26 MHz ~ 1GHz, 10 V/m
Ambiance
Operation: 0 to 55°C (temperature), 50 to 95% (humidity), pollution
degree 2
Storage: -25 to 70°C (temperature), 5 to 95% (humidity)
Weight Approx. 240g
 I/O Specifications
I/O channels 8 input channels, 4 output channels
I/O channel types
8 high-speed digital input channels, 4 high-speed digital output
channels
I/O terminals
Input terminals: I0, I1, I2, I3, I4, I5, I6, I7
Output terminals: Q0, Q1, Q2, Q3
Common terminal for
input points
Wiring terminal S/S (for connecting to the positive or negative pole of
the power supply)
Input types Sink or Source
I/O delay time
Input: 2.5 µs (OFFON), 5 µs (ONOFF)
Output: 2 µs (OFFON), 3 µs (ONOFF)
Input signal current 24 VDC, 5 mA
Max. I/O cable length Shielded: 500m; Not shielded: 300m
Power supply for
output points
24 VDC (-15 to +20%)
#1
Max. load
Resistive load: 0.5 A/1 point (2A/ZP)
Conductive load: 13 W (30 VDC)
Light bulb load: 2.5 W (30 VDC)
#1: UP and ZP must use external auxiliary 24 VDC power supply (-15 to 20%).
 COM Ports
 COM1 (RS-232)
DVP10MC11T offers one RS-232 port. See the table below for the PIN definitions.
PIN Signal Definition
1, 2 +5V 5V power supply (positive pole)
3 GND Earth
4 Rx Receiving data
5 Tx Sending data
6 GND Earth
7 NC Reserved
8 GND Earth
