Delta DVP06PT-S User Manual

- 2 -
4. I/O terminals 5. I/O point indicator 6. Mounting holes
7. Specification label 8. I/O module connection port 9. I/O module clip
10. DIN rail (35mm) 11. I/O module clip
12. RS-485 communication
port (DVP04PT-S)
13. Power connection port
(DVP04PT-S)
14. I/O connection port

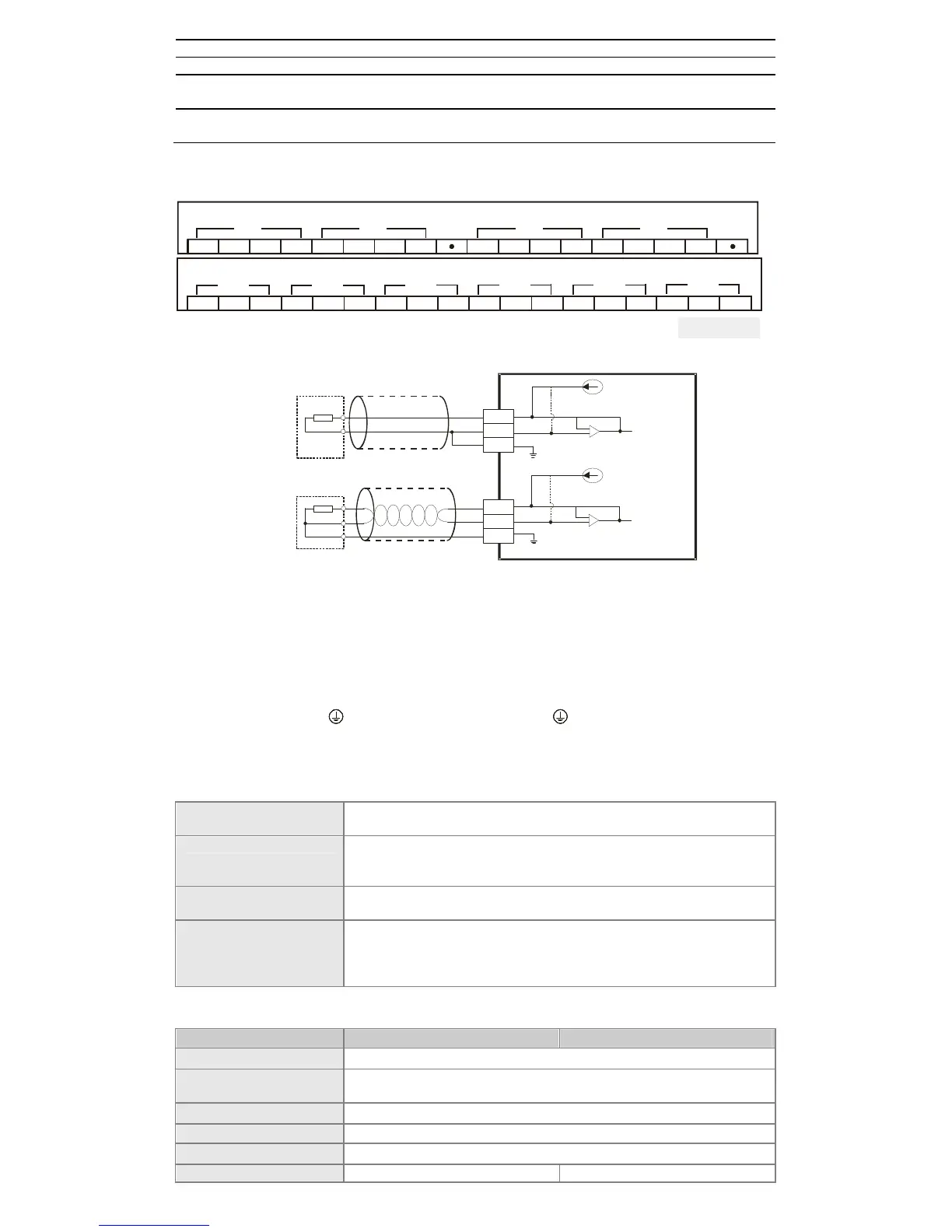

 I/O Terminal Layout
L-L+FGL-L+
DVP04PT-S
FGI- L+FGI-L-L+ FGI-L-I-
CH1 Ch2 Ch3 Ch4
[ Figure 2 ]
L-L+L-L+
DVP06PT
I- L+I-L-L+ I-L-I-
CH1
L-L+ I- L+ I-L-
CH2
CH3 CH4 CH5 CH6
 External Wiring
*2
,
AG
Shielded cable*1
AG
CH1
2-Wire
CH6
3-Wire
L+
L-
I-
Pt1000
Pt100
L+
L-
I-
*2
Shieldedcable*1
Note1: Use only the wires that are packed with the temperature sensor for analog input and
separate from other power line or any wire that may cause noise.
Note2: 3-wire RTD sensor provides a compensation loop that can be used to subtract the wire
resistance while 2-wire RTD sensor has no mechanism to compensate.
Note3: If there is noise, please connect the shielded cables to the system earth point, and then
ground the system earth point or connect it to the distribution box.
Note4: Please keep wires as short as possible when connecting the module to a device whose
temperature is going to be measured, and keep the power cable used as far away from
the cable connected to a load as possible to prevent noise interference.
Note5: Please connect on a power supply module and on the temperature module to a
system ground, and then ground the system ground or connect the system ground to a
distribution box.
 Electrical Specifications
Max. rated power
consumption
2W
Operation/storage
Operation: 0°C~55°C (temp.), 5~95% (humidity), pollution degree
2
Storage: -25°C~70°C (temp.), 5~95% (humidity)
Vibration/shock
resistance
International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/
IEC61131-2 & IEC 68-2-27 (TEST Ea)
Series connection to
DVP-PLC MPU
The modules are numbered from 0 to 7 automatically by their
distance from MPU. No.0 is the closest to MPU and No.7 is the
furthest. Maximum 8 modules are allowed to connect to MPU and
will not occupy any digital I/O points.
 Functional Specifications
DVP06PT-S Celsius (°C) Fahrenheit (°F)
Analog input channel 6 channels per module
Sensors type
2-wire/3-wire Pt100 / Pt1000 3850 PPM/°C (DIN 43760 JIS
C1604-1989) / Ni100 / Ni1000 / LG-Ni1000 / Cu100 / Cu50
Current excitation 1.53mA / 204.8uA
Temperature input range Please refer to the temperature/digital value characteristic curve.
Digital conversion range Please refer to the temperature/digital value characteristic curve.
Resolution 16 bits (0.1°C) 16 bits (0.1°F)
