Delta DVP06PT-S User Manual

- 5 -

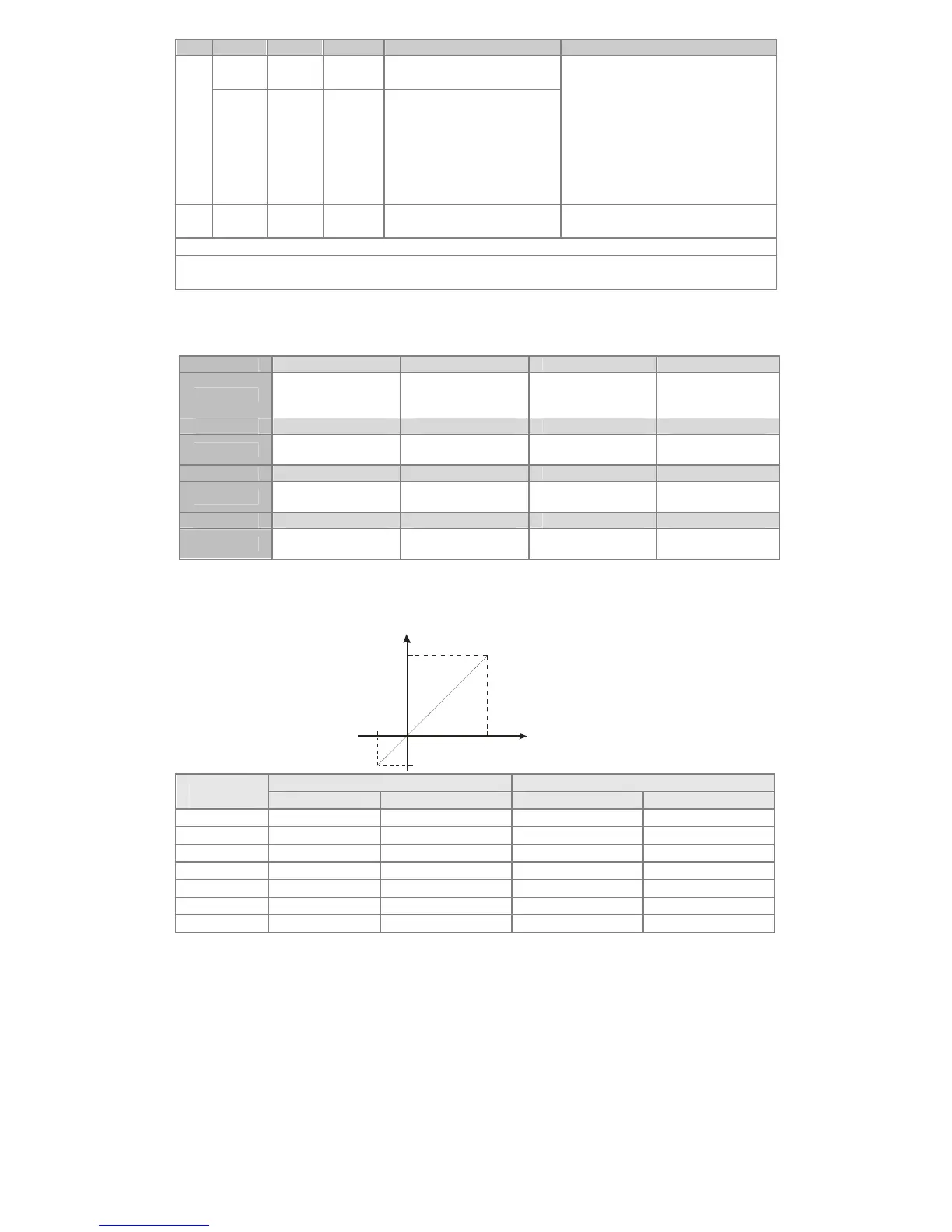

CR# Address Latched Attribute Register content Description
And Error LED indicator
setting
If b2~b0 are set to 100, all the
setting values of CH1 will be
reset to the default settings. To
reset CH1~4 to default settings,
set b11~0 to H’924. b12~15
correspond to CH1~4,
when bit is ON, the scale
exceeds the range, and the
Error LED indicator flashes.
-- X R/W
DVP06PT-S:
CH1~CH4
Reset to default setting
And Error LED indicator
setting
#34 H’4086 O R Firmware version
Display version in hexadecimal.
ex: H’010A = version 1.0A
#35 ~ #48 For system use
Symbols: O means latched. X means not latched. R means can read data by using FROM
instruction or RS-485. W means can write data by using TO instruction or RS-485.
 CR#30 is the error code register.
Note: Each error code will have a corresponding bit and should be converted to 16-bit binary
numbers (Bit0~15). Two or more errors may happen at the same time. Refer to the chart
below:
Bit number 0 1 2 3
Description
Power source
abnormal
The contact is
not connected to
anything.
Reserved Reserved
Bit number 4 5 6 7
Description
Hardware
malfunction
Reserved
average number
error
Instruction error
Bit number 8 9 10 11
Description
CH1 Abnormal
conversion
CH2 Abnormal
conversion
CH3 Abnormal
conversion
CH4 Abnormal
conversion
Bit number 12 13 14 15
Description
CH5 Abnormal
conversion
CH6 Abnormal
conversion
Reserved Reserved
 Temperature/Digital Value Characteristic Curve
The mode of measuring Celsius (Fahrenheit) temperature:
Max.
Min.
Digital output
Temperature input
Min.
Max.
Platinum
resistor
Temperature range Digital value conversion range
°C (Min./Max.) °F (Min./Max.) °C (Min./Max.) °F (Min./Max.)
Pt100 -180 ~ 800°C -292 ~ 1,472°F K-1,800 ~ K8,000 K-2,920 ~ K14,720
Ni100 -80 ~ 170°C -112 ~ 338°F K-800 ~ K1,700 K-1,120 ~ K3,380
Pt1000 -180 ~ 800°C -292 ~ 1,472°F K-1,800 ~ K8,000 K-2,920 ~ K14,720
Ni1000 -80 ~ 170°C -112 ~ 338°F K-800 ~ K1,700 K-1,120 ~ K3,380
LG-Ni1000 -60 ~ 200°C -76 ~ 392°F K-600 ~ K2,000 K-760 ~ K3,920
Cu100 -50 ~ 150°C -58 ~ 302°F K-500 ~ K1,500 K-580 ~ K3,020
Cu50 -50 ~ 150°C -58 ~ 302°F K-500 ~ K1,500 K-580 ~ K3,020
