Delta DVP20SX211T User Manual

- 1 -
…………………………………………………………………  ENGLISH  ……………………………………………………………………
Thank you for choosing Delta DVP-SX2. DVP-SX2 is a 20-point (8DI + 6 DO + 4AI +
2AO) PLC MPU, offering various instructions and is with 16k steps program memory,
able to connect with all Slim series extension models, including digital input/output (max.
480 input/output extension points), analog modules (A/D, D/A transformation and
temperature units) and all kinds of new high-speed extension modules. Its 2-group
high-speed (100kHz) pulse outputs and the one new 2-axis interpolation instructions
satisfy all kinds of applications. DVP-SX2 is small in size, and it can be installed easily.
Users do not have to install any batteries in DVP-SX2 series PLCs. The PLC programs
and the latched data are stored in the high-speed flash memories.
EN  DVP-SX2 is an OPEN-TYPE device. It should be installed in a control cabinet
free of airborne dust, humidity, electric shock and vibration. To prevent
non-maintenance staff from operating DVP-SX2, or to prevent an accident from
damaging DVP-SX2, the control cabinet in which DVP-SX2 is installed should be
equipped with a safeguard. For example, the control cabinet in which DVP-SX2 is
installed can be unlocked with a special tool or key.
EN  DO NOT connect AC power to any of I/O terminals, otherwise serious damage
may occur. Please check all wiring again before DVP-SX2 is powered up. After
DVP-SX2 is disconnected, Do NOT touch any terminals in a minute. Make sure
that the ground terminal
on DVP-SX2 is correctly grounded in order to
prevent electromagnetic interference.
FR  DVP-SX2 est un module OUVERT. Il doit être installé que dans une enceinte
protectrice (boitier, armoire, etc.) saine, dépourvue de poussière, d’humidité, de
vibrations et hors d’atteinte des chocs électriques. La protection doit éviter que
les personnes non habilitées à la maintenance puissent accéder à l’appareil (par
exemple, une clé ou un outil doivent être nécessaire pour ouvrir a protection).
FR  Ne pas appliquer la tension secteur sur les bornes d’entrées/Sorties, ou l’appareil
DVP-SX2 pourra être endommagé. Merci de vérifier encore une fois le câblage
avant la mise sous tension du DVP-SX2. Lors de la déconnection de l’appareil,
ne pas toucher les connecteurs dans la minute suivante. Vérifier que la terre est
bien reliée au connecteur de terre afin d’éviter toute interférence
électromagnétique.

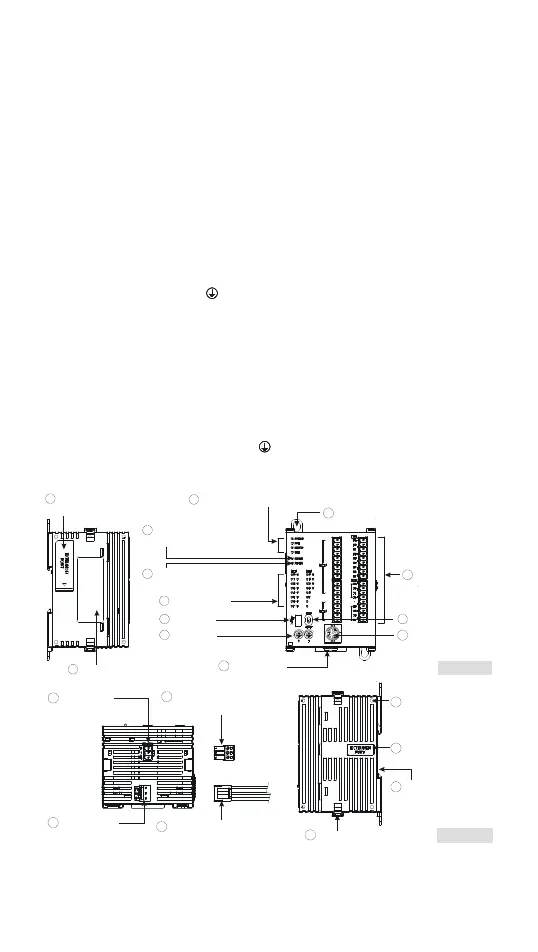

 Product Profile
Direct fastening hole
Nameplate
[ Figure 1 ]
I/O terminal
COM1 port
(RS-232)
Left-side module
connection port
DIN rail clip
RUN/STOP switch
I/O indicator
VR0/VR1
POWER/RUN/ERROR/USB indicator
COM1 communication
indicator (RS-232)
COM2 communication
indicator (RS-485)
2
4
5
8
6
11
13
1
USB port
7
10
V2+
AG
IO1
VO1
IO0
VO0
FE
I3+
VI3-
VI2-
V3+
I2+
VI0-
I1+
VI1-
V1+
V0+
I0+
3
9
12
3PIN removable terminal
(standard component)
I/O module
positioning hole
[ Figure 2 ]
I/O module
connection port
COM2 port
(RS-485)
Power input
port
I/O module fastening clip
Mounting slot
(35mm)
Power input connection
cable (standard component)
14
15
16
17
18
19
20
21
