Delta DVP20SX211T User Manual

- 2 -

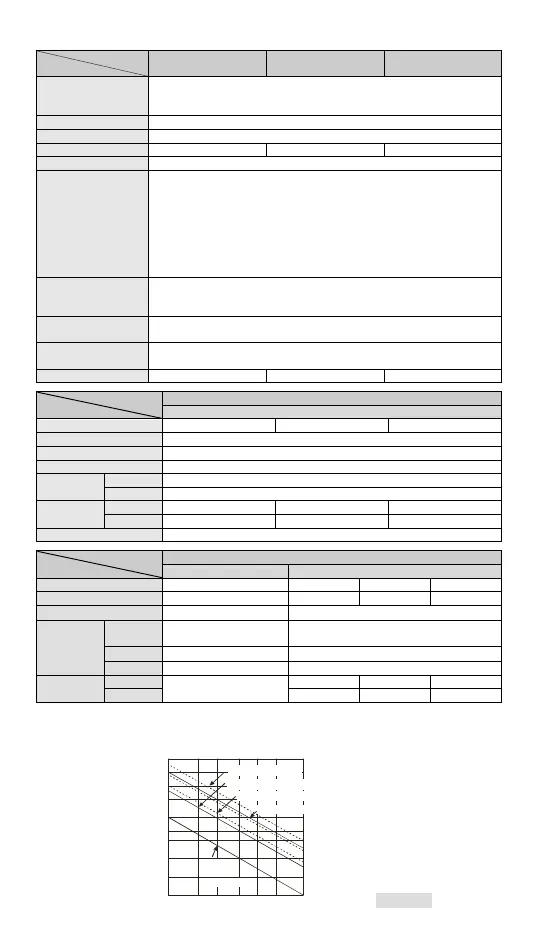

 Electrical Specifications
Model
Item
DVP20SX211R DVP20SX211T DVP20SX211S
Power supply voltage
24VDC (-15% ~ 20%)
(with counter-connection protection on the polarity of DC input power)
DVPPS01(PS02): input 100-240VAC, output 24VDC/1A(PS02: 2A)
Inrush current Max. 7.5A@24VDC
Fuse capacity 2.5A/30VDC, Polyswitch
Power consumption 4.7W 4W 4W
Insulation resistance > 5MΩ (all I/O point-to-ground: 500VDC)
Noise immunity
ESD (IEC 61131-2, IEC 61000-4-2): 8kV Air Discharge
EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2kV, Digital I/O: 1kV,
Analog & Communication I/O: 1kV
RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m
Surge(IEC 61131-2, IEC 61000-4-5) :
DC power cable: differential mode ±0.5 kV
analog I/O, RS-232, USB (shielded): Common mode ±1 kV
digital I/O, RS-485 (unshielded): Common mode ±1 kV
Grounding
The diameter of grounding wire cannot be smaller than the wire
diameter of terminals 24V and 0V (All DVP units should be grounded
directly to the ground pole).
Operation / storage
Operation: 0°C ~ 55°C (temp.), 50 ~ 95% (humidity), Pollution degree2
Storage: -25°C ~ 70°C (temp.), 5 ~ 95% (humidity)
Vibration / shock
resistance
International standards: IEC61131-2, IEC 68-2-6 (TEST
Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea)
Weight (g) 243g 224g 227g
Spec.
Items
Input Point
24VDC (-15% ~ 20%) single common port input
Input No. X0, X2 X1, X3 X4 ~ X7
Input type DC (SINK or SOURCE)
Input Current (± 10%) 24VDC, 5mA
Input impedance 4.7K Ohm
Action level
OffOn > 15VDC
OnOff < 5VDC
Response
time
OffOn < 2.5μs < 10μs < 20us
OnOff < 5μs < 20μs < 50us
Filter time Adjustable within 0 ~ 20ms by D1020 (Default: 10ms)
Spec.
Items
Output Point
Relay Transistor
Output No. Y0 ~ Y5 Y0, Y2 Y1, Y3 Y4, Y5
Max. frequency 1Hz 100kHz 10kHz 1kHz
Working voltage 250VAC, < 30VDC
5 ~ 30VDC
#1
Max. load
Resistive 1.5A/1 point (5A/COM)
SX211T: 0.5A/1 point (3A/ZP)
SX211S: 0.3A/1 point (1.8A/UP)
Inductive
#2
15W (30VDC)
Lamp 20WDC/100WAC 2.5W (30VDC)
Response
time
OffOn
Approx. 10 ms
2μs 20μs 100μs
OnOff 3μs 30μs 100μs
#1: DVP20SX211T: UP, ZP must work with external auxiliary power supply 24VDC (-15% ~
+20%), rated consumption approx. 3mA/point.
DVP20SX211S: UP, ZP must work with external auxiliary power supply 5~30VDC, rated
consumption approx. 5mA/point.
#2: Life curves
Contact
Current(A)
0.5
0.1
0.2
50
0.3 0.7 1 2
200
300
500
100
1000
2000
3000
O
p
e
r
a
t
i
o
n
(
X
1
0
)
3
120VAC Resistive
30VDC Inductive(t=7ms)
240VAC Inductive(cos 0.4) ψ =
120VAC Inductive(cos =0.4) ψ
30VDC
Inductive
(t=40ms)
[ Figure 3 ]
