9

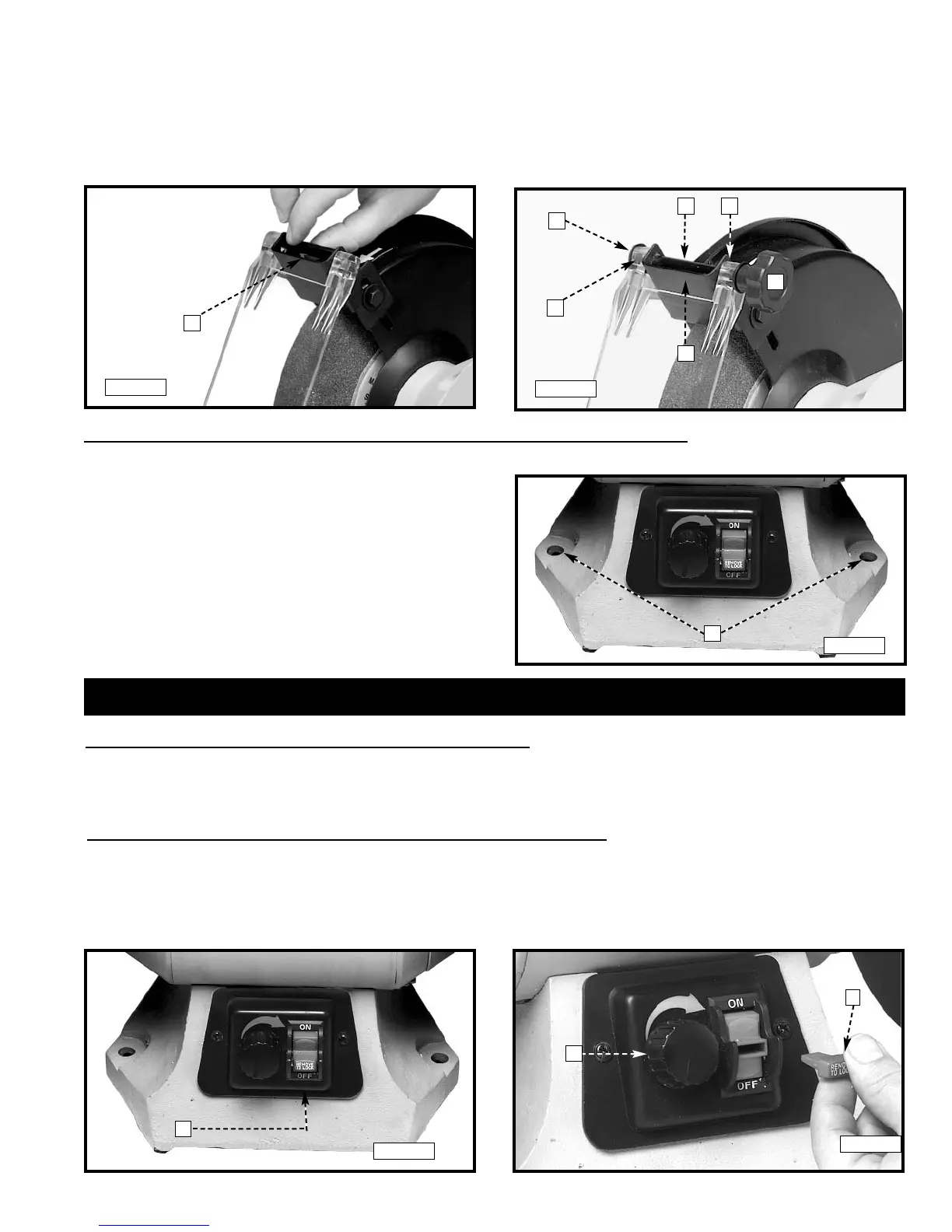

2. Align the holes in the eye shield with the holes in the spark guard. Place the eye shield spacer (A) Fig. 5 in the
space in the spark guard.
3. Insert the eye shield bolt (A) Fig. 6 through the hole in the eye shield (B),the eye shield spacer (C), and the spark
guard (D).
4. Place a 1/4" flat washer (E) Fig. 6 on the end of the eye shield bolt. Attach the eye shield knob (F) to the end of
the eye shield bolt.
5. Install the other eye shield in the same manner.
FASTENING GRINDER TO SUPPORTING SURFACE
If, during operation, there is a tendency for the
grinder to tip over, slide, or walk, the grinder must be
secured to the supporting surface, using fasteners
(not supplied) through the two holes (A) Fig. 7 in the
grinder base.
The on/off switch (A) Fig. 8 is located on the front of the Grinder. To turn the machine “ON”, lift the switch to the “ON”
position. To turn the machine “OFF”, move the switch down to the “OFF” position.
IMPORTANT: When the machine is not in use, lock the switch in the “OFF” position to prevent unauthorized use. Lock
the grinder by grasping the switch toggle (A) and pulling it out of the switch (Fig. 9). With the switch toggle (A) removed,
the switch will not operate. However, should the switch toggle be removed while the grinder is running, the machine
can be turned “OFF” once, but cannot be restarted without inserting the switch toggle (A).
Fig. 5
Fig. 6
Fig. 7
Fig. 8
A
A
B
C
D
E
F
A
OPERATION
ST
ARTING AND STOPPING GRINDER
LOCKING SWITCH IN THE “OFF” POSITION
A
A
B
Fig. 9
