18 Series Installation - Single Units
Jetted Shower XO
®

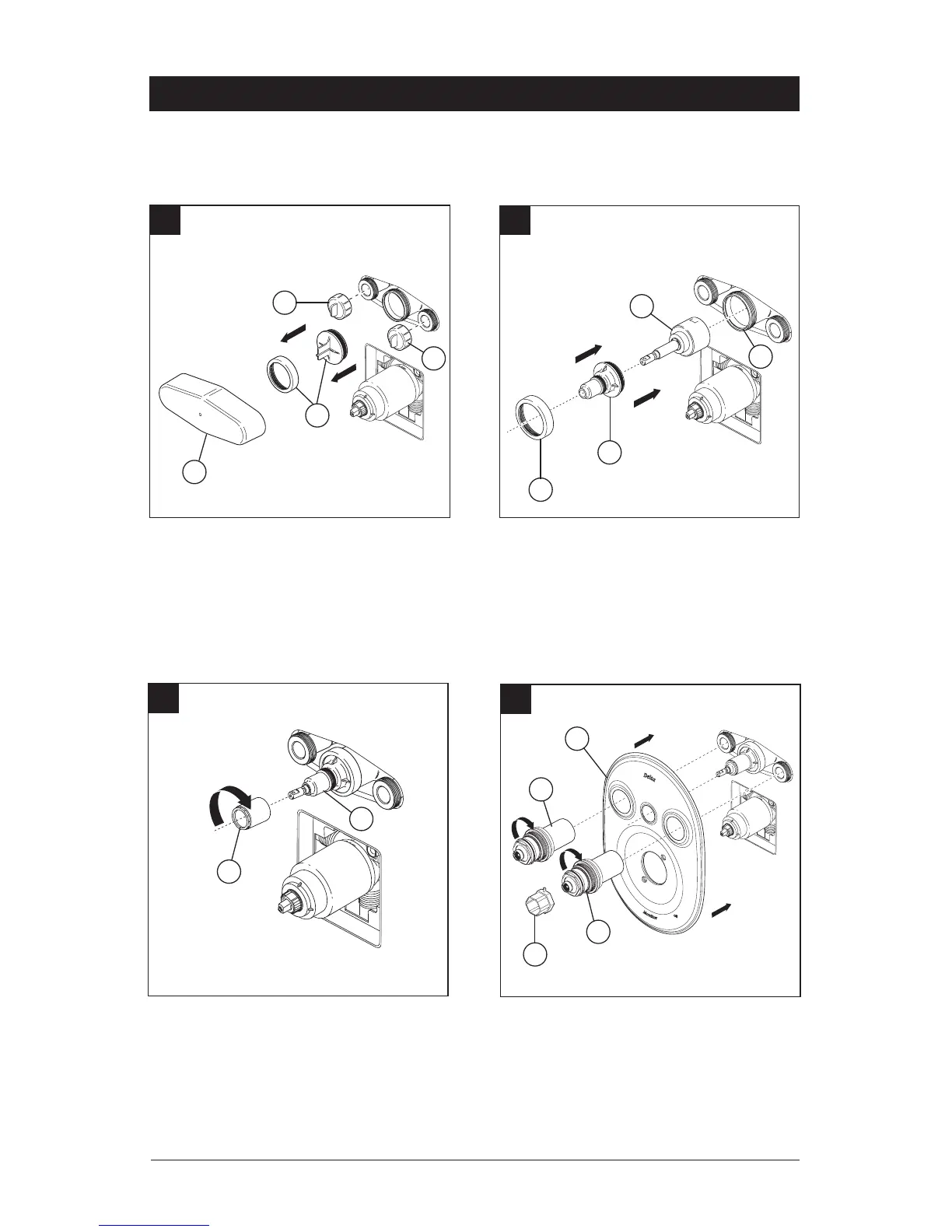

Jet Module Cartridge and Trim Installation
Turn off water supplies. Remove
plasterguard (1), test caps (2), bonnet nut
and test cap (3) from the body.
Install cartridge (1) into body (2). Slide
sleeve (3) over cartridge stem and onto body.
Secure with bonnet (4). Ensure bonnet is
tightened securely.
A.
B.
2
2
3
1
2
4
3
Thread trim sleeve (1) onto threaded sleeve (2).
Tighten securely with wrench.
C.
2
1
Place escutcheon (1) over the jet body module.
Thread the jet sleeve assemblies (2) onto the
jet body module. Use wrench (3) to tighten the
sleeve assemblies. CAUTION: TIGHTEN UNTIL
THE ESCUTCHEON IS FLAT AGAINST THE
WALL. DO NOT OVERTIGHTEN.
D.
3
1
2
1
2
