Delta Jetted Shower

14
3

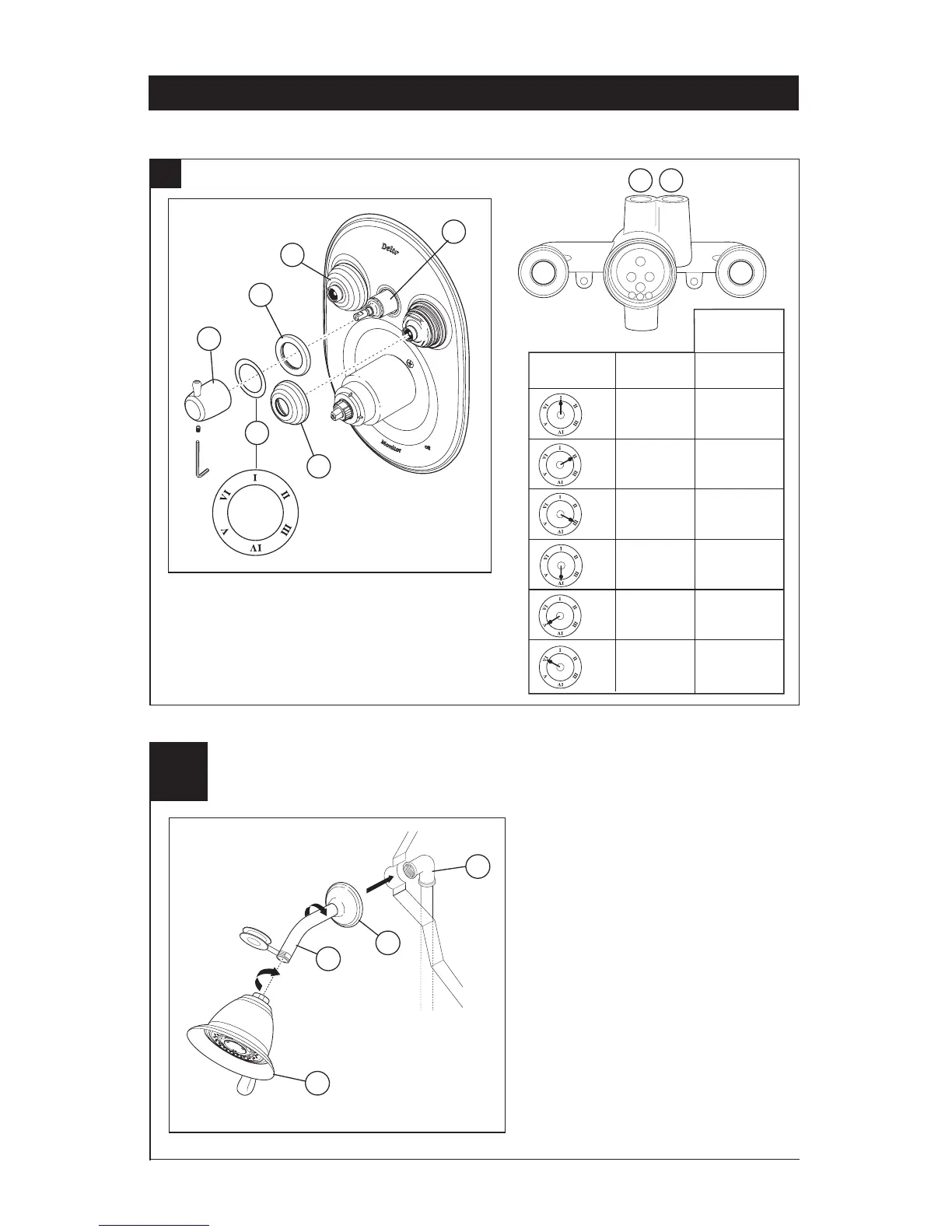

Showerhead Installation
Connect top outlet (1) to shower arm (2)
with proper fittings. Apply plumber tape
to pipe threads on both ends. To prevent
damage to finish on shower arm, insert
wall end of shower arm into shower
flange (3) before screwing arm into
riser connection. Thread showerhead (4)
onto shower arm. Do not overtighten
showerhead.
3
2
1
4
18 Series Installation - Single Units
Jetted Shower XO
®
Jet Module Cartridge and Trim Installation
Assemble label (1) onto trim ring (2). Slide trim
ring onto sleeve (3) until it bottoms out on the
escutcheon. Install handle (4) onto stem, tighten
set screw to secure. Thread the bonnet assem-
blies (5) onto the jet sleeve assemblies.
E.
2
3
1 2
33
1
4
5
5
1
Handle
Position
1 & 2
2
2 & 3
3
1 & 3
Open
Ports
VI
V
IV
III
II
I
Open
Ports
Non Shared
Cartridge
1
N/A
2
N/A
3
N/A
