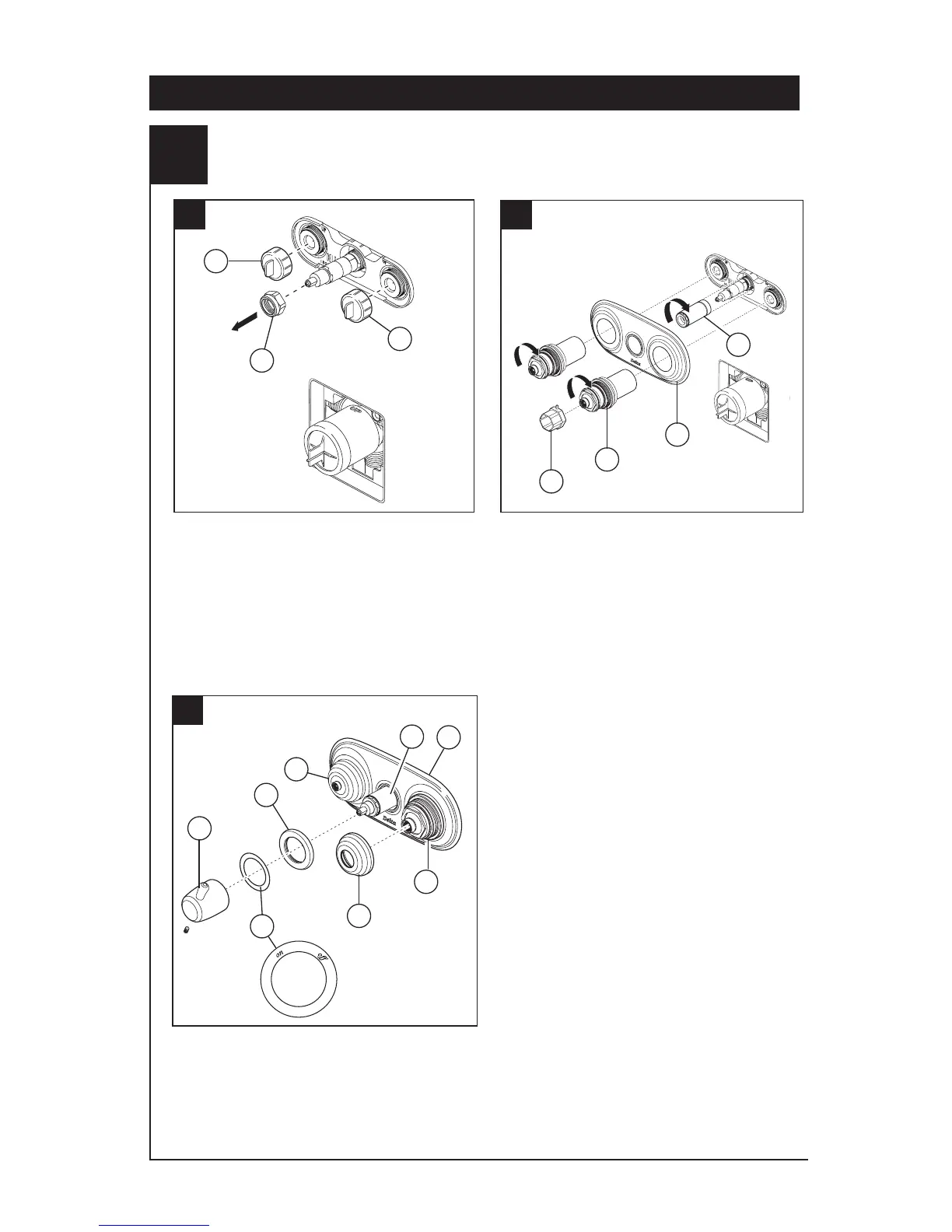

Jetted Shower™ Jet Module Trim Installation
Turn off water supplies. Unscrew test caps
(1) from the body. If this is not a thin wall
mounting, the entire plasterguard may be
removed. Remove bonnet nut (2) from
the body.
Thread sleeve (1) onto brass body, use wrench
to tighten. Place the oval escutcheon (2) over
jet body module. Thread the jet sleeve
assemblies (3) onto the jet body module. Use
the wrench (4) to tighten the sleeve assemblies.
CAUTION: DO NOT OVERTIGHTEN. TIGHTEN
UNTIL THE ESCUTCHEON IS FLAT AGAINST
THE WALL.
3
18 Series Installation - Separate Units
A.
B.
1
1
2
1
2
Assemble the off/on label (1) onto trim ring (2).
Slide trim ring onto sleeve (3) until it bottoms
out on the escutcheon (4). Install handle (5)
onto stem, tighten set screw to secure. Thread
the bonnet assemblies (6) onto the jet sleeve
assemblies (7).
1
2
3
4
5
6
6
7
C.
4
3
