Jetted Shower XO
®

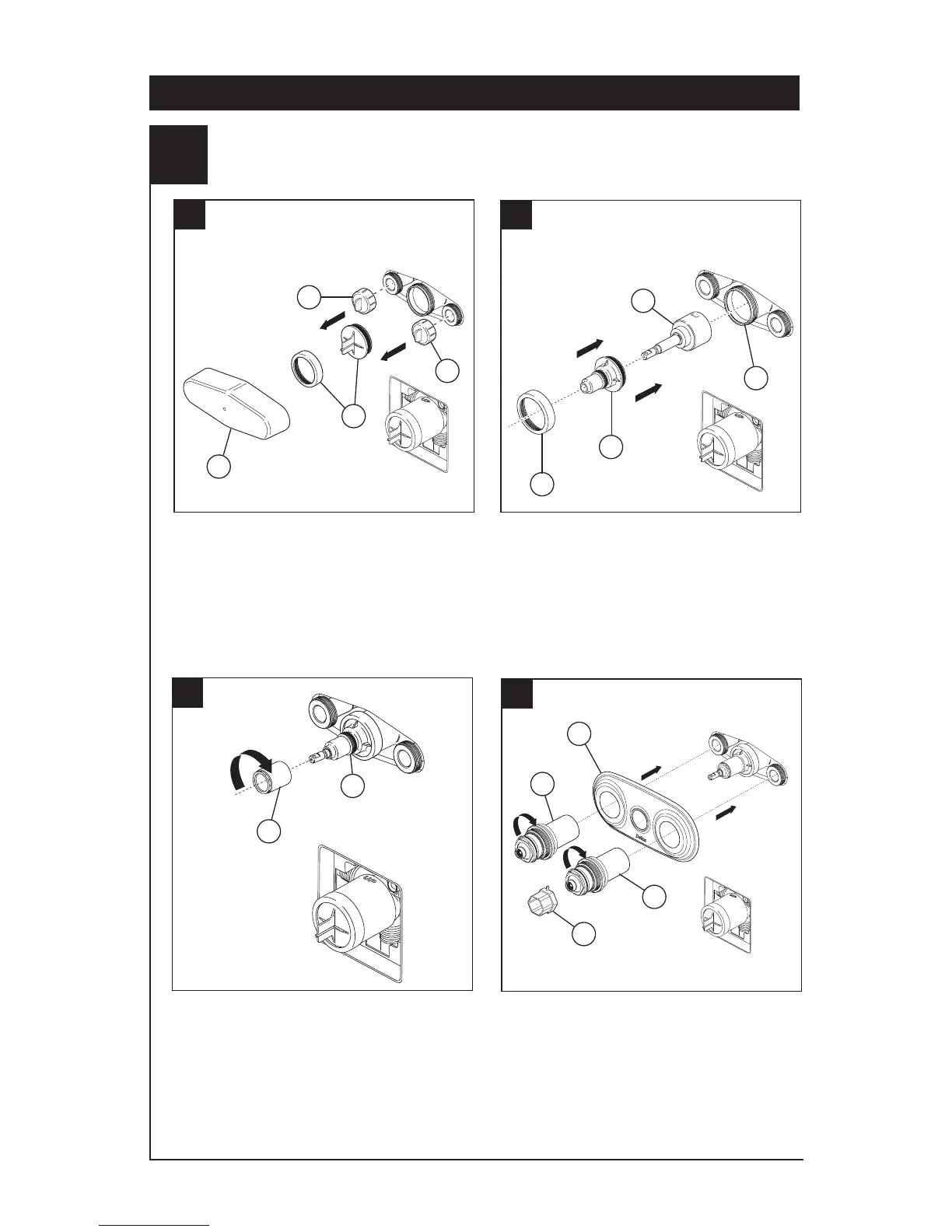

Jet Module Cartridge and Trim Installation
Turn off water supplies. Remove
plasterguard (1), test caps (2), bonnet nut
and test cap (3) from the body.
Install cartridge (1) into body (2). Slide
sleeve (3) over cartridge stem and onto body.
Secure with bonnet (4). Ensure bonnet is
tightened securely.
4
18 Series Installation - Separate Units
A.
B.
2
2
3
1
2
4
3
Thread trim sleeve (1) onto threaded sleeve (2).
Tighten securely with wrench.
C.
2
1
Place the oval escutcheon (1) over the jet
body module. Thread the jet sleeve
assemblies (2) onto the jet body module. Use
wrench (3) to tighten the sleeve assemblies.
CAUTION: DO NOT OVERTIGHTEN.
TIGHTEN UNTIL THE ESCUTCHEON IS
FLAT AGAINST THE WALL.
D.
3
1
2
1
2
To Next Page
