Delta M Series User Manual

16

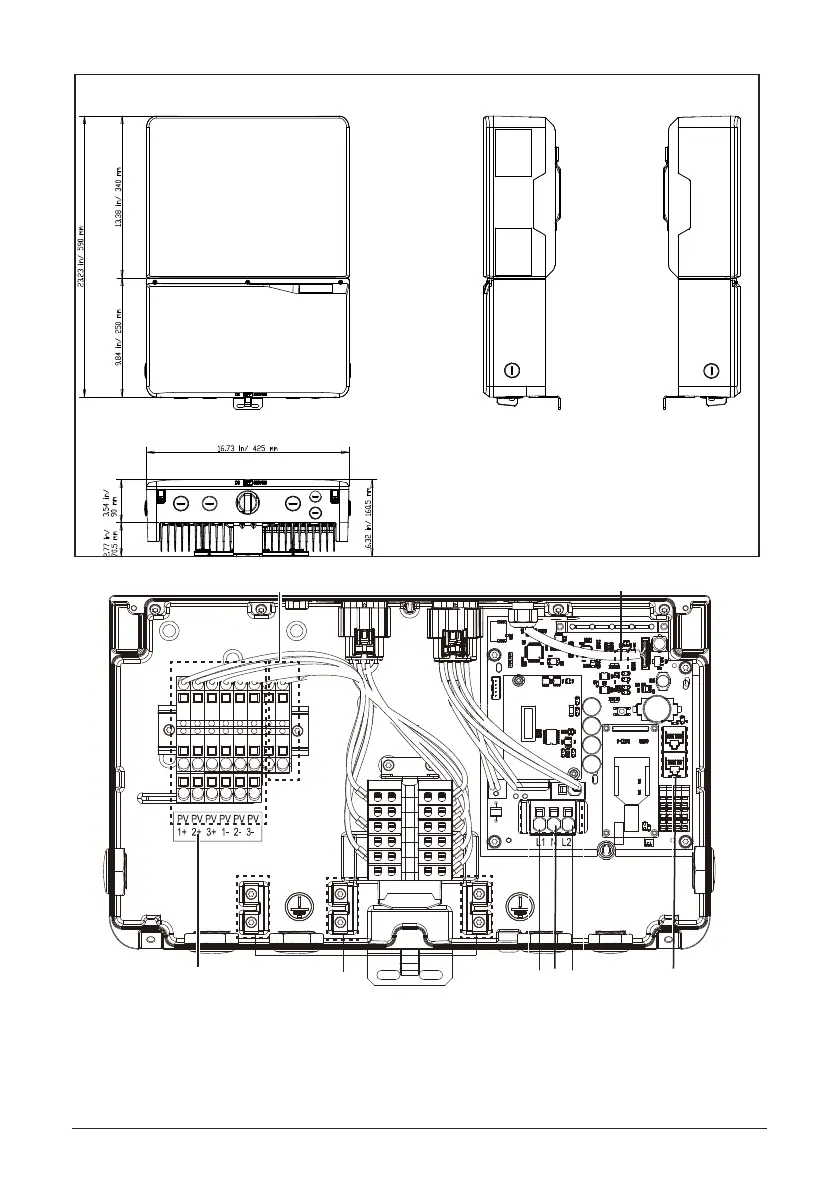

Figure 10: Dimensions of M Series inverters
(2)
(4)
(7)
(3)
(1)
(1) BAT Fuse Holders
(2) RS485 Termination
(3) PV terminals
(4) Grounding
(6)
(5) AC side L1
(6) AC side Netural
(7) AC side L2
(8) RS485 communication ports
(8)
(5)
Figure 11: Wiring box of M series inverters

Delta M Series Specifications

General

Protection	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Overload Capacity	150% for 60 seconds, 200% for 3 seconds
Communication	RS-485
Efficiency	98%
Cooling Method	Fan cooling
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Altitude	1000m
Humidity	5% to 95% (non-condensing)
