13

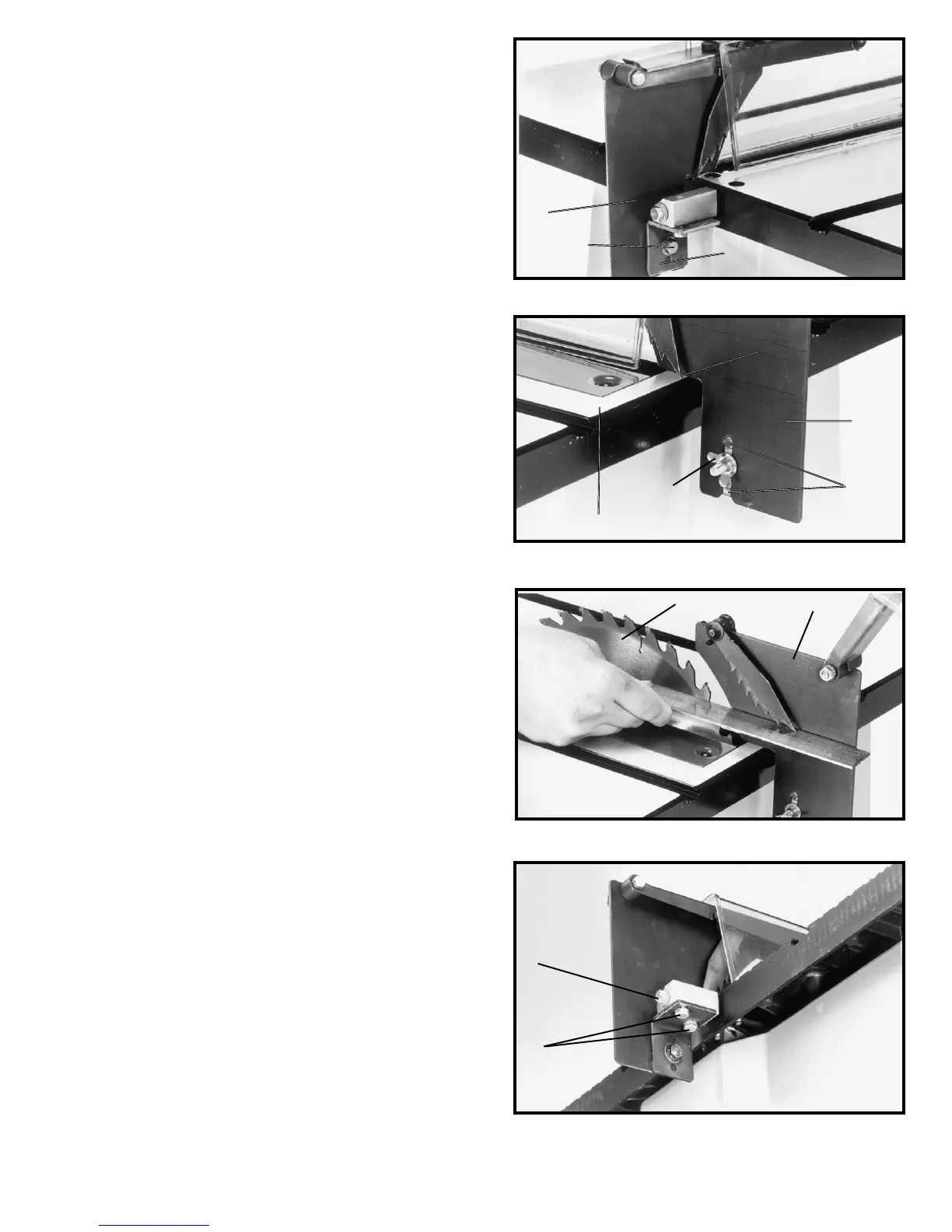

7. Assemble splitter (H) Fig. 14, to splitter support
bracket (B) as shown using M6x1x20mm hex head
screw (L), 1/4" external tooth washer, and 1/4" flat
washer.
8. Fasten splitter (H) Fig. 15, to splitter support bracket
using 1/4" flat washer, 1/4" external tooth lockwasher
and M6 wing nut (M). NOTE: Before tightening wing nut
(M) make certain there is at least a 1/8" gap between the
bottom edge of splitter (N) and top surface of table (P)
and that protrusion “pins” (K) Fig. 15, are inside the slot
of splitter assembly (H).
9. Using a straight edge, check to see if the splitter (H)
Fig. 16, is aligned with the saw blade (R). If an
adjustment is necessary, the splitter (H) can be moved
left or right and rotated.
10. When you are certain the splitter is properly aligned
with the saw blade, tighten the two screws (C) Fig. 17,
that fasten the splitter support bracket to the splitter
bracket and tighten screw (G) that fastens the splitter
bracket to the pivot rod.
Fig. 14
Fig. 15
Fig. 16
Fig. 17
C
G
R
H
P
M
K
H
N
H
L
B
