17
OUTFEED SUPPORT

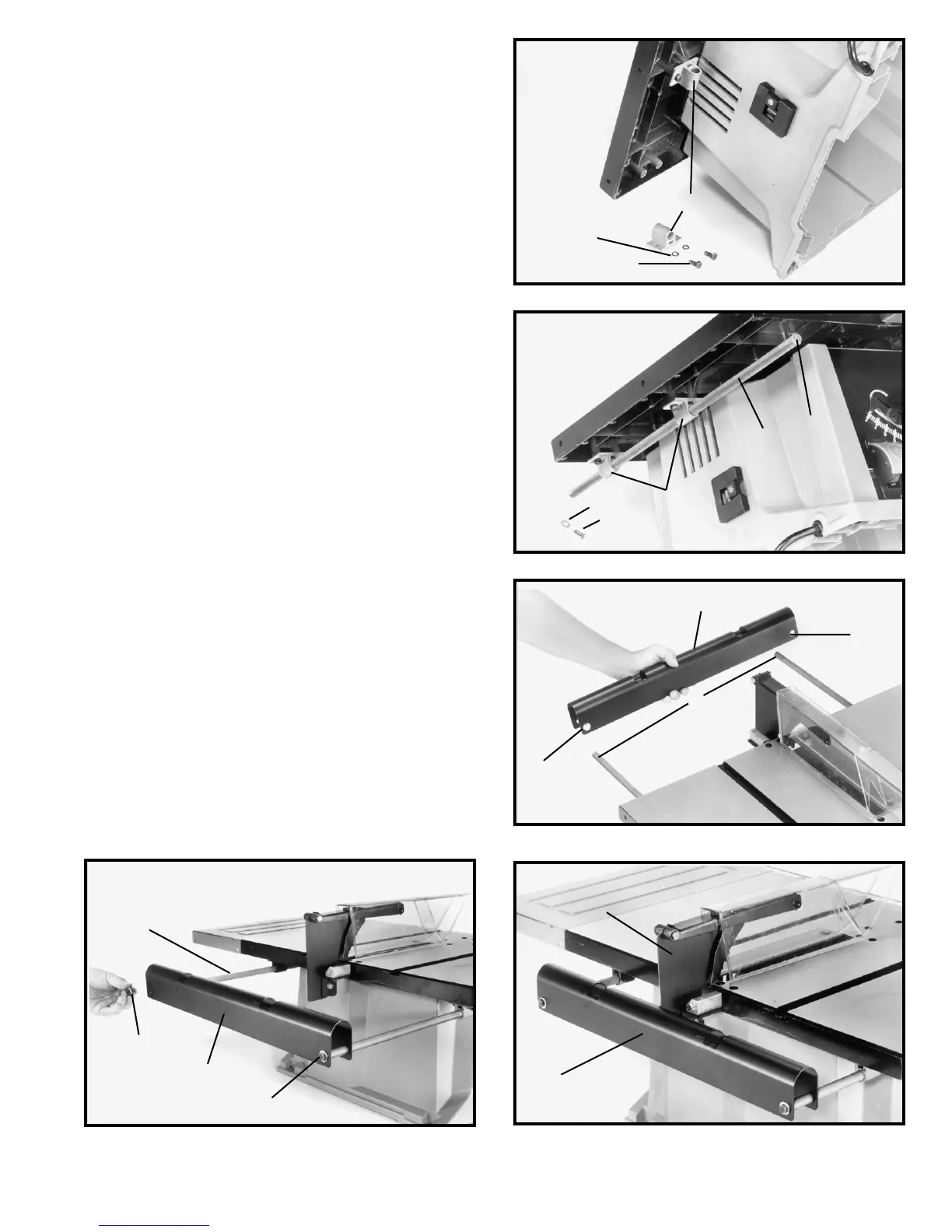

1. Loosely fasten both brackets (A) Fig. 31, to the
bottom left side of the saw table as shown, using two
M6x1x15mm hex head screws (B) and M6.1
lockwashers (C). Assemble two remaining brackets to
the bottom right side of saw table in the same manner.
2. Insert rod (D) Fig. 32, through holes in brackets (A) as
shown. Then thread and tighten one 1/4-20x1/2" hex
head screw (E) and 1/4" flat washer (F) into the front end
of rod (D) as shown at (G). Assemble remaining rod to
the opposite side of saw in the same manner.
3. Insert rods (D) Fig. 33, into larger holes (H) in outfeed
support (J) as shown.
4. Secure outfeed support (J) Fig. 34, to rods (D) using
two 1/4-20x1/2" hex head screws and 1/4" flat washers
(K) as shown.
5. Push entire outfeed support assembly (J) Fig. 35, in
until it contacts splitter/guard assembly (L) as shown.
Then tighten all outfeed support mounting hardware.
Fig. 34
Fig. 31
Fig. 32
Fig. 33
Fig. 35
A
B
C
F
E
D
G
A
J
H
H
D
D
K
J
K
L
J
