Delta RPI M6A Operation And Installation Manual

EPO, digital input function and DRMs can be parallel connection in
multi-inverter operation, refer to Figure 4-9 for the connection.
SW
INV_1
VCC
EPO
K1 (0% Power)
K2 (30% Power)
K3 (60% Power)
K4 (100% Power)
INV_2
VCC
EPO
K1 (0% Power)
K2 (30% Power)
K3 (60% Power)
K4 (100% Power)
INV_N
VCC
EPO
K1 (0% Power)
K2 (30% Power)
K3 (60% Power)
K4 (100% Power)
EPO Button

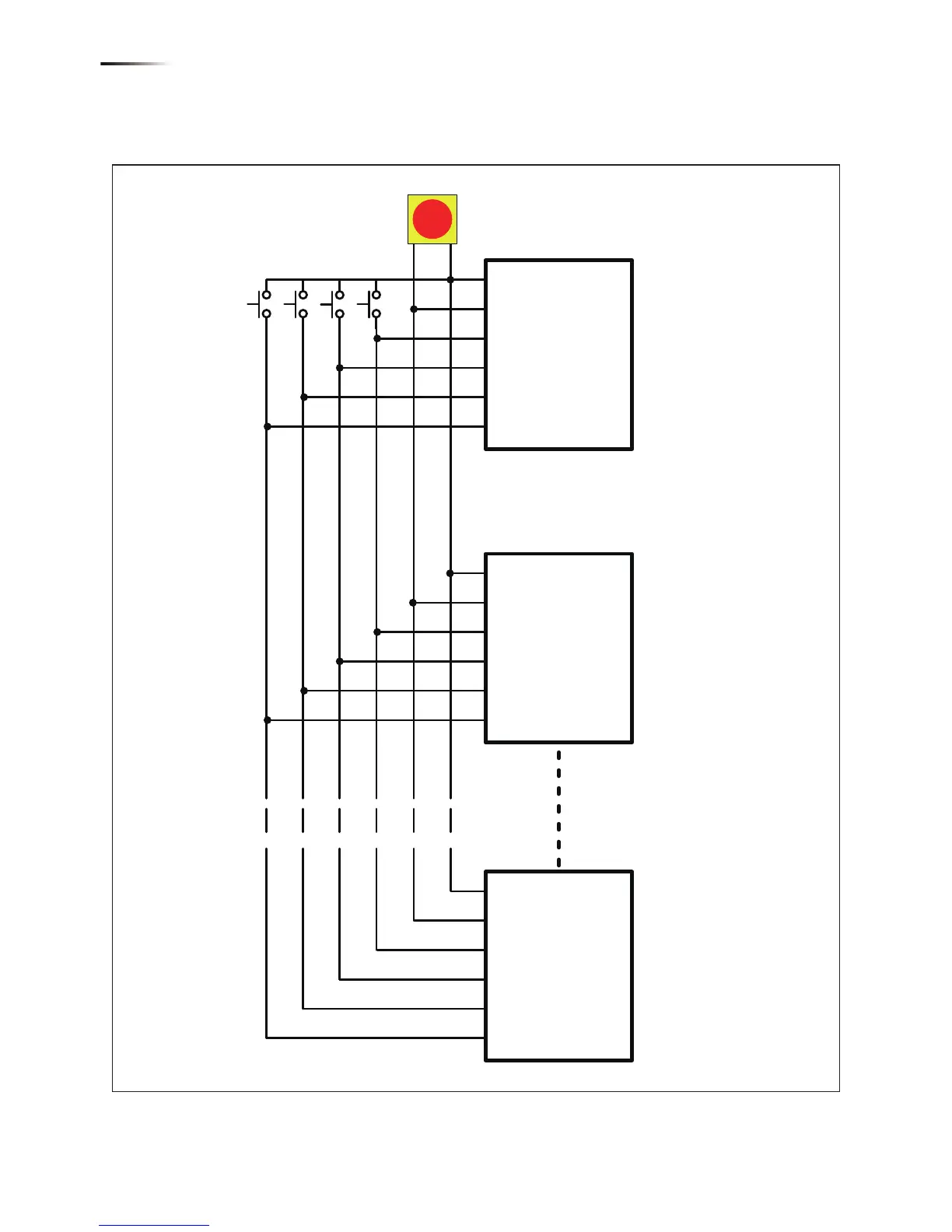

Figure 4-9 : EPO & Digital input & DRMs parallel connection
