TP70P Quick Start
If the users want to add an object to a page, they have to click an object type on the object toolbar, click where
they want to begin the selection of an area in the working area, hold down the left mouse button, and drag the
cross over the area that they want to select.
Af
ter the users add an

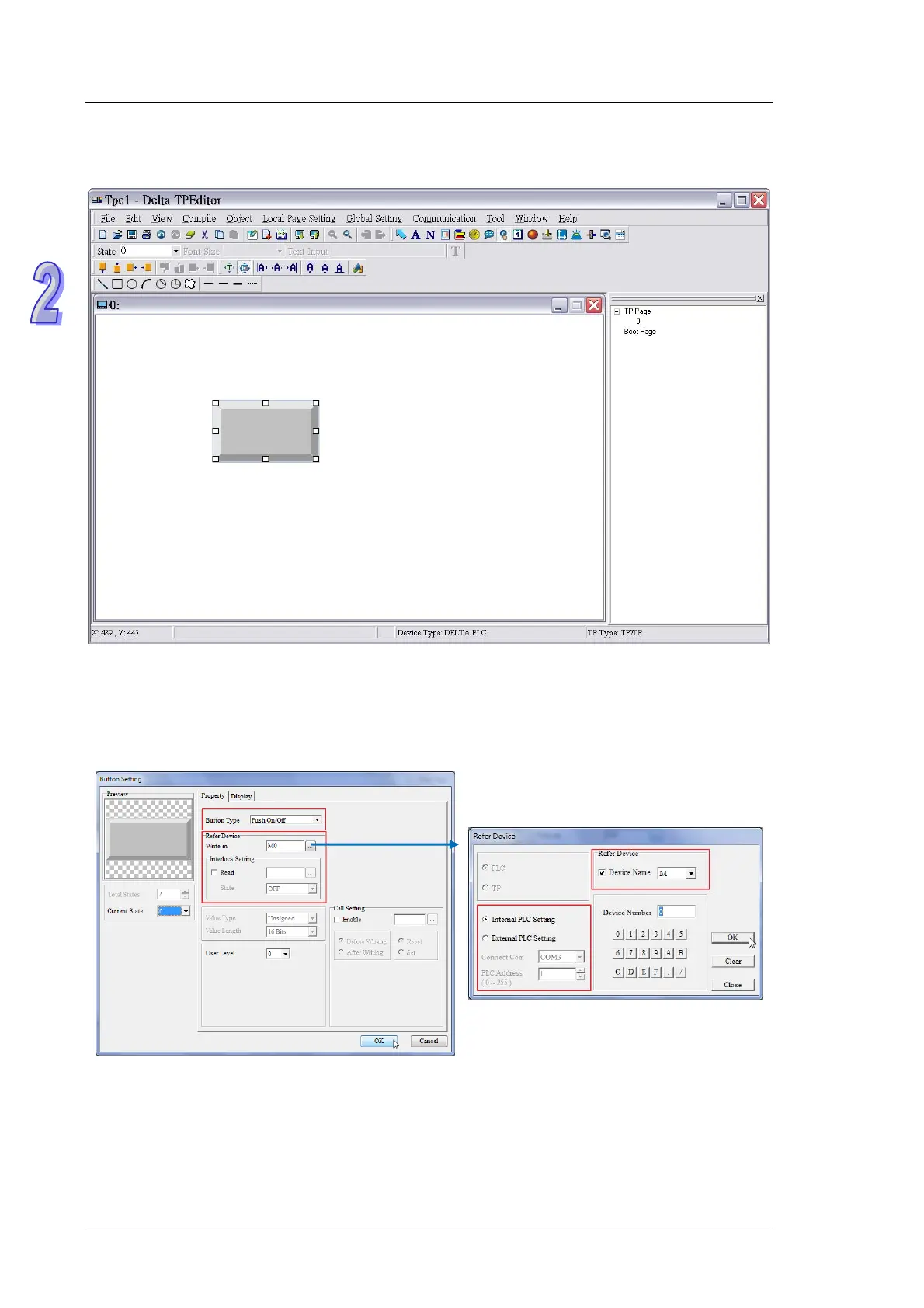

object, they have to set the parameters related to be object. After users double-click a
button in the working area, the
Button Setting
window will appear. In the example in this chapter, Y0 in TP70P
is used to control the forward rotation of an AC motor drive. If a button is pressed, M0 will be ON. If M0 is ON,
Y0 will be ON. If the button is pressed again, M0 will be OFF. Consequently, the button type selected in the
Button Type
drop-down list box is
Push On/Off
, and the
Internal PLC Setting
option button and M0 in the
Refer Device
window are selected.
