Digital Keypad Operating Modes & Programming steps
Pressing the
RUN
key after power on will cause the AC drive to operate at 60 Hz, which is the
factory default setting. Use the
STOP
key to halt operation. Refer to the Basic Wiring Diagram in
Chapter 2 for information on the wiring connection.

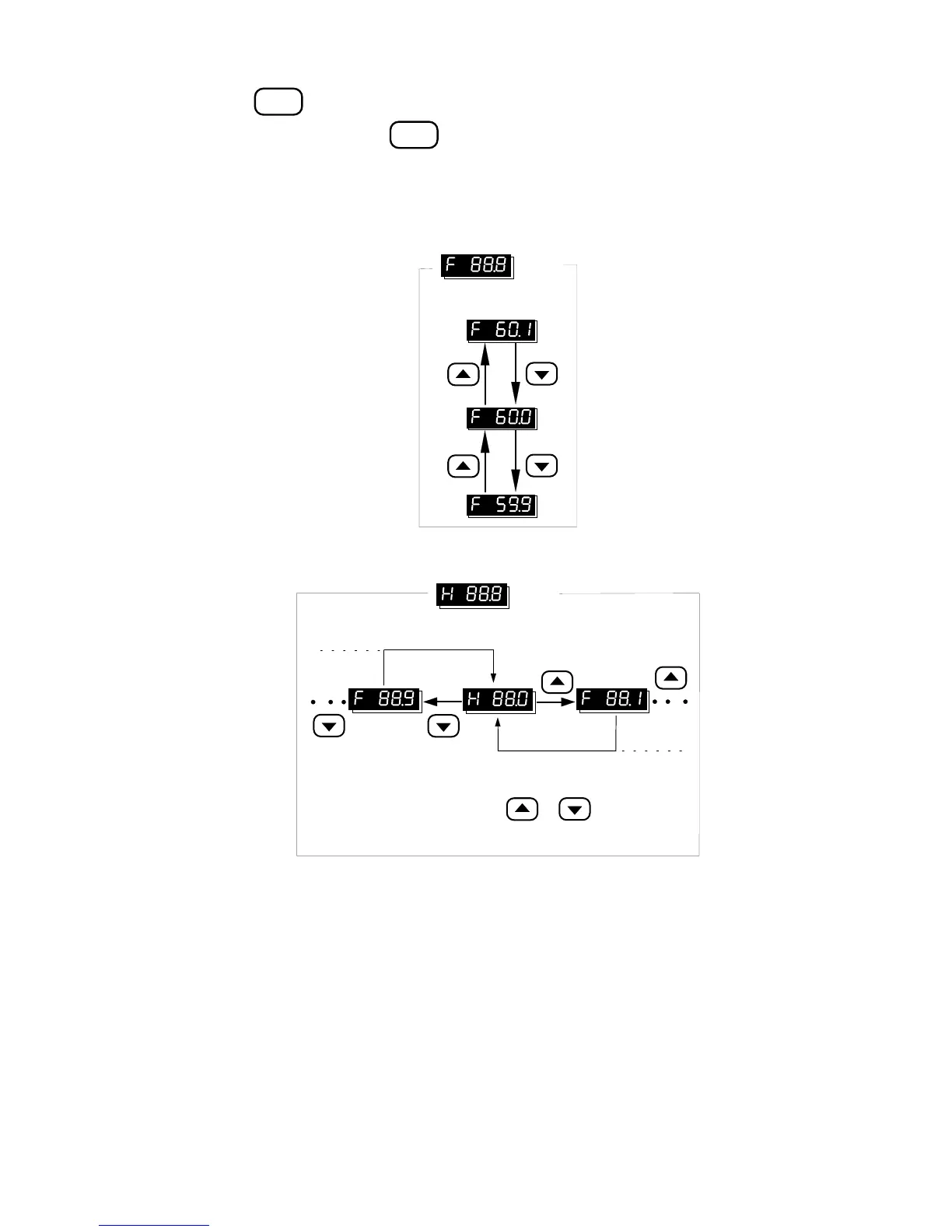

To change the operating frequency, proceed as follows:
The operating frequency may be changed in either the “STOP” or “RUN” mode.
MODE
MODE
Decrease the frequency
Increase the frequency
Display changes every time key is pressed.
or
