4

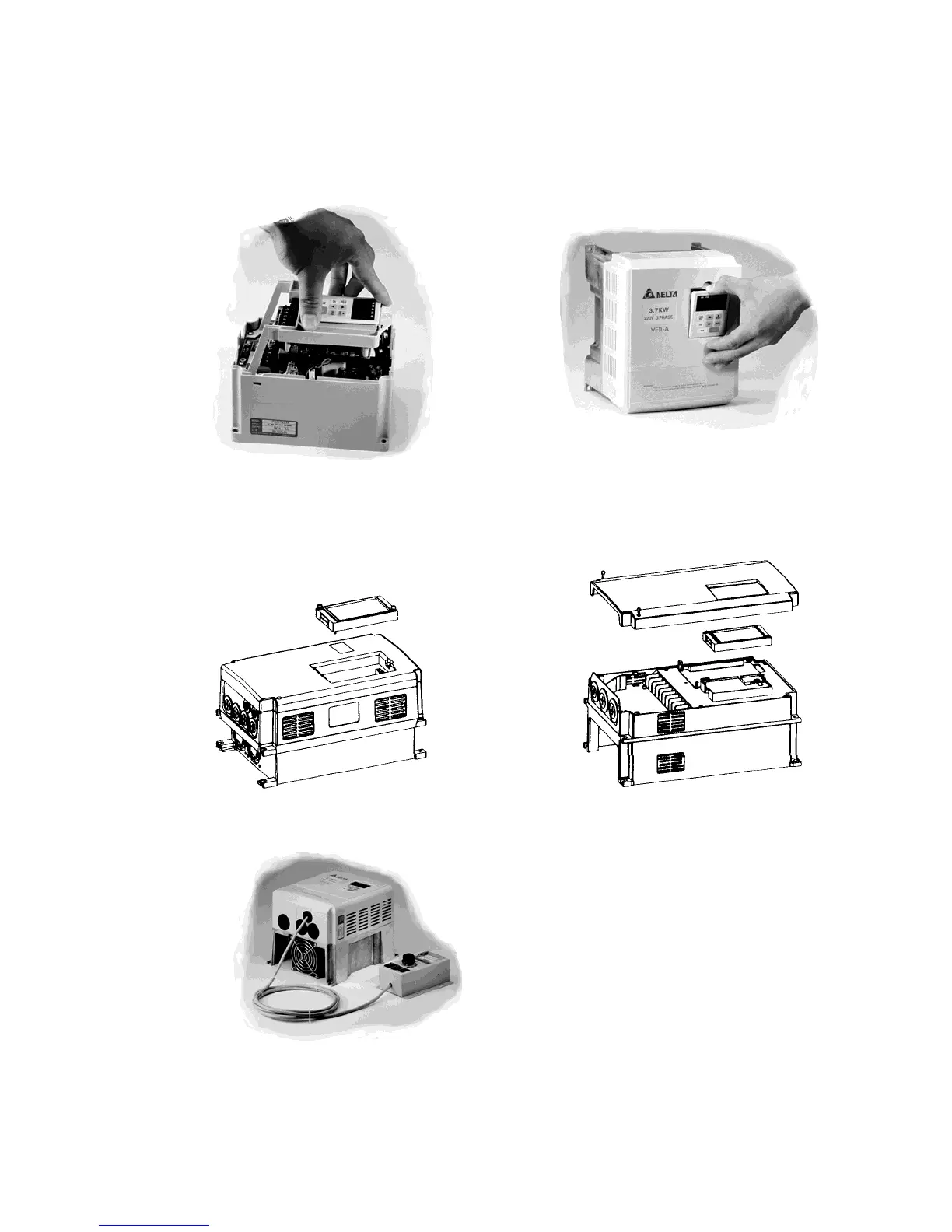

Removing the Digital Keypad
The digital keypad can be easily removed from the AC motor drive unit as shown
below.
♦0.75 - 1.5 KW (1-2HP) ♦2.2 - 3.7 KW (3-5HP)
♦5.5 KW - 22.0 KW The 7.5 thru 30 HP units have screws holding the digital
keypads in place. To remove the keypad, first remove the screws and then lift the
keypad out of the AC drive.
♦5.5 – 7.5 KW (7.5-10HP) ♦11.0 – 22.0 KW (15-30HP)
♦Installing the Optional Remote Control Unit (RC-01)
