Delta VFD040C43A-21 - Page 135

Chapter 7 Optional AccessoriesC2000 Plus
7-26
Figure 7-11
Unit: mm
AC Input Reactors
Delta part #
Dimensions

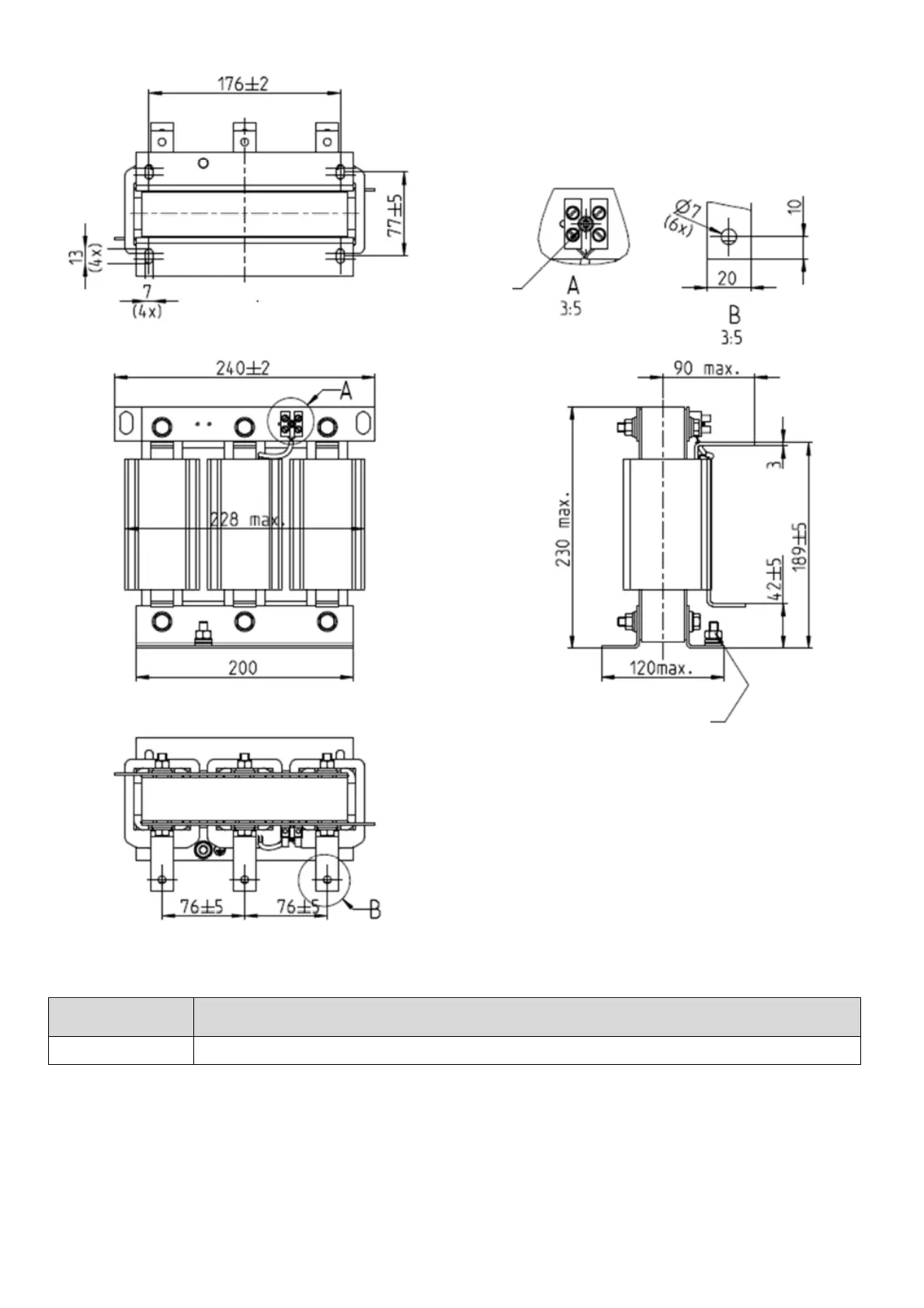

DR090AP141 Dimensions are as shown in the figures above.
Table 7-29
Terminals 4 mm
2
Torque: 8.2–10.2 kg-cm
/
(7.1–8.9 lb-in.) /
(0.8–1.0 Nm)
PE Screw M8 x 23
Torque: 58.2–64.3 kg-cm /
(50.5–55.8 lb-in.) /
(5.7–6.3 Nm)
