Delta VFD040C43A-21 - Page 136

Chapter 7 Optional AccessoriesC2000 Plus
7-27

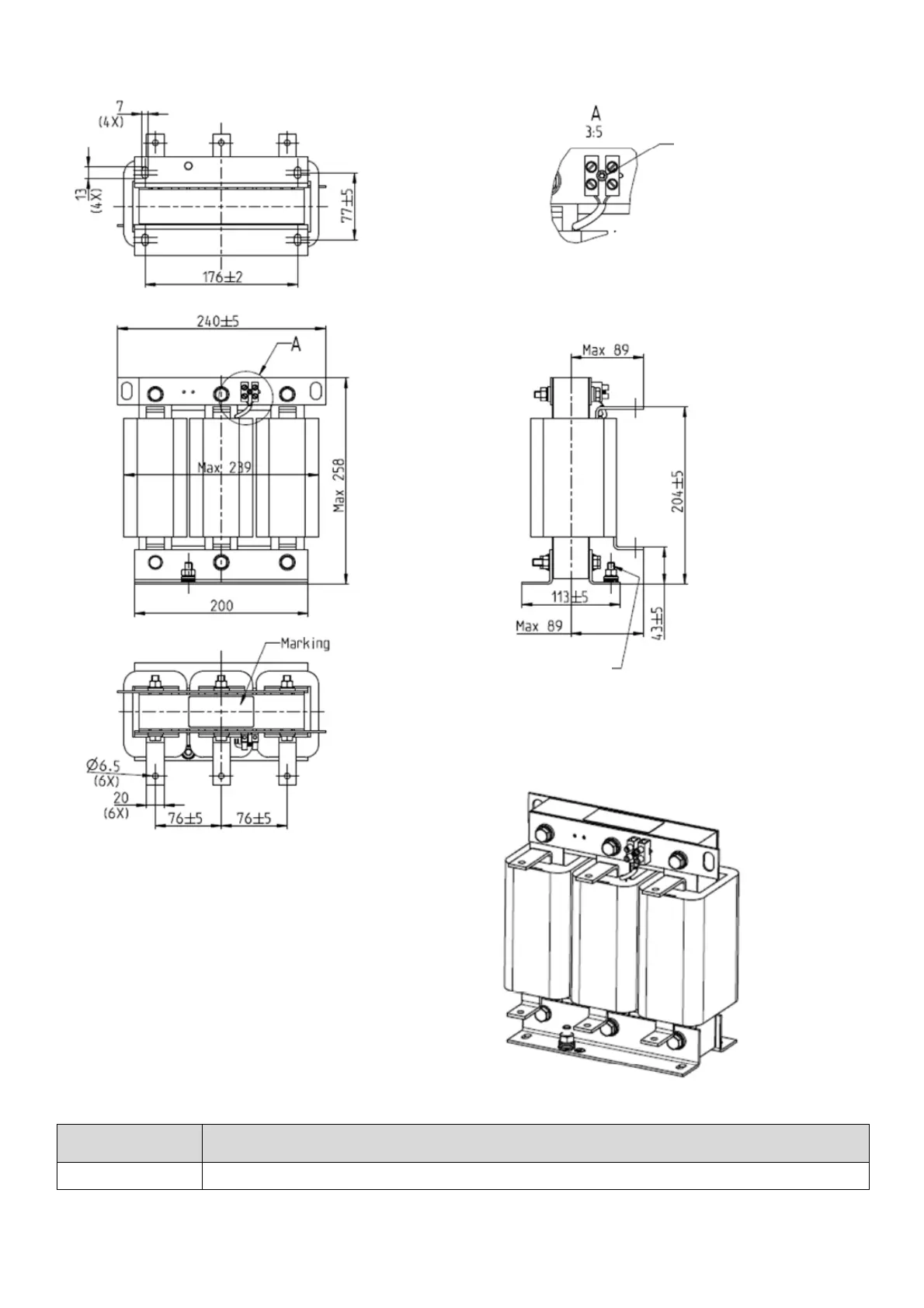

Figure 7-12
Unit: mm
AC Input Reactors
Delta part #
Dimensions
DR146AP087 Dimensions are as shown in the figures above.
Table 7-30
Terminals 4 mm
2
Torque: 6.1–8.2 kg-cm /
(5.3–7.1 lb-in.) /
(0.6–0.8 Nm)
PE Screw M8 x 23
Torque: 58.2–64.3 kg-cm /
(50.5–55.8 lb-in.) /
(5.7–6.3 Nm)
