Delta VFD040C43A-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-32

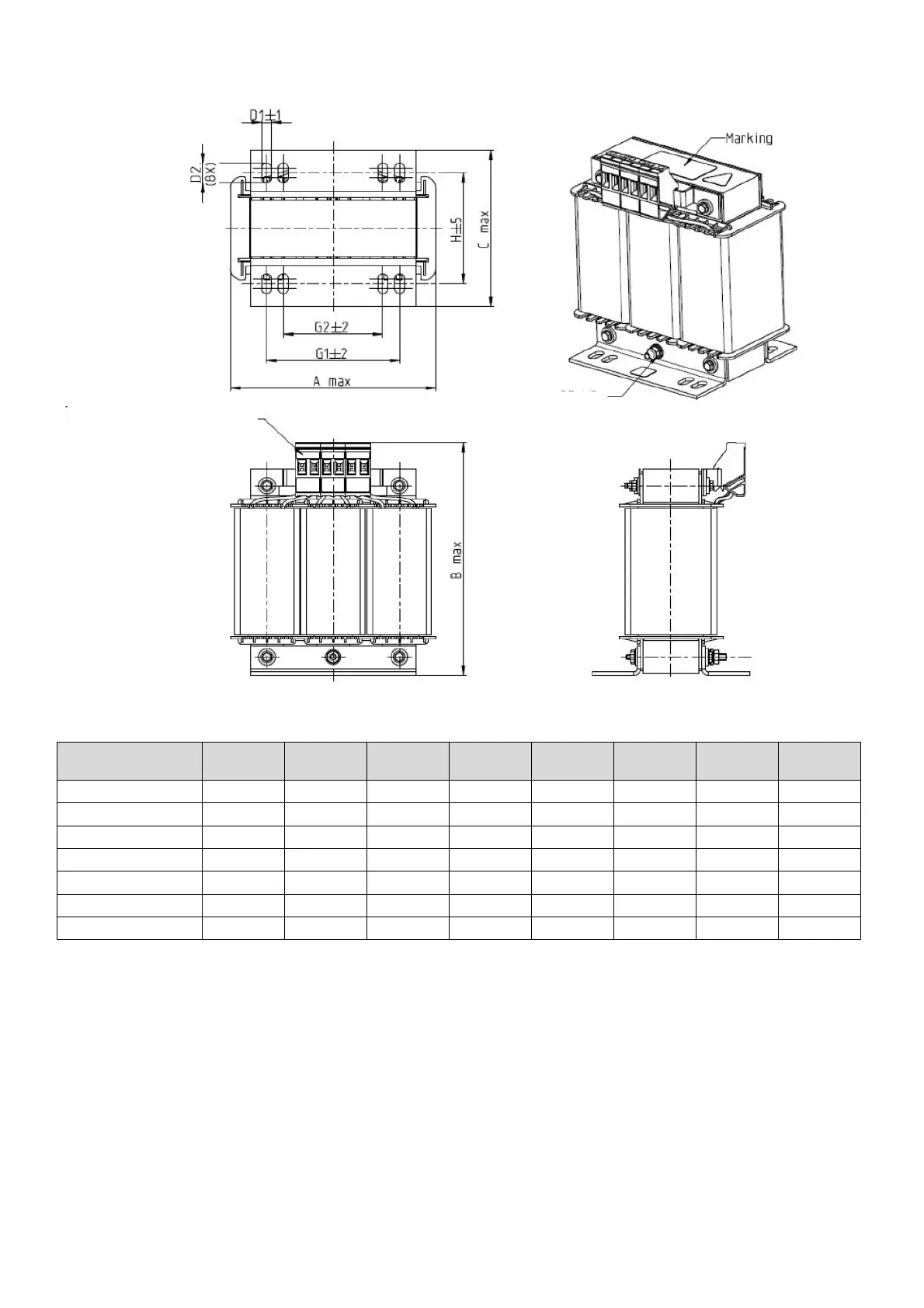

Figure 7-17
Unit: mm
AC Input Reactors
Delta part #
A B C D1*D2 H G1 G2 PE D
DR003A0810 100 125 65 6*9 43 60 40 M4
DR004A0607 100 125 65 6*9 43 60 40 M4
DR006A0405 130 135 95 6*12 60 80.5 60 M4
DR009A0270 160 160 105 6*12 75 107 75 M4
DR010A0231 160 160 115 6*12 90 107 75 M4
DR012A0202 160 160 115 6*12 90 107 75 M4
DR018A0117 160 160 115 6*12 90 107 75 M4
Table 7-35
Screw length
must not
interfere with
the mounting
holes
PE bol
t
Torque: 11.2–13.3 kg-cm /
(9.7–11.5 lb-in.) /
(1.1–1.3 Nm)
Torque: 6.1–8.2 kg-cm /
(5.3–7.1 lb-in.) /
(0.6–0.8 Nm)
