Delta VFD040C43A-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-33

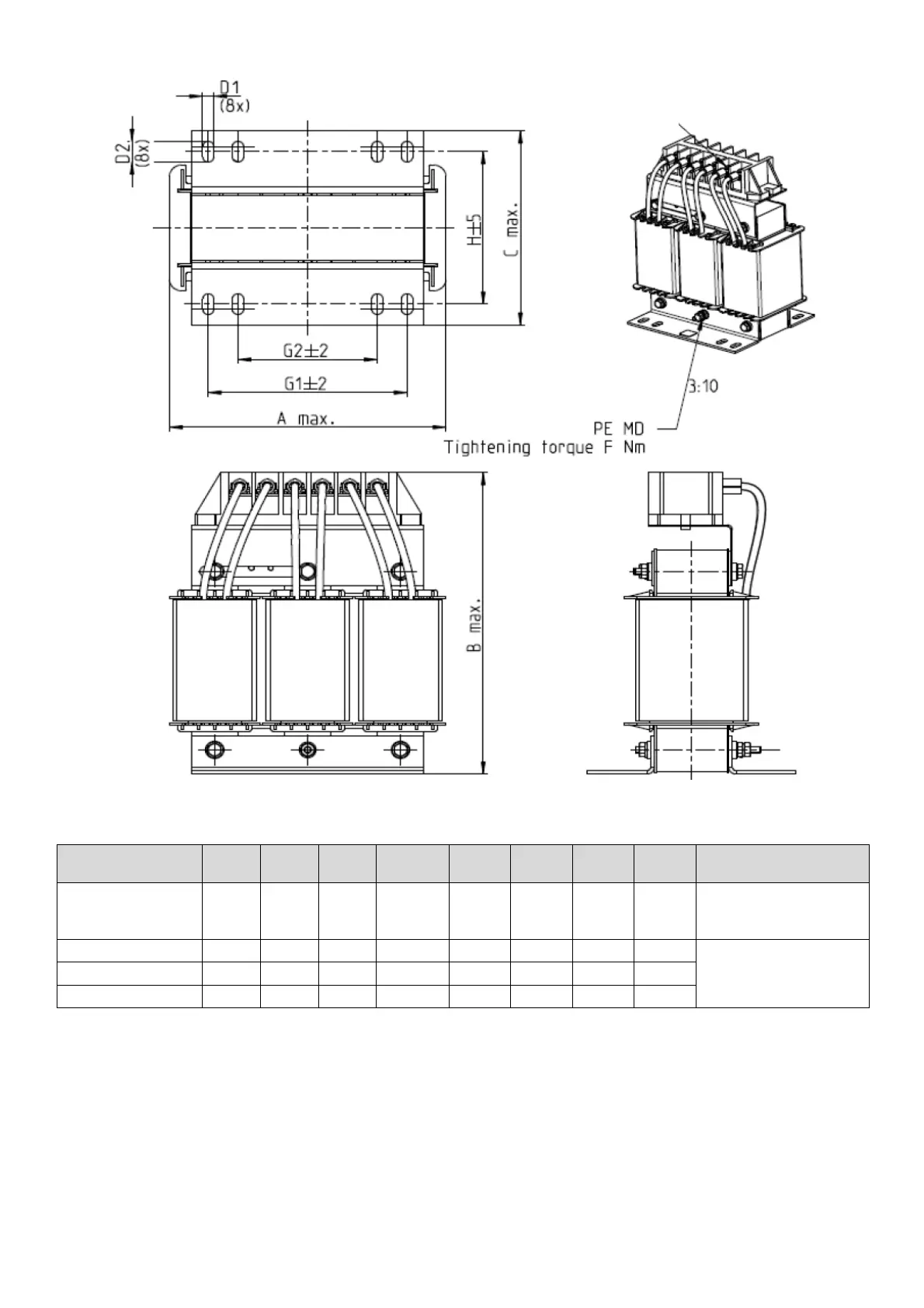

Figure 7-18
Unit: mm
AC Input Reactors
Delta part #
A B C D1*D2 H G1 G2 PE D
F
DR024AP881 160 175 115 6*12 90 107 75 M4
11.2–13.3 kg-cm /
(9.7–11.5 lb-in.) /
(1.1–1.3 Nm)
DR032AP660 195 200 145 6*12 115 122 85 M6
29.1–32.1 kg-cm /
(25.3–27.9 lb-in.) /
(2.85–3.15 Nm)
DR038AP639 190 200 145 6*12 115 122 85 M6
DR045AP541 190 200 145 6*12 115 122 85 M6
Table 7-36
Installing Screw M5
Screw length
must not
interfere with
the mounting
holes
